Valcom VE8048A Manual

INTRODUCTION

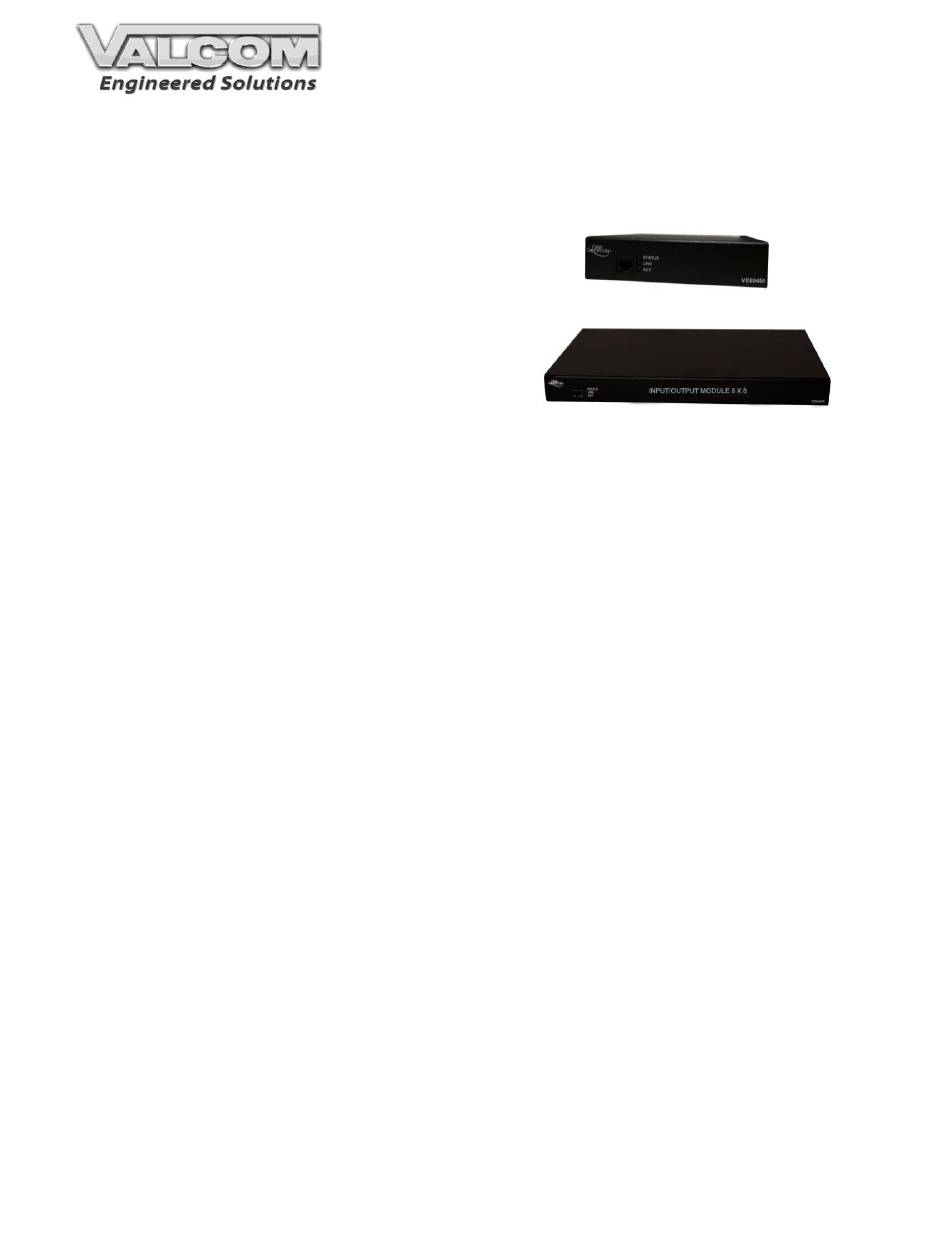

The VE8048A/VE8048AR IP Input/Output Module
allows operation of eight (8) contact closures
which are software programmable as either
Form A or form B. Eight (8) contact closure
activated inputs provide for various programmable
relay functions. The VE8048A/VE8048AR allows
initiation of Application Server events over an IP
based LAN/WAN. Multiple VE8048A/VE8048AR
may be deployed on the same network. The
VE8048A is designed for wall or table placement.
The VE8048AR is made specifically for rack
mounting (1U).
SPECIFICATIONS
Features

8 Relay Contacts - Programmable as either
Form A or Form B

8 Contact Closure Inputs

RJ-45 For Network Connection

Front Panel Activity LED

Removable Screw Terminal Connector
Provided For Input And Relay Interface

2.5mm Jack For DC Power (optional)

Power Over Ethernet (PoE) 802.3af
Compatible

No Server Required

1 to 11 Digit Dial Plans

Easy Windows Based Setup
Dimensions/Weight (VE8048A)

1.75" H x 6.75" W x 9.5" D
(4.45cm H x 17.15cm W x 24.13cm D)

Weight: 1.75 lbs. (0.80 kg)
Dimensions/Weight (VE8048AR)

1.75" H x 16.50" W x 9.50" D
(4.45cm H x 41.91cm W x 24.13cm D)

Weight: 7.80 lbs. (3.54 kg)
Nominal Specifications

Input Impedance:

Relay Current:

Protocols: DHCP, IGMP v3, UDP, TCP,
VE8048A/VE8048AR
IP Input/Output Module
10k Ohms
1 AMP @ 24VDC
HTTP, Telnet, FTP
1
VE8048A
VE8048AR
Nominal Power Requirements
Via Back Panel Barrel Connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
Environment
Temperature: +32 to +104°F (0 to +40°C)
Humidity: 0 to 85% Non-Precipitating
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
.
intra-building
Precautionary Designations
:

WARNING To Reduce The Risk Of Fire
Or Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.

AVERTISSEMENT: Afin de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le système à
la pluie ou à l'humidité.

Apparatus shall not be exposed to
dripping or splashing and no objects
filled with liquids, such as vases, shall be
placed on the apparatus.

L'appareil ne doit pas être exposé à des
égouttements et éclaboussures et
aucun Objet Rempli de liquide, comme
vase, ne doit être placé sur l'appareil.
Issue 4
24VDC
325mA
Class 3
947484
