Summary of Contents for Furuno FCV-292

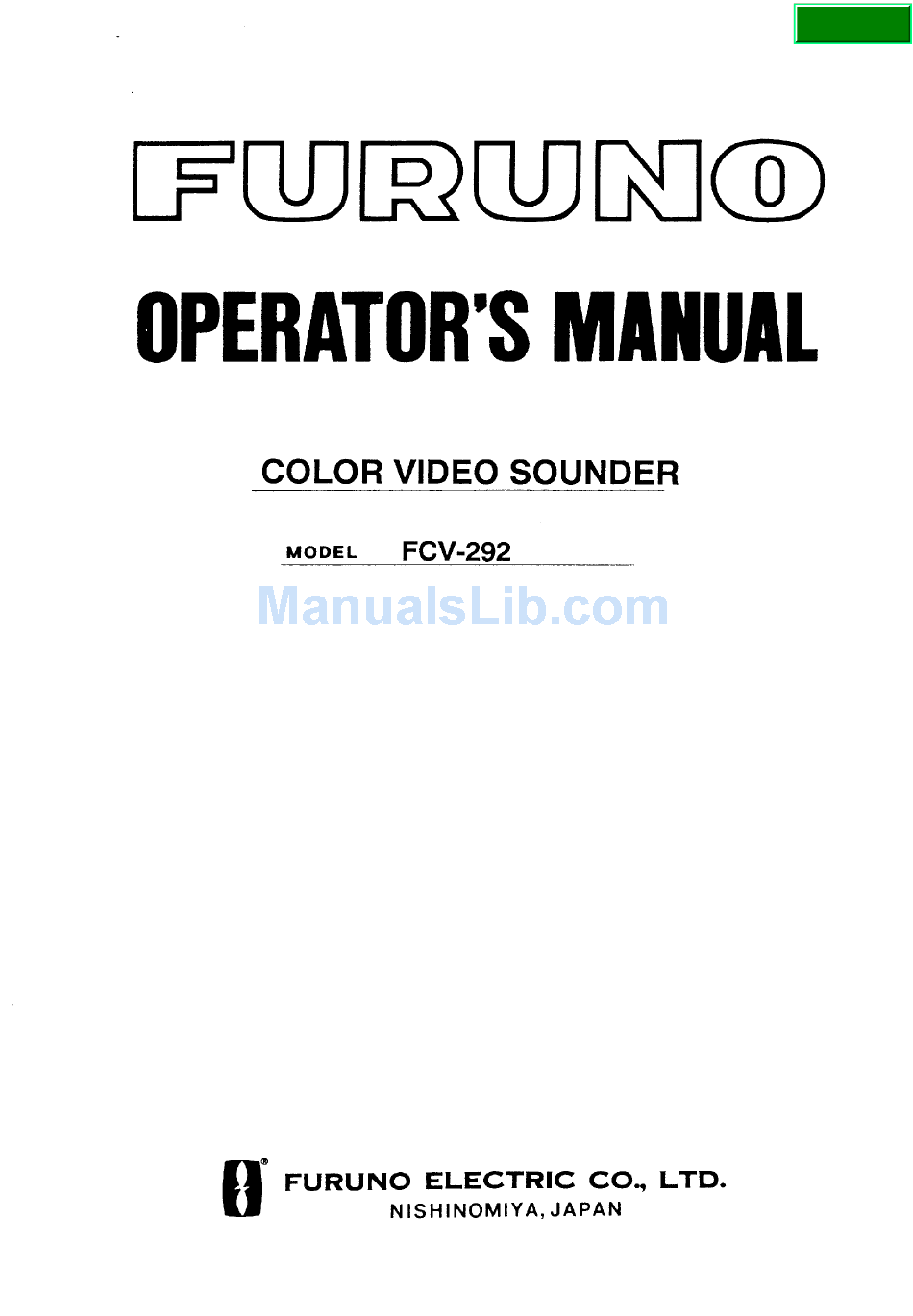

- Page 1 Back...
- Page 2 Printed in Japan Printed in Japan All rights reserved. All rights reserved. PUB.No. OME-23520 PUB.No. OME-23520 ( ( TENI TENI ) ) FCV-292 FCV-292 Your Local Agent/Dealer Your Local Agent/Dealer FIRST EDITION : FIRST EDITION : OCT. OCT. 1994 1994 : : DEC.
- Page 4 SAFETY INFORMATION FOR THE OPERATOR WARNING Do not open the cover of the equipment. This equipment uses high voltage electricity which can shock, burn, or cause death. Only qualified personnel should work inside the equipment. Do not dissasemble or modify the equipment.
- Page 6 SAFETY INFORMATION FOR THE INSTALLER WARNING Only qualified personnel should work inside the equipment. This equipment uses high voltage electricity which can shock, burn, or cause death. Turn off the power at the ship's mains switchboard before beginning the installation. Post a warning sign near the switchboard to ensure that the power will not be applied while the equipment is being installed.
- Page 9 A Word To Furuno FCV-292 Owners:... i Features ... i 1.HANDLING PRECAUTION ... 1 2.SYSTEM CONFIGURATION... 2 3.PRINCIPLE OF OPERATION ... 3 4.OPERATING CONTROLS ... 4 5.BASIC OPERATION ... 6 Power ON/OFF and Brilliance Control... 6 Demonstration Picture... 6 Presentation Mode Selection ... 6 Zoom Picture Selection...
- Page 10 10.MAINTENANCE ... 29 Fuse Replacement ...29 Cleaning ...29 Maintenance of Transducer ...30 11.TROUBLESHOOTING ... 31 Basic Troubleshooting ...31 Diagnostic Self-Check ...33 Transducer Check ...34 Speed/Temperature Sensor (Option) Check ...34 12.INSTALLATION ... 35 Display Unit Installation ...35 Transducer Installation ...37 Transducer Preparation and Painting ...37 Speed/Temperature Sensor...38 Cable Connections ...39 13.SYSTEM MENU SETTING...
- Page 64 4.Transducer 50BL-12/50BL-24H When using the transducer 50BL-12/50BL-24H, see this section. 50BL-12 code no.: 000-015-013 50BL-24H code no.: 000-015-040 Transducer, thru-hull pipe and tank list Frequency Transducer (kHz) (Code No.) 50BL-12 50BL-24H 50/200 50BL-12/200B-8B 28/50 28F-24H/50BL-24H 50/88 50BL-24H/88F-126H 50/200 50BL-24H/200B-12H Setting For the locations of JP10 and JP11, see page A-1.
- Page 65 5.New BLT Transducers A new type BLT transducer (Bolt-clamp Langevin Transducer) has been developed for this echo sounder. The BLT transducer has large bandwidth, good sound efficiency, compact structure and is reinforced for protection against slamming. 28BL-6HR code no.: 000-015-081 28BL-12HR code no.: 000-015-082 38BL-9HR code no.: 000-015-083 38BL-15HR code no.: 000-015-092...
- Page 66 NEW BLT TRANSDUCERS 38/88 38BL-15HR/88F-126H 50/88 50BL-24HR/88-126H 28/200 28BL-12HR/200B-12H 38/200 38BL-15HR/200B-12H 50/200 50BL-24HR/200B-12H 28/150 28BL-12HR/150B-12H 38/150 38BL-15HR/150-12H 38/150 50BL-24HR/156-12H T-682 TWB-6000 (2) Steel (000-015-851) (000-015-207) T-682F TRB-1100 (2) (000-015-852) (000-015-219) T-682 TWB-6000 (2) Steel (000-015-851) (000-015-207) T-682F TRB-1100 (2) (000-015-852) (000-015-219) T-683 TWB-6000 (2)
- Page 67 Setting For the locations of JP10 and JP11, see page A-1. Board Frequency (kHz) 02P6204 MAIN Board Frequency (kHz) 28/50 02P6204 38/50 MAIN 50/88 50/200 Output (kW) Transducer 28BL-6HR 28BL-12HR 38BL-9HR 38BL-15HR 50BL-12HR 50BL-24HR NEW BLT TRANSDUCERS JP10 and JP11 setting...
- Page 69 FUSE POWER 7A: 12V MJ-A3SPFD 3A: 24/32V IV-2.0SQ TX-H NCS-254P 送受波器 XDCR NOTE *1: SHIPYARD SUPPLY. *2: FITTED AT FACTORY. *3: ONLY FOR FCV-292. TITLE FCV-291/292 名称 カラー魚群探知機 相互結線図 NAME COLOR VIDEO SOUNDER INTERCONNECTION DIAGRAM ３ 航法装置 NAV AID 船速・水温センサー...
