  • Page 1 All manuals and user guides at all-guides.com...

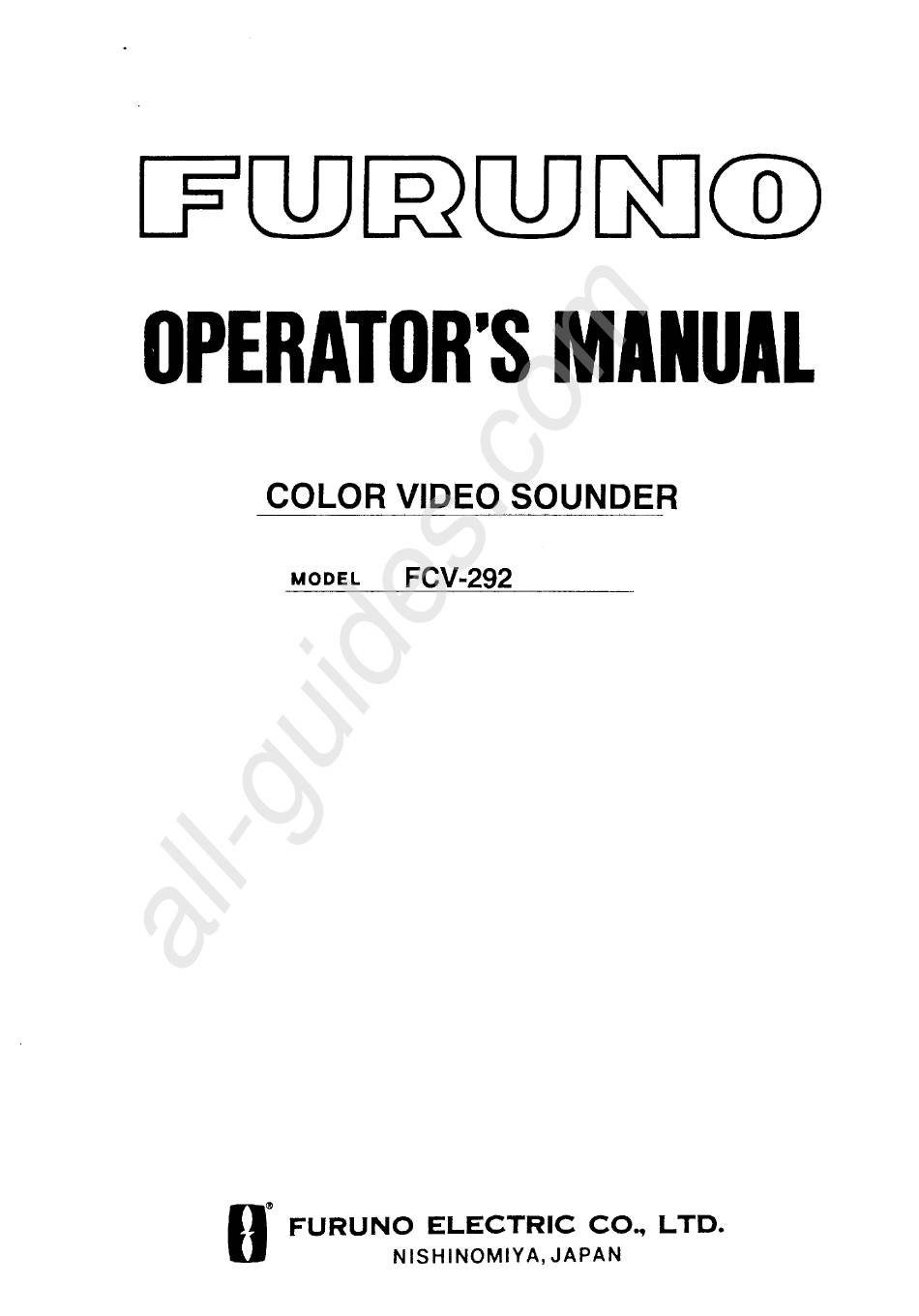

  • Page 2 *00080637800* *00080637800* *00080637800* *00080637800* ( ( TENI TENI ) ) FCV-292 FCV-292 * 0 0 0 8 0 6 3 7 8 0 0 * * 0 0 0 8 0 6 3 7 8 0 0 * *OME23520L10* *OME23520L10*...
  • Page 3 All manuals and user guides at all-guides.com...

  • Page 4: Safety Information For The Operator

    All manuals and user guides at all-guides.com SAFETY INFORMATION FOR THE OPERATOR WARNING CAUTION Do not open the cover of Do not place liquid-filled containers the equipment. on the top of the equipment. This equipment uses high voltage Fire or electrical shock can result if a liquid electricity which can shock, burn, spills into the equipment.
  • Page 5 All manuals and user guides at all-guides.com...

  • Page 6: Safety Information For The Installer

    All manuals and user guides at all-guides.com SAFETY INFORMATION FOR THE INSTALLER WARNING CAUTION Only qualified personnel Ground the equipment to should work inside the prevent electrical shock and equipment. mutual interference. This equipment uses high voltage Ungrounded equipment can give electricity which can shock, burn, off or receive electro-magnetic or cause death.
  • Page 7 All manuals and user guides at all-guides.com...
  • Page 8 All manuals and user guides at all-guides.com...
  • Page 9 All manuals and user guides at all-guides.com Table of Contents A Word To Furuno FCV-292 Owners:..............i Features ..........................i 1.HANDLING PRECAUTION ................1 2.SYSTEM CONFIGURATION................2 3.PRINCIPLE OF OPERATION ................3 4.OPERATING CONTROLS ................. 4 5.BASIC OPERATION ..................6 Power ON/OFF and Brilliance Control...................
  • Page 10 All manuals and user guides at all-guides.com 10.MAINTENANCE ..................... 29 Fuse Replacement ......................29 Cleaning ..........................29 Maintenance of Transducer ....................30 11.TROUBLESHOOTING ................... 31 Basic Troubleshooting ......................31 Diagnostic Self-Check ......................33 Transducer Check .......................34 Speed/Temperature Sensor (Option) Check ................34 12.INSTALLATION ....................35 Display Unit Installation .......................35 Transducer Installation ......................37 Transducer Preparation and Painting ..................37 Speed/Temperature Sensor....................38...
  • Page 11 All manuals and user guides at all-guides.com...
  • Page 12 All manuals and user guides at all-guides.com...
  • Page 13 All manuals and user guides at all-guides.com...
  • Page 14 All manuals and user guides at all-guides.com...
  • Page 15 All manuals and user guides at all-guides.com...
  • Page 16 All manuals and user guides at all-guides.com...
  • Page 17 All manuals and user guides at all-guides.com...
  • Page 18 All manuals and user guides at all-guides.com...
  • Page 19 All manuals and user guides at all-guides.com...
  • Page 20 All manuals and user guides at all-guides.com...
  • Page 21 All manuals and user guides at all-guides.com...
  • Page 22 All manuals and user guides at all-guides.com...
  • Page 23 All manuals and user guides at all-guides.com...
  • Page 24 All manuals and user guides at all-guides.com...
  • Page 25 All manuals and user guides at all-guides.com...
  • Page 26 All manuals and user guides at all-guides.com...
  • Page 27 All manuals and user guides at all-guides.com...
  • Page 28 All manuals and user guides at all-guides.com...
  • Page 29 All manuals and user guides at all-guides.com...
  • Page 30 All manuals and user guides at all-guides.com...
  • Page 31 All manuals and user guides at all-guides.com...
  • Page 32 All manuals and user guides at all-guides.com...
  • Page 33 All manuals and user guides at all-guides.com...
  • Page 34 All manuals and user guides at all-guides.com...
  • Page 35 All manuals and user guides at all-guides.com...
  • Page 36 All manuals and user guides at all-guides.com...
  • Page 37 All manuals and user guides at all-guides.com...
  • Page 38 All manuals and user guides at all-guides.com...
  • Page 39 All manuals and user guides at all-guides.com...
  • Page 40 All manuals and user guides at all-guides.com...
  • Page 41 All manuals and user guides at all-guides.com...
  • Page 42 All manuals and user guides at all-guides.com...
  • Page 43 All manuals and user guides at all-guides.com...
  • Page 44 All manuals and user guides at all-guides.com...
  • Page 45 All manuals and user guides at all-guides.com...
  • Page 46 All manuals and user guides at all-guides.com...
  • Page 47 All manuals and user guides at all-guides.com...
  • Page 48 All manuals and user guides at all-guides.com...
  • Page 49 All manuals and user guides at all-guides.com...
  • Page 50 All manuals and user guides at all-guides.com...
  • Page 51 All manuals and user guides at all-guides.com...
  • Page 52 All manuals and user guides at all-guides.com...
  • Page 53 All manuals and user guides at all-guides.com...
  • Page 54 All manuals and user guides at all-guides.com...
  • Page 55 All manuals and user guides at all-guides.com...
  • Page 56 All manuals and user guides at all-guides.com...
  • Page 57 All manuals and user guides at all-guides.com...
  • Page 58 All manuals and user guides at all-guides.com...
  • Page 59 All manuals and user guides at all-guides.com...
  • Page 60 All manuals and user guides at all-guides.com...
  • Page 61 All manuals and user guides at all-guides.com...
  • Page 62 All manuals and user guides at all-guides.com...
  • Page 63 All manuals and user guides at all-guides.com...
  • Page 64 All manuals and user guides at all-guides.com 4.Transducer 50BL-12/50BL-24H When using the transducer 50BL-12/50BL-24H, see this section. 50BL-12 code no.: 000-015-013 50BL-24H code no.: 000-015-040 Transducer, thru-hull pipe and tank list Frequency Transducer Hull Tank Fasten inside Fasten outside (kHz) (Code No.) Material (Code No.)
  • Page 65 All manuals and user guides at all-guides.com 5.New BLT Transducers A new type BLT transducer (Bolt-clamp Langevin Transducer) has been developed for this echo sounder. The BLT transducer has large bandwidth, good sound efficiency, compact structure and is reinforced for protection against slamming. 28BL-6HR code no.: 000-015-081 28BL-12HR code no.: 000-015-082 38BL-9HR code no.: 000-015-083...
  • Page 66 All manuals and user guides at all-guides.com NEW BLT TRANSDUCERS T-682 TWB-6000 (2) TFB-7000 (2) Steel (000-015-851) (000-015-207) (000-015-209) 38/88 38BL-15HR/88F-126H T-682F TRB-1100 (2) (000-015-852) (000-015-219) T-682 TWB-6000 (2) TFB-7000 (2) Steel (000-015-851) (000-015-207) (000-015-209) 50/88 50BL-24HR/88-126H T-682F TRB-1100 (2) (000-015-852) (000-015-219) T-683...
  • Page 67 All manuals and user guides at all-guides.com NEW BLT TRANSDUCERS Setting For the locations of JP10 and JP11, see page A-1. Board Frequency (kHz) Output (kW) Transducer JP10 and JP11 setting 28BL-6HR 28BL-12HR 02P6204 38BL-9HR MAIN 38BL-15HR 50BL-12HR 50BL-24HR Board Frequency (kHz) 28/50 02P6204...
  • Page 68 All manuals and user guides at all-guides.com...

  • Page 69: Display Unit
