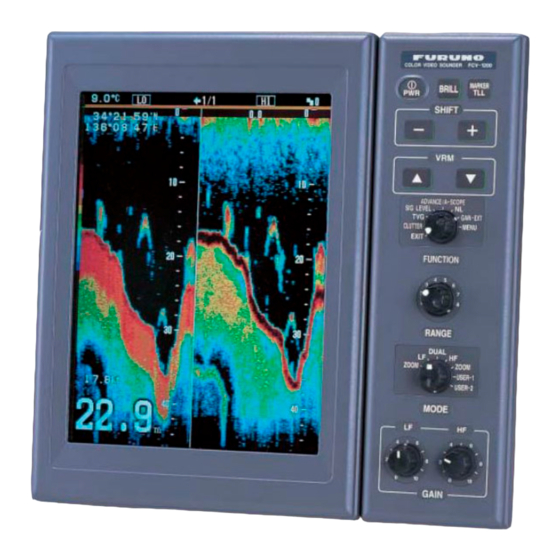

COLOR LCD SOUNDER
FCV-1200L/1200LM

Advertisement

Table of Contents
loading

Related Manuals for Furuno FCV-1200L

Summary of Contents for Furuno FCV-1200L

  • Page 1 Back COLOR LCD SOUNDER FCV-1200L/1200LM...
  • Page 2 Pub. No. OME-23650 OME-23650 *00080900514* *00080900514* ( ( DAMI DAMI ) ) FCV-1200L/LM FCV-1200L/LM *00080900514* *00080900514* * 0 0 0 8 0 9 0 0 5 1 4 * * 0 0 0 8 0 9 0 0 5 1 4 *...
  • Page 3 Continued use of the equipment can cause fire or electrical shock. Contact a FURUNO agent for service. CAUTION Do not disassemble or modify the A warning label is attached to the equip- equipment.

  • Page 4: Foreword

    A Word to FCV-1200L/1200LM Owners Congratulations on your choice of the FURUNO FCV-1200L/FCV-1200LM COLOR LCD SOUNDER. We are confident you will see why the FURUNO name has become synonymous with quality and reliability. FCV-1200L is a dual-frequency color LCD sounder, and FCV-1200LM is a monitor which displays the signal from an external video sounder.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS FOREWORD ........................ii CONTENTS BY INDICATIONS ..................v SYSTEM CONFIGURATION ..................vi BASIC OPERATION.....................1-1 1.1 Key/Control Operation......................1-1 1.2 Turning the Power On/Off..................... 1-3 1.3 Adjusting the Brilliance of LCD and Key Panel..............1-3 1.4 Presentation Mode ....................... 1-4 1.5 Selecting Basic Range ......................1-11 1.6 Shifting the Basic Range .....................1-12 1.7 Adjusting Gain........................1-13...
  • Page 6 SYSTEM MENU....................3-1 3.1 SYSTEM Menu Operation ....................3-1 3.2 SYSTEM SETTING Menu ....................3-2 3.3 ES/DRAFT SETTING Menu ....................3-4 3.4 RANGE SETTING Menu ...................... 3-7 3.5 TEMP SETTING Menu......................3-9 3.6 NET SONDE SETTING Menu .....................3-10 3.7 USER COLOR SETTING Menu...................3-13 3.8 USER CLUTTER SETTING Menu..................3-15 3.9 NAV DATA SETTING Menu ....................3-16 3.10 TARGET ECHO SETTING Menu..................3-17...

  • Page 7: Contents By Indications

    (p. 1-14) (p. 3-9) Depth scale Fish school (p. 4-3) (p. 3-2) Seabed (p. 4-2) 17.8kt Ship's speed* (p. 3-16) *: Appropriate sensor required 49.6 Depth (p.2-4) 1'21" <P/R> Scroll time Transducer power reduction (FCV-1200L only) (p. 2-6) (p. 3-5)

  • Page 8: System Configuration

    *2: EXIF Assy. required for FCV-1200L. Same as above *3: For sister ship one unit only Sister ship: EXIF Assy. required for FCV-1200L Master ship: FCV-1200LM or FCV-1200L equipped with EXIF Assy. *4: Navigator may be connected to interface unit or monitor unit.
  • Page 9 *3: For sister ship one unit only Sister ship: EXIF Assy. required for FCV-1200L Master ship: FCV-1200LM or FCV-1200L equipped with EXIF Assy. *4: When connecting optional monitor unit, connect it to control unit. How to remove the hard cover...
  • Page 10 This page is intentionally left blank.

  • Page 11: Basic Operation

    1. BASIC OPERATION Key/Control Operation 1.1.1 Portrait-type control unit Monitor Unit Correct key operation: One beep Wrong key operation: Two beeps Control Unit COLOR LCD SOUNDER FCV– 1200L Adjusts dimmer of the display and control panel. (P. 1-3) MARKER BRILL Inscribes marks on the display SHIFT (P.
  • Page 12 1.1.2 Landscape-type control unit Monitor Unit Control Unit Correct key operation: One beep Wrong key operations:Two beeps Adjusts dimmer of the · Shifts the display area. (P. 1-12) display and control · Changes menu setting. (P. 2-1) panel (P. 1-13). Inscribes marks Selects the display.

  • Page 13: Turning The Power On/Off

    Turning the Power On/Off Press the [PWR] key to turn the power on. Beep sounds, and then the power turns on. The display selected with the [MODE] switch appears. Press the [PWR] key again to turn the power off. Note: Wait for five seconds before turning on the power again. Adjusting the Brilliance of LCD and Key Panel The brilliance of the LCD and the dimmer of key panel may be adjusted as below.

  • Page 14: Presentation Mode

    Presentation Mode Seven presentation modes are available with the [MODE] switch. M O D E LF-ZOOM Currentry selected mode DUAL shown in reverce video HF-ZOOM USER-1 USER-2 Display mode window Single picture (low frequency or high frequency) Low frequency (LF) The lower the frequency of the ultrasonic pulse the wider the detection area.
  • Page 15 Dual Provides the low frequency picture on the left 1/2 of the screen; the high frequency on the right 1/2. High frequency frequency 49.6 Frequency Echo trail Beamwidth Long wide Short High Narrow Dual frequency display...
  • Page 16 ZOOM The “single picture” (high or low frequency) appears on the right 1/2 of the screen and the zoom picture on the left 1/2. The zoom picture may be selected among BOTTOM LOCK, BOTTOM ZOOM, MARKER ZOOM, DISCRIM (discrimination) 1/2 and DISCRIM (discrimination) 1/3. The default zoom picture is BOTTOM LOCK.
  • Page 17 BOTTOM ZOOM The bottom zoom display shows the zoomed bottom (automatically tracked) on the left 1/2 of the screen. When the bottom depth increases, the display shifts to keep the bottom echo at the lower part of the screen. Bottom zoom Single frequency display display Zoom marker (current)
  • Page 18 DISCRIM 1/2 The discrim(ination) 1/2 screen shows the single picture on the right 1/2 of the screen and the bottom lock display and discriminator display occupy the left 1/2 of the screen. The discriminator display shows the bottom as a straight line, which is useful for determining bottom hardness. Bottom lock display Bottom trail Long tail=Hard bottom...
  • Page 19 USER 1, 2 The display set at the user 1 (user 2) menu appears. Default setting is as follows. USER 1: Vertical split three screens (LF + HF + MIX) USER 2: Vertical and horizontal split four screens (LF + HF + LF bottom lock +HF bottom lock displays) This setting may be changed through the menu.
  • Page 20 High frequency Low frequency Green Blue R-BRN These echoes Descriminator are likely to be Blue small fish. Displayed in blue since high freq. Reddish-brown echo is weaker. Displayed in reddish- brown since high freq. echoes are red or reddish brown. How the mix display works Low frequency display High frequency display...

  • Page 21: Selecting Basic Range

    Selecting Basic Range The basic range may be selected with the [RANGE] switch from the eight ranges listed below. (The default unit of depth measurement is feet.) These eight ranges may be programmed as desired. For details, see page 3-7. R A N G E 3 0 f t 6 0 f t...

  • Page 22: Shifting The Basic Range

    Note1: This operation must be done within five seconds after pressing the [-] or [+] key or the shift window will be erased. Note2: The FCV-1200L/LM can automatically shift the display range to provide virtually hands-free automatic operation. This can be done through the menu. For further details see page 2-5.

  • Page 23: Adjusting Gain

    Adjusting Gain The [GAIN] control adjusts the sensitivity of the receiver. Adjust it so excessive noise just disappears from the screen. Gain too high Gain proper Gain too low Examples of proper and improper gain levels Measuring Depth Use [!] or ["] key to place the VRM on the object to measure depth. Depth is digitally displayed above the VRM.

  • Page 24: Marker Line

    Marker Line The [MARKER/TLL] key inscribes a vertical line when pressed. It may be used to denote a fish school or other important echo. At the same moment the key is pressed latitude and longitude position may be output to connected navigation plotter and marked on its screen.

  • Page 25: Adjusting Clutter

    1.10 Adjusting Clutter When blue dots appear over the entire screen (mainly caused by dirty water), use the clutter function to eliminate them. Rotate the [FUNCTION] switch to select CLUTTER. The clutter menu appears. C L U T T E R HF•CLUTTER HF•CURVE : STD...

  • Page 26: Adjusting Tvg

    Clutter setting window 7. Rotate the [FUNCTION] switch fully counterclockwise to select EXIT. Note: To use the user clutter setting menu setting is reflected on this function, select CUSTOM at step 3. 1.11 Adjusting TVG The TVG compensates for propagation loss of sound, so that the echoes from the same size fish schools are displayed in the same color.
  • Page 27 • For dual display Go to step 2. → • For other modes Go to step 3. → Note: When only the picture of the external equipment is displayed, an error message appears on the menu. 2. Press the [!] or ["] key to select HF TVG DIST or LF TVG DIST as appropriate. 3.

  • Page 28: Eliminating Weak Echoes

    1.12 Eliminating Weak Echoes Dirty water or reflections from plankton may be painted on the display in green or light-blue. These weak echoes may be erased with the signal level function. Rotate the [FUNCTION] switch to select SIG LEVEL. The SIGNAL LEVEL menu appears. SIGNAL LEVEL SIGNAL LEV Echo colors...

  • Page 29: Picture Advance Speed

    1.13 Picture Advance Speed The ADVANCE/A-SCOPE function selects picture advance speed. Rotate the [FUNCTION] switch to select ADVANCE/A-SCOPE. The PIC ADVNC/A-SCOPE menu appears. PIC ADVNC/A-SCOPE PIC ADVNC A-SCOPE : OFF For picture advance and A-SCOPE setting. [-/+]: Change setting [EXIT (knob)]: Exit PIC ADVNC/A-SCOPE menu Press the [-] or [+] key to select the speed desired.
  • Page 30 Ship’s speed dependent mode With speed data provided by a speed log, current indicator or navigation equipment, the display advance speed may be set according to ship’s speed, the ship’s speed dependent mode. As shown in the figure below the horizontal scale of the display is not influenced by the change of ship’s speed, thus the speed-dependent picture advance permits judgement of fish school size and abundance at any speed.

  • Page 31: A-Scope Display

    1.14 A-Scope Display The A-scope picture displays echoes at each transmission with amplitudes and colors proportional to their intensities on the right 1/4 of the screen. This feature is useful for close observation of small fish and fish near the bottom,. Note: For the dual mode display and vertical split screen, the A-scope display is available of the high frequency only.

  • Page 32: Suppressing Interference

    1.15 Suppressing Interference Interference from other acoustic equipment operating nearby or other electronic equipment on your boat may show itself on the display as shown in the figure below. You may suppress these types of interference with the noise limiter. Interference from Electrical interference other sounder...
  • Page 33 Press the [!] or ["] to select HF•FREQ ADJ or LF•FREQ ADJ whichever is appropriate. Press the [-] or [+] key to set appropriate value in the setting window so that interference disappears. (The setting range is -10.0% to +10.0%, however the lowest setting available for the 68 and 200 kHz transducers is -4.5%.) To adjust interference suppression level finely, go to step 4.

  • Page 34: Adjusting The External Video Sounder Picture

    1.16 Adjusting the External Video Sounder Picture The USER-1/USER-2 display can show the picture from external equipment, and you can adjust the picture as below. Display the picture of the external equipment. “EXT” appears at the top of the screen. Rotate the [FUNCTION] switch to select GAIN-EXT.

  • Page 35: Menu Operation

    2. MENU OPERATION Basic Menu Operation The main menu, consisting of the DISP (display), ALM (alarm), TX/RX, USER-1/2 and SYSTEM menus, contains various items which once preset do not require frequent adjustment. Rotate the [FUNCTION] switch fully clockwise to select MENU. The last-used menu among DISP, ALM, TX/RX, USER-1/2 and SYSTEM appears.
  • Page 36 Press the [-] or [+] key to change the setting. For many items having several options, a scroll bar (blue) appears. This bar shows the current cursor position in relation to the entire option range. This bar shifts with operation of [-] or [+] key.

  • Page 37: Disp Menu

    Selects eight color or sixteen-color presentation. Selects desired picture color. USER displays the colors programmed by the user. (See chapter 3.) STD is the standard colors used on most FURUNO video sounders. HUE 1-7 provide other picture color arrangements. BACKGROUND Selects background color to black, dark blue, blue, light-blue or white.
  • Page 38 DEPTH INFO Changes the size and position of the depth indication. BOTTOM SEARCH On the dual frequency display, select transducer which is to measure depth. AUTO, automatic; LOW, low frequency, HIGH, high frequency. MARKER SELECT Selects the marker function, VRM or WHITE MARKER. VRM: Measures depth to an echo.
  • Page 39 AUTO SHIFT Selects manual or automatic depth shift. OFF: Shift manually with the [+] or [-] key. 1/4: The display is automatically shifted to place the bottom echo on the lower half of the screen. The equipment shifts to a deeper Range changes automatically to range when the bottom comes to locate the bottom on the lower half...
  • Page 40 SCROLL TIME Turns the display scroll time on/off. Scroll time displays, at the screen bottom, the amount of time a scan line stays on the screen as it passes from one side of the screen to the other. Time varies with the range and picture advance speed. SMOOTHING-1 This setting can only be changed when the picture advance speed is set to 1/16, 1/8, 1/4, 1/2 or 1/1.

  • Page 41: Alm Menu

    ALM Menu Sets the alarms; BOTTOM, FISH and TEMP (temperature). To silence the alarm beep, press the [-], [+], [ ] or [ ] key. BOTTOM ALARM When your ship comes in the area of the selected depth, the beep sounds and the indication BTM flashes at the top right corner to draw your attention.
  • Page 42 DISP TX/RX USER-1/2 SYSTEM BOTTOM ALARM : OFF ALARM DEPTH : 0 ft ALARM ZONE : 10 ft FISH ALARM : OFF ALARM DEPTH : 0 ft ALARM ZONE : 10 ft ALARM LEVEL : MID TEMP ALARM : OFF TEMP LIMIT : 65.0 F(20~95) ALARM ZONE : 1.0 F...
  • Page 43 Selected alarm (flashing) Start line Alarm area Alarm marker Bottom alarm (green): right side 12.5 Fish alarm (white): right side Bottom-fish alarm (white): left side (vertical screen division) right side (horizontal screen division) Setting of alarm zone (ex. Bottom alarm) 10.

  • Page 44: Tx/Rx Menu

    TX PULSE : STD PULSE LENGTH : 0.2msec (0.2~5.0)*2 Menu for TX/RX setting. [-/+]: Change set, [EXIT (knob)]: Exit *1: FCV-1200L only *2: The setting becomes available when MANUAL is selected at TX PULSE. TX/RX menu PRR LEVEL Changes pulse repetition rate. Normally, the highest rate (20) is used. When in shallow waters second reflection echoes may appear between surface and actual bottom echo.
  • Page 45 RX BAND (High and Low Frequencies) Sets amplifier bandwidth of high and low frequency Rx amplifier. When NARROW is selected, the noise suppression is greater however resolution is lower in shallow water. Normally, set to STD. For more effective resolution, select WIDE. TX PULSE (High and Low Frequencies) Sets TX pulselength for high and low frequencies.

  • Page 46: User-1/2 Menu

    USER-1/2 Menu Sets screen division for the dual frequency picture. This setting can be selected with USER-1, 2 of the [FUNCTION] switch. Default settings are as below. USER-1: ( [LF]+[HF] +[MIX]) USER-2: ([LF]ZM/NOR+[HF]ZM/NOR) DISP ALM TX/RX USER-1/2 SYSTEM <USER 1> SCREEN LAYOUT : DISP MODE : [LF]+[HF]+[MIX]...
  • Page 47 [LF]:Zm/Nor+[HF]:Zm/Nor [EX]+[HF]* [EX]+[LF]* [HF]:Zm/Nor [LF]:Zm+[HF]:Zm [LF]:Zm/Nor [HF]+[MIX] [EX]:Zm/Nor* [LF]+[MIX] *: EXIF assy. (option) equipped for FCV-1200L, [H]sub+[HF] INTERNAL selected at XDCR CONNECT [L]sub+[LF] on the E/S DRAFT SETTING menu. HF: high frequency LF: low frequency, NOR: normal ZM: zoom, MIX: mix...
  • Page 48 EXT DEVICE Selects the equipment to use for EX in use mode EX of SCREEN LAYOUT. “EXT” appears at the top of the screen. ETR: External Transceiver Unit TS/OTHER: telesounder, external echo sounder, sonar, picture recorder. Note: When selecting screen, the above equipment (low frequency echo) should be connected to the EXT_H port.

  • Page 49: System Menu

    SYSTEM MENU SYSTEM Menu Operation 1. Rotate the [FUNCTION] switch fully clockwise to select MENU. 2. Press the [ ] key to select the menu title area. 3. Press the [+] key to select SYSTEM to show the system menu. DISP ALM TX/RX USER-1/2 SYSTEM SYSTEM SETTING...

  • Page 50: System Setting Menu

    SYSTEM SETTING Menu This menu mainly sets picture layout parameters. DISP ALM TX/RX USER-1/2 SYSTEM SYSTEM SETTING LANGUAGE ENGLISH PICT ADV DIR : LEFT DEPTH SCALE : RIGHT DISP DIVISION : ZOOM MARKER : ON FREE SHIFT : OFF ECHO STRETCH : OFF DEPTH UNIT : ft SPEED UNIT...
  • Page 51 ZOOM MARKER Turns zoom marker on/off. FREE SHIFT Set shift value independently for each range (ON) or commonly for all range (OFF). ECHO STRETCH Displays the strong echoes long though the pulse length setting is short. It is useful for distinguishing individual fish (e.x.

  • Page 52: Es/Draft Setting Menu

    XDCR CONNECT (High and Low Frequencies) Sets the video sounder to be used for the high and low frequencies, as follows. INTERNAL: Use the internal video sounder signal (FCV-1200L only). ETR: Use the video sounder signal from the external Transceiver unit (FCV-1200LM and FCV-1200L with optional EXIF assy.
  • Page 53 TX POWER (High and Low Frequencies) Reduces the power output on high and low frequency (FCV-1200L only). <P/R> appears at the bottom of the screen when MIN is selected. When interference from near another shipborne transducer occurs, set this item appropriately. (MAX→1/2→ 1/4→ 1/8→ 1/16→MIN) DRAFT Sets the ship’s draft, to show the depth between the sea surface and the bottom (rather than...
  • Page 54 E/S SIG OUT Outputs selected video sounder signal to external equipment. Default setting is OFF (no output). In the following cases, the optional EXIF assy. is required for FCV-1200L. • When telesounder is connected on sister ship. • When recording video sounder signal by picture recorder.

  • Page 55: Range Setting Menu

    RANGE SETTING Menu This menu allows the user to preset the range selected with the [RANGE] control. DISP ALM TX/RX USER-1/2 SYSTEM RANGE SETTING RANGE1 ft (16 6000) RANGE2 60 ft RANGE3 : 120 ft RANGE4 : 250 ft RANGE5 : 500 ft RANGE6 : 1000 ft...
  • Page 56 B/L RANGE Sets display range of bottom-lock, discrim-1/2, discrim-1/3 picture. (5-200 m, 16-600 ft, 2-120 fa, 4-160 hiro, 3-120 P/B) Note: For the vertical split screen, halve the above values. B/L DETECT When vertical lines appear at the bottom of the bottom lock display, you can erase them with B/L DETECT.

  • Page 57: 3.5 Temp Setting Menu

    3.5 TEMP SETTING Menu This menu sets up water temperature sensor. DISP ALM TX/RX USER-1/2 SYSTEM TEMP SETTING TEMP INPUT SENSOR TEMP ADJUST : +0.0 F(-20 +20) TEMP READOUT : ON TEMP GRAPH : OFF TEMP COLOR : STD Select temperature sensor. [-/+]: Change set, [EXIT (knob)]: Exit TEMP SETTING menu TEMP INPUT...

  • Page 58: Net Sonde Setting Menu

    NET SONDE SETTING Menu This menu sets up the Net Sonde. DISP ALM TX/RX USER-1/2 SYSTEM NET SONDE SETTING SONDE MARK COLOR WIDTH SONDE GRAPH : OFF GRAPH MODE : SURFACE GRAPH WIDTH : 1/4 GRAPH RESET : NO Indication of sonde mark. [-/+]: Change set, [EXIT (knob)]: Exit NET SONDE SETTING menu SONDE MARK...
  • Page 59 SONDE GRAPH Turns on/off the net sonde water temperature graph. Water temperature graph Horizontal lines show depth. Net sonde water temperature graph (at the left-hand side of display) GRAPH MODE Selects the display starting position of the net sonde water temperature graph. SURFACE is the first-water temperature (surface condition);...
  • Page 60 Scale (5 C) Display Range(12 C) Scale shifts with temperature Bottom Surface Net sonde water temperature graph (SURFACE/BOTTOM) GRAPH WIDTH Selects the width of sonde water temperature graph; 1/4 of the screen or 1/2 of the screen. Note: When turning on both of sonde water temperature graph and A-scope, 1/2 is not available. GRAPH RESET Select ON to reset the graph.

  • Page 61: User Color Setting Menu

    USER COLOR SETTING Menu In addition to the standard and factory programmed color sets, the user may set and store display colors as desired and recall them from the DISP menu. DISP ALM TX/RX USER-1/2 SYSTEM USER COLOR SETTING COLOR NO. BKGD : 0 (0 GREEN...
  • Page 62 Press the [!] or ["] key to close the color setting window. Press the ["] key to select RED, GREEN or BLUE (level). Press the [-] or [+] key to show the level setting window. Level setting window Press the [-] or [+] key to select color strength. The higher the number, the darker the color.

  • Page 63: User Clutter Setting Menu

    USER CLUTTER SETTING Menu The USER CLUTTER SETTING menu lets you emphasize weak to medium strength echoes. The settings of this menu are active when selecting CUSTOM on the CLUTTER menu. DISP ALM TX/RX USER-1/2 SYSTEM USER CLUTTER SETTING COLOR-7 (1 14) COLOR-6 COLOR-5...

  • Page 64: Nav Data Setting Menu

    NAV DATA SETTING Menu This menu selects source of position data and heading data. DISP ALM TX/RX USER-1/2 SYSTEM NAV DATA SETTING SPEED INFO NMEA VERSION : Ver 2.0 NAV DATA : AUTO COURSE : TRUE TLL OUTPUT : OFF Indication of speed data.

  • Page 65: Target Echo Setting Menu

    3.10 TARGET ECHO SETTING Menu The TARGET ECHO menu sets equipment objective. Four choices are available: NORMAL, SURFACE, SQUID and DEEP SEA. DISP ALM TX/RX USER-1/2 SYSTEM TARGET ECHO TARGET ECHO NORMAL SURFACE is valid when proper transducer is connected. Select target echo to optimize sounding parameters.

  • Page 66: Stabilization Menu

    3.11 STABILIZATION Menu The stabilization feature offsets heaving (ship's vertical movement) to give you steady images in rough seas. This feature requires connection of a satellite compass. NOTICE: The stabilizer cannot be used in the following instances: • Picture from external source is being displayed •...

  • Page 67: Interpreting The Display

    4. INTERPRETING THE DISPLAY This section provides, using typical examples, information necessary for interpreting the display. Zero line Surface noise Color bar Fish school Bottom 49.6 Typical display Color Bar The color bar shows the relation between echo intensity and echo color on the screen. The top color (reddish brown) is the strongest color and the lower colors the weakest.

  • Page 68: Zero Line

    Zero Line The zero line represents the transducer’s position. It moves off the screen when a shifted range is used, or is shown at draft depth when ship’s draft is entered. Zero Line Range shifted Zero line Bottom Echoes Bottom echoes are normally strongest and displayed in reddish brown or red, but colors and width will vary with bottom material, depth, sea condition, installation, frequency, pulselength and sensitivity.

  • Page 69: Fish Schools

    Bottom nature The nature of the bottom is known from the intensity and length of the bottom tail. Generally, when observing the bottom nature, the lower sounding frequency is used, the pulselength is set to long, and the gain setting is not disturbed. In the hard and craggy bottom, the bottom appears more reddish and with a long tail.

  • Page 70: Other Echoes

    Fish school density If two fish scools appear with the same color at different depths, the one in deeper water is denser because the ultrasonic wave attenuates as it propagates and the fish school in deep water tends to be displayed in a weaker color. Less Reddish Strong (Sparse echo)
  • Page 71 Surface noise When the sea is rough or the ship passes over a wake, surface noise may appear at the top of the screen. It can be suppressed with the CLUTTER function. Surface Noise Surface noise Aerated water When the sea is rough or the ship makes a quick turn, gaps in the bottom echo on the screen may appear.
  • Page 72 This page is intentionally left blank.

  • Page 73: Maintenance & Troubleshooting

    5. MAINTENANCE & TROUBLESHOOTING WARNING ELECTRICAL SHOCK HAZARD Do not open the equipment. Only qualified personnel should work inside the equipment. Maintenance Regular maintenance is important for continued performance. Important points to be checked from time to time are shown below. Check point Action Interval...

  • Page 74: Fuse Replacement

    Fuse Replacement A fuse in the display unit and processor unit protects the equipment against overcurrent and reverse polarity of the ship’s mains or internal fault. If a fuse blows find the cause before replacing it. CAUTION Use the proper fuse. Use of a wrong fuse can cause fire or equipment damage.

  • Page 75: Troubleshooting

    Troubleshooting This section provides simple troubleshooting procedures which the user may follow to restore normal operation. If… Then… • there are no echoes but the scale appears check if the transducer is properly connected. • there is no zero line or zero line is not in correct check if the range shifted.

  • Page 76: Diagnostic Test

    Diagnostic Test The diagnostic test checks the equipment for proper operation. Rotate the [FUNCTION] switch fully clockwise to select MENU. Press the [!] key to select the menu title area at the top of screen. Press the [+] key to select SYSTEM. Press the [!] or ["] key to select TEST.
  • Page 77 Program No. 0252296-0XX Panel Unit Ver XX OK R O M S R A M D R A M 15-200* E S 1 15-200* E S 2 E X I F OPEN N M E A SONDE (CIF) Temp. SENSOR +32.6 F Temp.

  • Page 78: Test Pattern

    Test Pattern The test pattern tests for proper display of colors. 1. Rotate the [FUNCTION] switch fully clockwise to select MENU. 2. Press the [ ] key to select the menu title area at the top of the screen. 3. Press the [+] key to select SYSTEM. 4.

  • Page 79: Default Setting

    Default Setting The memory (all menu settings) can be cleared to start afresh. All default menu settings are restored when the memory cleared. For your reference all default settings are shown in the menu tree at the back of this manual. Note: User color setting, language, target echo setting and user clutter setting are not disturbed.
  • Page 80 This page is intentionally left blank.

  • Page 81: Appendix 1 Menu Tree

    APPENDIX 1 MENU TREE [FUNCTION] switch CLUTTER HF CLUTTER (0-7, 4) HF CURVE (STD, LINEAR, CUSTOM) LF CLUTTER (0-7, 4) LF CURVE (STD, LINEAR, CUSTOM) HF TVG LEV (0-10, 5) Underline: default setting HF TVG DIST (100ft-3000ft, 600ft) LF TVG LEV (0-10, 5) LF TVG DIST (100ft-3000ft, 600ft) SIG LEVEL SIGNAL LEV (OFF, 16 colors: 1-9, 8 colors: 1-4)
  • Page 82 (Continued from previous page) DISP ZOOM MODE (BOTTOM LOCK, BOTTOM ZOOM, MARKER ZOOM, DISCRIM-1/2, DISCRIM-1/3) NO. OF COLORS (8, 16) HUE (CUSTOM, STD, HUE1-7) BACKGROUND (BLACK, DARKBLUE, BLUE, LIGHTBLUE, WHITE) WHITE LINE (OFF, 1-10) DEPTH INFO (OFF, STD, LARGE, RIGHT) BOTTOM SEARCH (AUTO, LF, HF) MARKER SELECT (VRM, WHITE MARKER) AUTO SHIFT (OFF, 1/4, 1/2)
  • Page 83 ([LF]+[HF]:Zm/Nor, [LF]:Zm/Nor+[HF], [Ex]+[HF]:Zm/Nor*, [Ex]+[LF]:Zm/Nor*, [EX]:Zm/Nor+[HF]*, [EX]:Zm/Nor+[LF]*, [Ex]+[LF]+[HF]*, [LF]+[HF]+[Mix], [LF]+[H]sub+[HF], [L]sub+[LF]+[HF]) ([LF]Zm/Nor+[HF]Zm/Nor) [HF]:Nor/Zm, [LF]:Nor/Zm. [EX]:Zm/Nor*) *: FCV-1200L equipped with EXIF Assy., INTERNAL selected at XDCR CONNECT on the DRAFT SETTING menu. ZOOM MODE (BOTTOM LOCK, BOTTOM ZOOM, MARKER ZOOM, DISCRIM-1/2, DISCRIM-1/3)
  • Page 84 XDCR CONNECT (INTERNAL, ETR, TS/OTHER) TX POWER (MAX, 1/2, 1/4, 1/8, 1/16, MIN) DRAFT (-15ft-+90ft; +0ft) FREQ CHOICE (XXX kHz) HF and LF should be set. *:FCV-1200L only E/S SIG OUT (OFF, LF, HF, LF/HF) KP SETTING (INTERNAL, EXTERNAL) RANGE SETTING RANGE1 (16-6000ft, 30ft)
  • Page 85 (Continued from the previous page) NET SONDE SETTING SONDE MARK (OFF, LF, HF) COLOR (1, 2, 3) WIDTH (2dots, 3dots, 4dots, 5dots) SONDE GRAPH (OFF, ON) GRAPH MODE (SURFACE, BOTTOM) GRAPH WIDTH (1/4, 1/2) GRAPH RESET (NO, YES) USER COLOR SETTING COLOR NO.

  • Page 86: Appendix 2 Screen Division

    NORMAL ZOOM NORMAL [HF]: Normal [LF]: Normal *[Ex]: Normal [HF]: Zoom ETR/ TELESOUNDER ZOOM NORMAL ZOOM [Mix]: Normal [LF]: Zoom *[Ex]: Zoom *: For FCV-1200L with EXIF assy. (option). Select INTERNAL at HF/LF XDCR CONNECT on ES/DRAFT SETTING menu. AP-6...
  • Page 87 NORMAL NORMAL LOW ZOOM HIGH ZOOM [LF]:Zm [HF]:Zm [L]sub+[LF] Tbe dashed line shows position of dividing line for vertical (1:2) split screen. *: For FCV-1200L with EXIF assy. (option). Select INTERNAL at HF/LF XDCR CONNECT on ES/DRAFT SETTING menu. AP-7...
  • Page 88 NORMAL *[Ex]+[LF]+[HF] [LF]+[HF]+[Mix] HIGH HIGH NORMAL NORMAL HIGH NORMAL NORMAL [LF]+[H]sub+[HF] [L]sub+[LF]+[HF] *: For FCV-1200L with EXIF assy. (option). Select INTERNAL at HF/LF XDCR CONNECT on ES/DRAFT SETTING menu. (four split screen) HIGH HIGH ZOOM ZOOM [LF]: Zm/Nor+[HF]: Zm/Nor AP-8...

  • Page 89: Appendix 3 Display Division

    APPENDIX 3 DISPLAY DIVISION The display is arranged as shown below through DISP DIVISION on the SYSTEM SETTING menu. LF or HF DUAL ZOOM LOW/ NORMAL LOW/HIGH HIGH ZOOM HIGH SONDE WATER LOW/ HIGH TEMP HIGH "ON" A-SCOPE LOW/HIGH LOW HIGH "ON"...
  • Page 90 LF or HF DUAL ZOOM ZOOM HIGH LOW/HIGH LOW/HIGH NORMAL NORMAL LOW/HIGH ZOOM ZOOM LOW/ HIGH HIGH SONDE LOW/ WATER HIGH TEMP "ON" ZOOM LOW/ HIGH HIGH LOW/ A-SCOPE HIGH "ON" ZOOM The width of the sonde temperature display may be set to 1/4 or 1/2 the screen size. Selection is made with SONDE GRAPH in the NET SONDE SETTING menu.

  • Page 91: Specifications

    FURUNO SPECIFICATIONS OF THE COLOR LCD VIDEO SOUNDER FCV-1200L/FCV-1200LM 1. ECHO SOUNDER (FCV-1200L ONLY) (1) TX Frequency 15/28/38/45/50/68/88/107/150/200/400 kHz, select 2 channels 400 kHz requires optional transmit board (2) Output Power 1, 2 or 3 kWrms (3) TX Rate 5 to 1000 pulse/min (20 to 1000 m range, normal mode) Max.
  • Page 92 FURUNO 5. ENVIRONMENTAL CONDITION (1) Temperature -15 °C to +55 °C (2) Relative Humidity Less than 95% (at 40°C) (3) Water Resistance Display Unit and Control Unit: IEC IPX5 Processor Unit: IEC IPX2 6. COATING COLOR (1) Processor Unit 2.5GY5/1.5 (2) Display Unit and Control Unit Panel: N3.0 Sleektone No.535, Chassis: 2.5GY5/1.5...

  • Page 93: Index

    INDEX advance speed ..........1-19 language ............3-2 aerated water ..........4-6 A-scope display...........1-21 marker Line..........1-14 MARKER ZOOM ......... 1-6 background color ......... 2-3 MARKER/TLL key ........1-14 basic range ..........1-11 mix ............... 1-9 B/L DETECT..........3-8 MODE switch ..........1-4 BOTTOM ALARM........
  • Page 94 USER-1,2 ............1-9 white line............2-3 WHITE MARKER......... 2-4 VRM ............. 1-13 IN-2...

This manual is also suitable for:

Fcv-1200lm

Table of Contents
