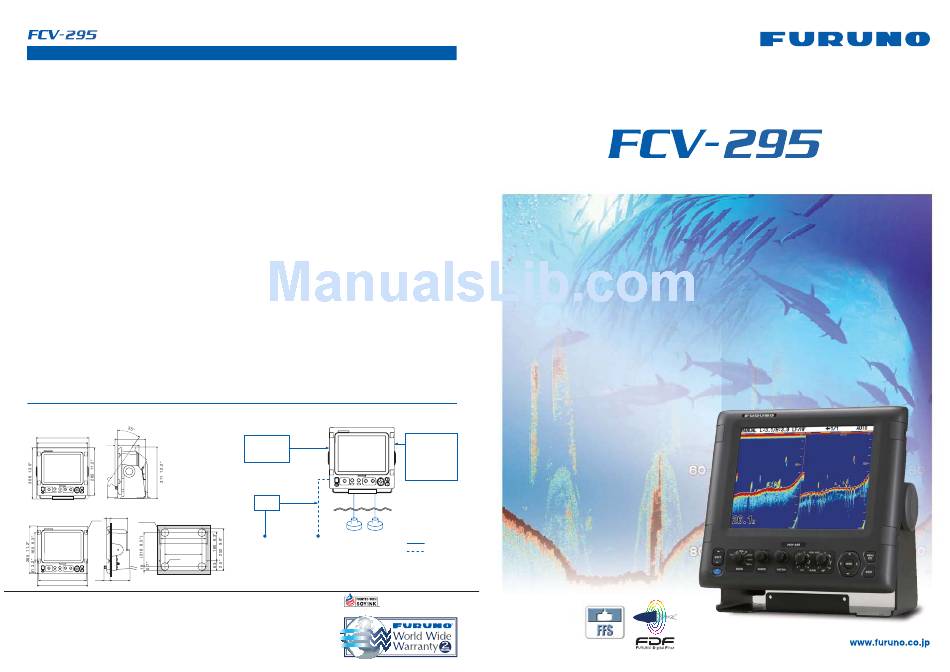

Furuno FCV-295 Specifications

COLOR LCD SOUNDER
SPECIFICATIONS OF FCV-295
GENERAL
1. Operating Frequencies
The synthesized transceiver works with dual
frequencies in 28 to 200 kHz. Specify
transducer type when ordering, among
28/38/50/68/82/88/107/150/200 kHz
2. Output Power 1/2/3 kW
3. Power Reduction Auto/10 to 100% (in 10% step)
4. Tx Rate 20 to 3000/min
Short1/Short2/Standard/Long/Manual (Manual
5. Pulselength
Pulselength: 0.1 to 5.0 ms)
6. RX Band Narrow/Standard/Wide
7. Amplifier High dynamic range
DISPLAY
1. Display 10.4" color LCD (VGA: 640 x 480)
2. Color 8/16/64
450 cd/m
3. Brightness 2
4. Ranges 5 to 3000 m (Split Range available)
5. Shift 0 to 2000 m
6. Marker Zoom/Bottom-lock Expansion Ranges
5 to 2000 m
7. Display mode Single (HF/LF), Dual, Single + Zoom,
two Custom Modes
Zoom Mode (Bottom Lock, Bottom Zoom,
Marker Zoom), Mix Mode, Nav data, A-scope
8. Picture Advance Direction
Left, Right, L/R
9. Picture Advance Speed
Stop, 1/16, 1/8, 1/4, 1/2, 1/1, 2/1, 4/1,
Synchronized with own ship speed
10.Alarms Audio-visual alarms for a preset depth of water,
fish and a preset value of water temperature
English, French, Spanish, German, Italian,
11.Language
Portuguese, Swedish, Danish, Norwegian,
Finish, Greek, Chinese, Japanese, Thai,
Korean, Russian
12.Others Auto Mode, Interference, Clutter, TVG, Color
Erase, Hue, Temp Graph, A-scope, White Marker
DISPLAY UNIT FCV-295
7.0 kg 15.4 lb
323 12.7"
185 7.3"
310 12.2"
18
128
0.7" 5.0"
62 10
2.4" 0.4"
Flush mount
22
6.0 kg 13.2 lb 106 4.7"
4-Ø6
Fixing hole
0.9"
274 10.8"
288 11.3"
(238 9.4")
4-Ø36
288 11.3" 41 122 4.8"
Cutout for flush mount
310 12.2"
1.6"
FURUNO ELECTRIC CO., LTD. FURUNO FRANCE S.A.S. FURUNO NORGE A/S
Nishinomiya, Hyogo, Japan Bordeaux-Mérignac, France Ålesund, Norway
Phone: +81 (0)798 65-2111 Phone: +33 5 56 13 48 00 Phone: +47 70 102950
Fax: +81 (0)798 65-4200, 66-4622 Fax: +33 5 56 13 48 01 Fax: +47 70 102951
FURUNO U.S.A., INC. FURUNO ESPAÑA S.A. FURUNO SVERIGE AB
Camas, Washington, U.S.A. Madrid, Spain Västra Frölunda, Sweden
Phone: +1 360-834-9300 Phone: +34 91-725-90-88 Phone: +46 31-7098940
Fax: +1 360-834-9400 Fax: +34 91-725-98-97 Fax: +46 31-497093
FURUNO (UK) LIMITED FURUNO DANMARK AS FURUNO FINLAND OY
Havant, Hampshire, U.K. Hvidovre, Denmark Espoo, Finland
Phone: +44 23 9244 1000 Phone: +45 36 77 45 00 Phone: +358 9 4355 670
Fax: +44 23 9248 4316 Fax: +45 36 77 45 01 Fax: +358 9 4355 6710
DATA INTERFACE
NMEA0183 (Ver. 1.5, 2.0 or 3.0; Any talker)
Input: BWC, GGA, GLC, GLL, GNS, GTD, HDG, HDT, MDA,
MTW, MWV, RMA, RMB, RMC, VHW, VTG, XTE
Output: DBT, DPT, MTW, TLL, SDmrk, VHW, RMB, dat
ENVIRONMENTAL CONDITIONS
Display Unit: -15 ºC to +55 ºC (IEC60945 tested)
Water Resistance: IP55 (When flush mounted)
POWER SUPPLY
12-24 VDC, 45 W max. 100/110/220/230 VAC with optional rectifier
EQUIPMENT LIST
Standard
1. Display Unit
2. Installation Materials and Standard Spare Parts
Option
1. Speed/temperature sensor
ST-02MSB (Thru-hull, bronze), ST-02PSB (Thru-hull, plastic)
2. Temperature sensor
T-02MSB (Thru-hull, bronze), T-02MTB (Transom, bronze),
T-03MSB (Thru-hull, bronze)
3. NMEA cable MJ-A6SPF0003-050C (5 m)
CO-SPEVV-SB-C 2P x 0.2SQLF (5/10/15 m)
4. Rectifier PR-62
5. Transducer (Specify the frequency and type of transducer)
1 kW: 28F-8 (28 kHz), 50B-6/6B (50 kHz), 50B-9B (50 kHz),
68F-8H (68 kHz), 88B-8 (88kHz), 200B-5S (200 kHz),
50/200-1T (50/200 kHz), 50/200-12M (50/200 kHz)
2 kW: 28F-18 (28 kHz), 28BL-6HR (28 kHz), 38BL-9HR (38 kHz),
50B-12 (50 kHz), 50BL-12/12HR (50 kHz), 82B-35R (66-209
kHz), 88B-10 (88 kHz), 200B-8/8B (200 kHz)
3 kW: 28F-24H (28 kHz), 28BL-12HR (28 kHz), 38BL-15HR (38
kHz), 50F-24H (50 kHz), 50BL-24H/24HR (50 kHz),
68F-30H (68 kHz), 88F-126H (88 kHz), 100B-10R (100
kHz), 150B-12H (150 kHz), 200B-12H (200 kHz)
INTERCONNECTION DIAGRAM
Temp. sensor
Position data
T-02MSB
NMEA cable
(From GPS navigator
T-02MTB
or via radar
or Chart Plotter) T-03MSB
Speed/temp. sensor
ST-02MSB
ST-02PSB
Rectifier
PR-62
100/110/220/230 VAC 12-24 VDC Transducers
TRADEMARK REGISTERED
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
08013U Printed in Japan
FURUNO POLSKA Sp. Z o.o.
Catalogue No. E-405
Gdynia, Poland
Phone: +48 58 669 02 20
Fax: +48 58 669 02 21
FURUNO DEUTSCHLAND GmbH
Rellingen, Germany
Phone: +49 4101 838 0
Fax: +49 4101 838 111
LLC "FURUNO EURUS"
St. Petersburg, Russian Federation
Phone: +7 812 767 15 92
Fax: +7 812 766 55 52
COLOR LCD SOUNDER
Option
Local supply
Fogging Free Display FURUNO Free
Synthesizer Transceiver
