Summary of Contents for Iiyama ProLite T1721MSC

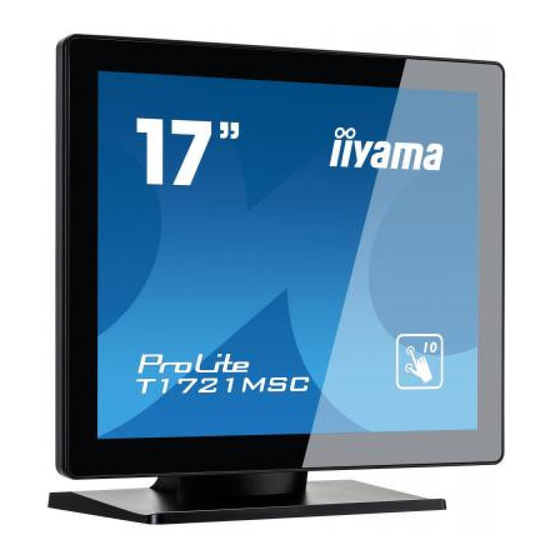

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PLT1721M We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 SPECIAL NOTES ON TOUCH PANEL..........5 WALL MOUNTING ................5 BUILT-IN EQUIPMENT ..............5 FITTING AND REMOVAL OF BASE ..........6 CONTROLS AND CONNECTORS..........7... -
Page 5: For Your Safety
CORRECT USE OF THE AC ADAPTER Use only the AC Adapter provided by iiyama. Any deviation from this by using another type of adapter may result in damage to the accessory and the monitor by fi re or electric shock. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
WARNING If you drop any materials or liquids such as water into the monitor when cleaning, unplug the power cable immediately and contact your dealer or iiyama service center. NOTE To protect the Touch screen surface, do not scratch or rub the screen with a hard object. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Special Notes On Touch Panel
SPECIAL NOTES ON TOUCH PANEL Permanent damage can occur if Sharp Edged, Pointed or Metal items are used to activate Touch. This could invalidate any remaining warranty. We recommend to use a plastic stylus (tip R0.8 or over) or fi nger. WALL MOUNTING WARNING W h e n y o u u s e w i t h t h e w a l l m o u n t i n g , i n... -
Page 10: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 11: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Menu Button ( Up / Left / Auto Adjustment Button ( Down / Right Button ( Return / Exit Button ( Power Switch ( Power Indicator NOTE Green(Lighting) : Normal operation Green(Flash) : Power Management Keyhole for Security Lock Audio Connector USB Connector... -
Page 12: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 13: Computer Setting
Change to the desired signal timing listed on page 25: COMPLIANT TIMING. Windows XP/Vista/7/8/8.1/10 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 14: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor. Hold the panel so that the monitor does not topple when you change the monitor’s angle. You are able to adjust the monitor’s angle up to 70 degrees upward, 10 degrees downward. -
Page 15: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 25. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 18 for SCREEN ADJUSTMENTS. - Page 16 Direct LOCK MODE: Pressing and holding of the Button for 3-4 seconds when the Menu is not displayed. * The OSD menu is not displayed when the OSD is locked. Pressing and holding of the Button for 3 - 4 seconds again when the Menu is not displayed. The following OSD menu is displayed.
-
Page 17: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS PICTURE PICTURE Backlight Brightness Contrast Sharpness Adjustment Item Problem / Option Button to Press Too dark Backlight Too bright Too dark Brightness * Too bright Too dull Contrast Too intense 0 1 2 3 4 Sharpness You can change the picture quality from 0 to 4 (soft to sharp). Press the Button to change the picture quality in numerical order. - Page 18 DISPLAY DISPLAY Auto Adjustment H Position V Position Pixel Clock Phase Adjustment Item Problem / Option Button to Press Adjust H/V Position, Pixel Clock and Phase automatically. Auto Adjustment * Direct Too left H Position Too right Too low V Position Too high Too narrow Pixel Clock *...
- Page 19 COLOR COLOR Color Temp User Preset Picture Mode Standard Adjustment Item Problem / Option Button to Press 9300 Bluish white Greenish white 7500 Yellowish white 6500 Color Temp 5500 Reddish white Too weak Green User Preset Too strong Blue Standard Typical Picture Mode Low Blue Light...
- Page 20 AUDIO AUDIO Volume Mute Adjustment Item Problem / Option Button to Press Too soft Volume Too loud Turn off the sound temporarily. Mute Off Return the sound volume to the previous level. OTHER OTHER Reset OSD Time OSD H Position OSD V Position English Language...
- Page 21 INFORMATION INFORMATION 800x600@60.2Hz Displays information regarding the current input signal coming from the graphic card in your computer. See your graphic card user guide for more information about changing the resolution and NOTE refresh. OPERATING THE MONITOR 17...
-
Page 22: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). - Page 23 Press the Button. (Auto Adjustmnet) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V Position so that the top and bottom of the picture frame will fi t to the display area.
- Page 24 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the Pixel Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 25: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. -
Page 26: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 27: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. RECYCLING INFORMATION 23... -
Page 28: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Technology Projected capacitive 10pt touch Touch Screen Light transmission 85% Hardness Total thickness 1.5mm Communication USB serial transfer system Size Category 17" Panel technology TN Panel Size Diagonal: 17"... -
Page 29: Dimensions
DIMENSIONS 392.5mm/15.5” 49.0mm/1.9” 386.0mm/15.2” 266.5mm/10.5” COMPLIANT TIMING Horizontal Vertical Dot Clock Video Mode Frequency Frequency 59.940Hz 25.175MHz 31.469kHz 640 × 480 75.000Hz 31.500MHz 37.500kHz 70.080Hz 28.322MHz 720 × 400 31.470kHz 56.250Hz 36.000MHz 35.156kHz SVGA 800 × 600 40.000MHz 60.317Hz 37.879kHz VESA 75.000Hz 49.500MHz...
