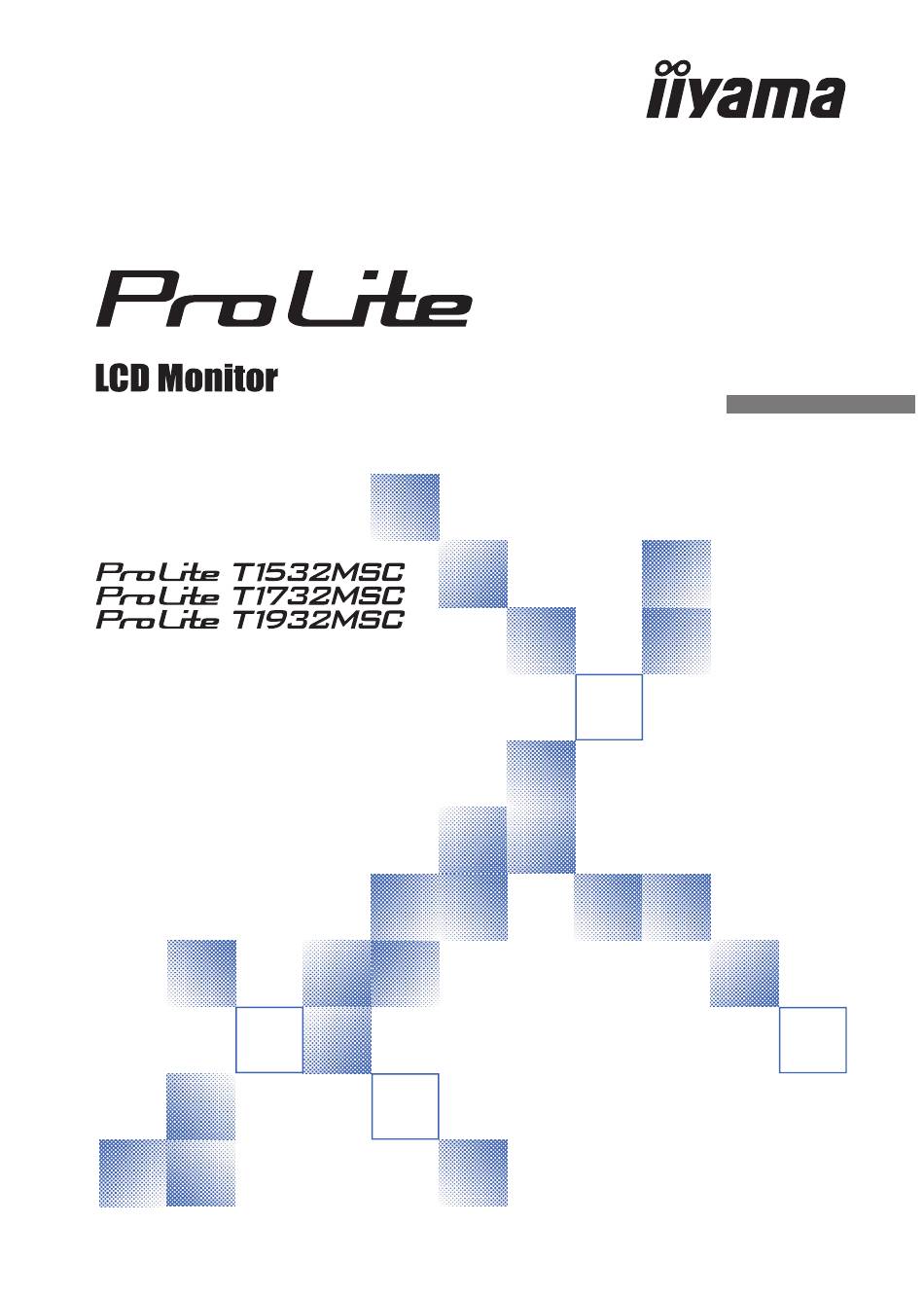

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PLT1532M / PLT1732M / PLT1932M We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com...
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......5 SPECIAL NOTES ON TOUCH PANEL..........5 WALL MOUNTING ................5 BUILT-IN EQUIPMENT ..............5 CONTROLS AND CONNECTORS..........6 CONNECTING YOUR MONITOR ...........7... -
Page 5: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself. -
Page 8: Before You Operate The Monitor
High Contrast 1000:1 (Typical) / Brightness 225cd/m (Typical: with Touch panel) : ProLite T1732MSC-B5X / ProLite T1732MSC-W5X / ProLite T1932MSC-B5X High Contrast 1000:1 (Typical) / Brightness 215cd/m (Typical: with Touch panel) : ProLite T1732MSC-B5AG / ProLite T1732MSC-W5AG / ProLite T1932MSC- B5AG / ProLite T1932MSC-W5AG ... -
Page 9: Checking The Contents Of The Package
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 10: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Menu Button ( Scroll Up / Brightness Button ( Scroll Down / Mute Button ( Select Button ( Power Switch ( Keyhole for Security Lock You can fasten a security lock and cable to prevent the monitor from being removed NOTE without your permission. -
Page 11: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 12: Computer Setting
Change to the desired signal timing listed on page 27: COMPLIANT TIMING. Windows XP/Vista/7/8/8.1/10 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. - Page 13 Touch Input Settings in Dual Screen Mode Connect the primary monitor to the computer fi rst. Set Control Panel > Hardware and Sound > Tablet PC Settings > Display > Setup. The following message will appear on the screen. Please follow the instructions. After setting , connect a second monitor and perform the setup as in NOTE...
-
Page 14: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor. Hold the panel so that the monitor does not topple when you change the monitor’s angle. You are able to adjust the monitor’s angle up to 90 degrees upward, 5 degrees downward. -
Page 15: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 27. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 17 for SCREEN ADJUSTMENTS. -
Page 16: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS CO N TR A ST B RI G HT N ES S 12 80 x1 02 4 F H: 63K Hz FV: 5 9. 9H z Adjustment Item Problem / Option Button to Press Too dull CONTRAST Too intense Too dark BRIGHTNESS *... - Page 17 Only Analog Input AU TO A D JU ST H- PO SIT ION V- PO SIT ION H -S IZE F IN E Adjustment Item Problem / Option Button to Press AUTO ADJUST * Adjust H/V-POSITION, H-SIZE and FINE automatically. Too left H-POSITION Too right...
- Page 18 O S D H- PO S I TI O N OS D V- P O S I TI O N OS D TI M E OU T RE S E T I N P UT S ELE C T Adjustment Item Problem / Option Button to Press OSD is too left...
- Page 19 ESPAÑOL ENGLISH FRANÇAIS DEUTSCH ITALIANO Adjustment Item Problem / Option Button to Press ENGLISH English ESPAÑOL Spanish Japanese FRANÇAIS French OSD LANGUAGE Traditional Chinese DEUTSCH German Simplifi ed Chinese ITALIANO Italian 9300 6500 5500 GREEN 7500 BLUE USER Adjustment Item Problem / Option Button to Press 9300...
- Page 20 VOLUME MUTE Adjustment Item Problem / Option Button to Press Too soft VOLUME Too loud Turn off the sound temporarily. MUTE Direct Return the sound volume to the previous level. Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations.
-
Page 21: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). - Page 22 Press the Button. (AUTO ADJUST) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V-POSITION so that the top and bottom of the picture frame will fit to the display area.
- Page 23 Adjust the FINE to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the H-SIZE may not be adjusted correctly. ...
-
Page 24: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. -
Page 25: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem Check ... -
Page 26: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. 22 RECYCLING INFORMATION... -
Page 27: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite T1532MSC Model Name ProLite T1532MSC-B5X ProLite T1532MSC-B5AG Technology Projected capacitive 10pt touch Touch Light transmission Screen Communication system Size Category 15" Panel technology Size Diagonal: 15" (38cm) Pixel pitch 0.297mm H ×... -
Page 28: Specifications : Prolite T1732Msc
SPECIFICATIONS : ProLite T1732MSC ProLite T1732MSC-B5X / ProLite T1732MSC-B5AG / Model Name ProLite T1732MSC-W5X ProLite T1732MSC-W5AG Technology Projected capacitive 10pt touch Touch Light transmission Screen Communication system Size Category 17" Panel technology Size Diagonal: 17" (43cm) Pixel pitch 0.264mm H × 0.264mm V 250cd/m (Typical: without Touch panel) Brightness... -
Page 29: Specifications : Prolite T1932Msc
SPECIFICATIONS : ProLite T1932MSC ProLite T1932MSC-B5AG / Model Name ProLite T1932MSC-B5X ProLite T1932MSC-W5AG Technology Projected capacitive 10pt touch Touch Light transmission Screen Communication system Size Category 19" Panel technology Size Diagonal: 19" (48cm) Pixel pitch 0.2928mm H × 0.2928mm V... -
Page 30: Dimensions : Prolite T1532Msc
DIMENSIONS : ProLite T1532MSC 351.0mm/13.8” 54.5mm/2.1” 305.0mm/12.0” 222.5mm/8.7” DIMENSIONS : ProLite T1732MSC 387.0mm/15.2” 54.5mm/2.1” 339.0mm/13.3” 222.5mm/8.7” DIMENSIONS : ProLite T1932MSC 432.0mm/17.0” 54.5mm/2.1” 377.5mm/14.9” 249.5mm/9.8” 26 APPENDIX... -
Page 31: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 37.879kHz 60.317Hz 40.000MHz 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.077kHz 72.188Hz 50.000MHz 48.363kHz 60.004Hz 65.000MHz 1024 ×...
