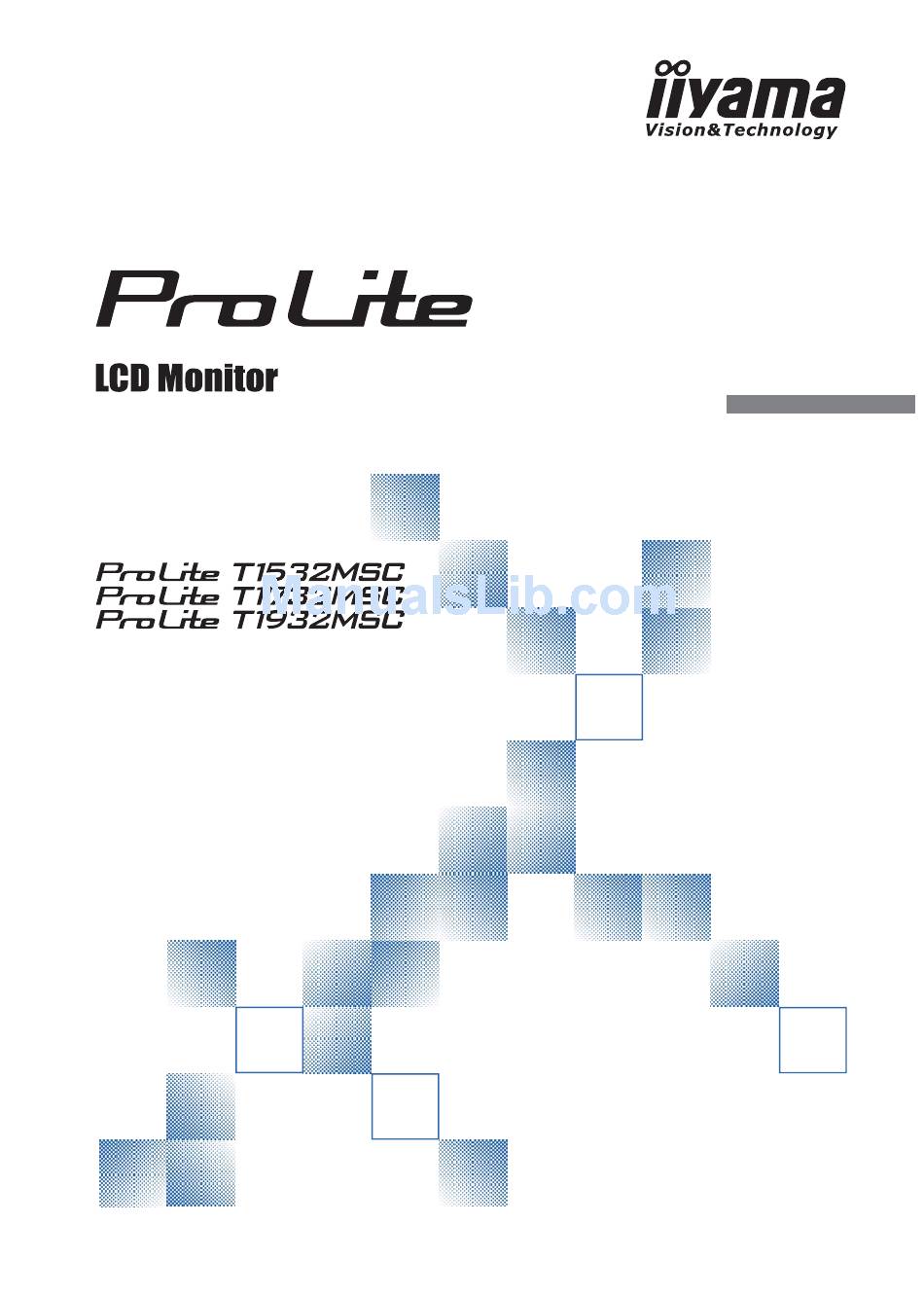

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for... -
Page 3: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Breguetlaan 8, 1438BC Oude Meer The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there. -
Page 4: Table Of Contents
SCREEN ADJUSTMENTS ............14 POWER MANAGEMENT FEATURE ...........17 TROUBLE SHOOTING ..............18 RECYCLING INFORMATION ............19 APPENDIX ..................20 SPECIFICATIONS : ProLite T1532MSC ........20 SPECIFICATIONS : ProLite T1732MSC ........21 SPECIFICATIONS : ProLite T1932MSC ........22 DIMENSIONS : ProLite T1532MSC ..........23 DIMENSIONS : ProLite T1732MSC ..........23 DIMENSIONS : ProLite T1932MSC ..........23... -
Page 5: For Your Safety
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fi re or electric shock. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself. -
Page 8: Before You Operate The Monitor
BEFORE YOU OPERATE THE MONITOR FEATURES Supports Resolutions up to 1024 × 768 : ProLite T1532MSC Supports Resolutions up to 1280 × 1024 : ProLite T1732MSC / ProLite T1932MSC High Contrast 500:1 (Typical: with Touch panel) / Brightness 225cd/m... -
Page 9: Checking The Contents Of The Package
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 10: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Menu Button ( Scroll Up / Brightness Button ( Scroll Down / Mute Button ( Select / Auto Button ( Power Switch ( Keyhole for Security Lock You can fasten a security lock and cable to prevent the monitor from being removed NOTE without your permission. -
Page 11: Connecting Your Monitor
The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama offi... -
Page 12: Computer Setting
Change to the desired signal timing listed on page 24: COMPLIANT TIMING. Windows 95/98/2000/Me/XP/Vista/7 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 13: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 24. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 14 for SCREEN ADJUSTMENTS. -
Page 14: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS CO NT R AS T BR I G HT NE S S 1 2 8 0 x1 0 2 4 FH : 6 3 K Hz F V: 59 . 9Hz Adjustment Item Problem / Option Button to Press Too dull CONTRAST Too intense... - Page 15 AU TO A D JU ST Only Analog Input H- PO SIT ION V-P OSIT IO N H - SIZ E F IN E Adjustment Item Problem / Option Button to Press Direct Adjust H/V-POSITION, H-SIZE and FINE automatically. AUTO ADJUST * Too left H-POSITION Too right...
- Page 16 OS D H - P OS I T I ON O S D V- P OS I TI ON OS D TI M E OU T RE S E T I N P UT S EL EC T Adjustment Item Problem / Option Button to Press OSD is too left...
- Page 17 9300 6500 5500 GREEN 7500 BLUE USER Adjustment Item Problem / Option Button to Press 9300 Bluish white Reddish white 6500 5500 Greenish white COLOR TEMP. Yellowish white 7500 Too weak GREEN USER Too strong BLUE VOLUME MUTE Adjustment Item Problem / Option Button to Press Too soft...
-
Page 18: Screen Adjustments
fl icker or blur for the particular computer in use. ProLite T1532MSC is designed to provide the best performance at resolution of 1024 × 768, but can not provide the best at resolutions of less than 1024 × 768 because the picture is automatically stretched to fi... - Page 19 C Press the Auto Button. (AUTO ADJUST) D Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. E Adjust the V-POSITION so that the top and bottom of the picture frame will fi...
- Page 20 G Adjust the FINE to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps F and NOTE G because the H-SIZE may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from C again.
-
Page 21: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. -
Page 22: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem Check ... -
Page 23: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. RECYCLING INFORMATION 19... -
Page 24: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite T1532MSC Touch Technology Projected capacitive Screen Light transmission 90% Communication USB serial transfer system Size Category 15" Driving system a-Si TFT Active Matrix Panel Size Diagonal: 15"... -
Page 25: Specifications : Prolite T1732Msc
SPECIFICATIONS : ProLite T1732MSC Touch Technology Projected capacitive Screen Light transmission 90% Communication USB serial transfer system Size Category 17" Driving system a-Si TFT Active Matrix Panel Size Diagonal: 17" (43cm) Pixel pitch 0.264mm H × 0.264mm V Brightness 225cd/m (Typical: with Touch panel) Contrast ratio 1000 : 1 (Typical: with Touch panel) -
Page 26: Specifications : Prolite T1932Msc
SPECIFICATIONS : ProLite T1932MSC Touch Technology Projected capacitive Screen Light transmission 90% Communication USB serial transfer system Size Category 19" Driving system a-Si TFT Active Matrix Panel Size Diagonal: 19" (48cm) Pixel pitch 0.294mm H × 0.294mm V Brightness 225cd/m (Typical: with Touch panel) Contrast ratio 800 : 1 (Typical: with Touch panel) -
Page 27: Dimensions : Prolite T1532Msc
DIMENSIONS : ProLite T1532MSC 351.0mm/13.8” 54.5mm/2.1” 305.0mm/12.0” 222.5mm/8.7” DIMENSIONS : ProLite T1732MSC 387.0mm/15.2” 54.5mm/2.1” 339.0mm/13.3” 222.5mm/8.7” DIMENSIONS : ProLite T1932MSC 432.0mm/17.0” 54.5mm/2.1” 377.5mm/14.9” 249.5mm/9.8” APPENDIX 23... -
Page 28: Compliant Timing
800 × 600 75.000Hz 49.500MHz 46.875kHz VESA 50.000MHz 72.188Hz 48.077kHz 60.004Hz 65.000MHz 48.363kHz 1024 × 768 70.069Hz 75.000MHz 56.476kHz 75.029Hz 78.750MHz 60.023kHz 60.020Hz 108.000MHz 63.981kHz SXGA 1280 × 1024 135.000MHz 75.025Hz 79.976kHz NOTE * Not compliant to ProLite T1532MSC. 24 APPENDIX M103A21...
