Removing Monitor Base - Fujitsu P24W-6 LED Operating Manual

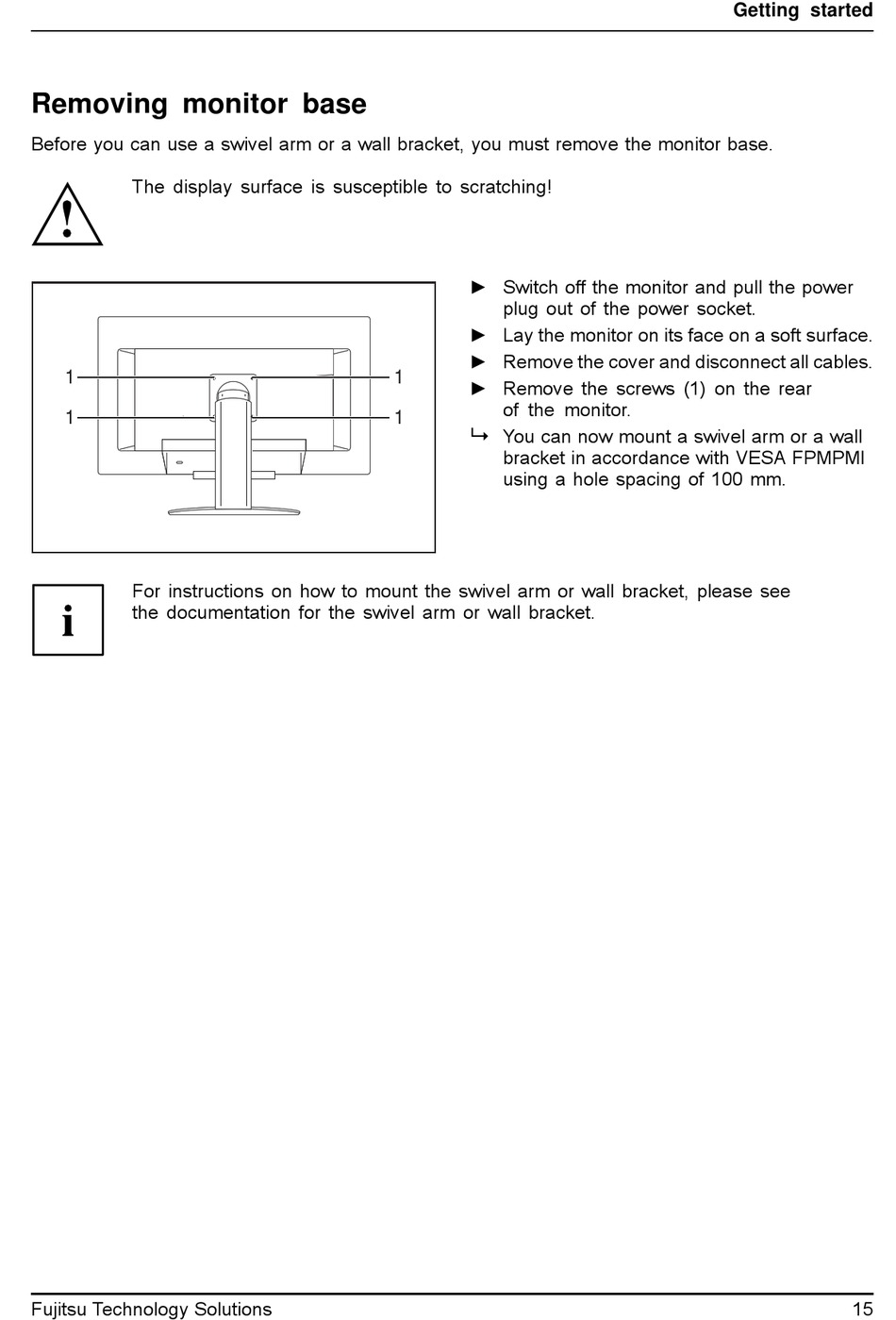

Removing monitor base

Before you can use a swivel arm or a wall bracket, you must remove the monitor base.
The display surface is susceptible to scratching!
1
1
For instructions on how to mount the swivel arm or wall bracket, please see
the documentation for the swivel arm or wall bracket.
Fujitsu Technology Solutions
► Switch off the monitor and pull the power
plug out of the power socket.
► Lay the monitor on its face on a soft surface.
► Remove the cover and disconnect all cables.
1
► Remove the screws (1) on the rear
of the monitor.
1

You can now mount a swivel arm or a wall
bracket in accordance with VESA FPMPMI
using a hole spacing of 100 mm.
Getting started
15
