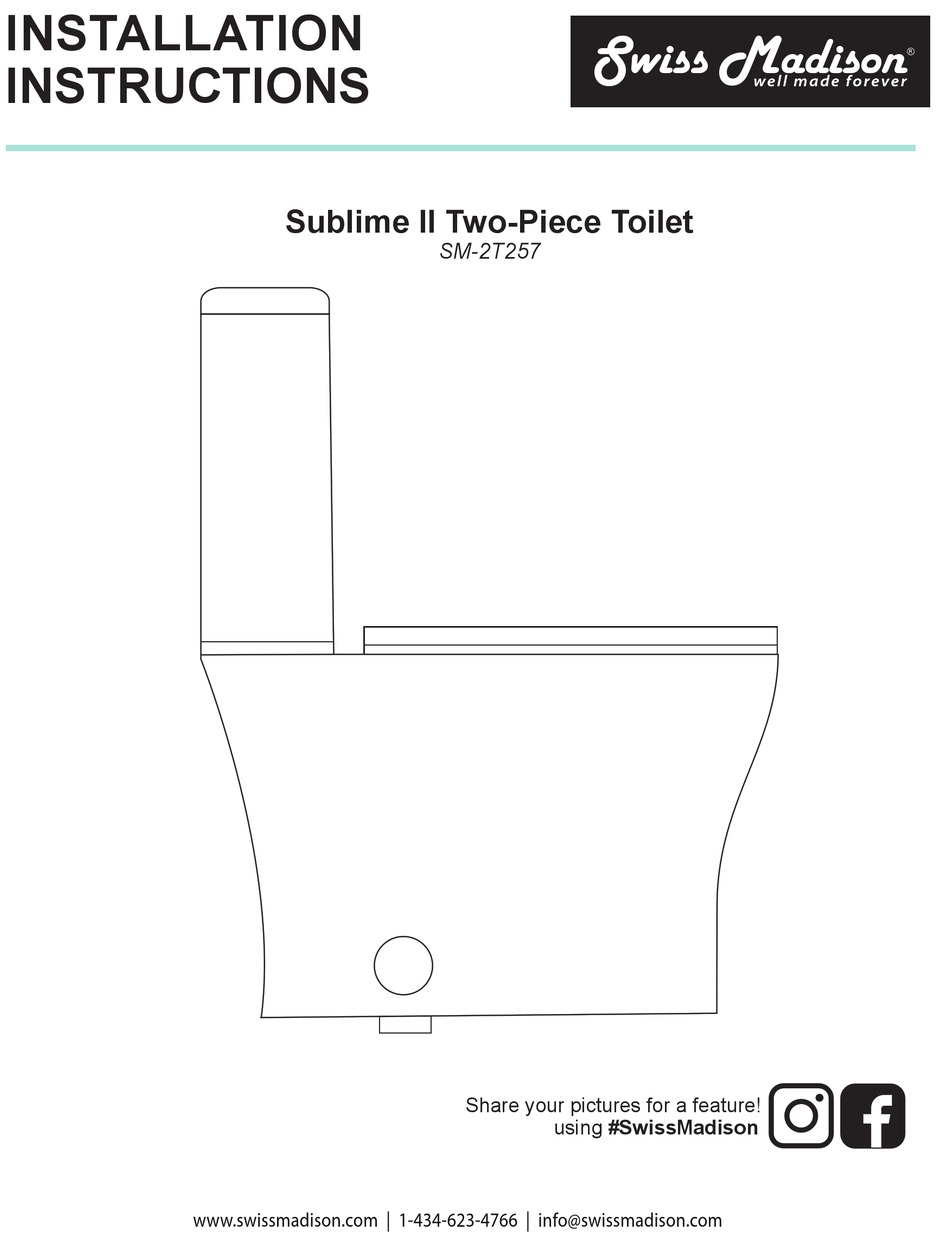

- Page 1 INSTALLATION wiss adison ® INSTRUCTIONS Sublime II Two-Piece Toilet SM-2T257 Share your pictures for a feature! using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Prior To Installation
Prior to Installation: Inspect toilet to ensure no damages have occurred while in shipping. Observe all plumbing and building codes in accordance with your state and local requirements. Remove old toilet. Make sure mounting surface is CLEAN and LEVEL All dimensions are nominal! Be sure to measure your toilet prior to installation. General Recommendations: Read installation and maintenance instructions thoroughly before installing the toilet. - Page 3 Thank you for your purchase Thank you for purchasing a Swiss Madison Two-Piece Toilet. We appreciate your business and know you will enjoy your toilet for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
-
Page 4: Parts List
Flexible Supply Tube Hacksaw Screwdriver PARTS LIST Wax Ring/ Gasket Bolts Side Cover Caps One-Piece Toilet NOTE: Specialized tools may be necessary to install a Swiss Madison One-Piece Toilet, plumbing not included. NOTE: All measurements are nominal. — 3 —... -
Page 5: Installation Instructions
TWO-PIECE TOILET INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison One-Piece Toilet. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional 1. - Page 6 3. Install Closet Bolts Install closet bolts to ange channel, turn 90° and slide into place 6” (152mm) apart and parallel to wall. Closet Flange Closet Bolts 4. Install Wax Seal Invert toilet on oor (use cushion to prevent damage), and install wax ring evenly around waste ange (horn), with tapered end of ring facing toilet.
- Page 7 5. Connect Supply Hose 6. Attach Gasket Position the gasket on the bowl inlet. Thread the supply hose onto the tank. 7. Position Tank onto Bowl Holes should line up so threaded rod can t smoothly connecting the cistern body to the bow. NOTE: Drawings may not exactly de ne contour of china.
- Page 8 8. Secure Tank to Bowl Slide the metal washer and the rubber washer onto the bolt. Thread the bolts into the bottom of the tank tighten the bolts using a screwdriver. NOTE: Do not over tighten! Over tightening can lead to the ceramic cracking. Metal Washer Bolt...
-
Page 9: Connect Plumbing
10. Install Toilet Position toilet squarely to wall and, with a rocking motion, press bowl down fully on wax ring and ange. Alternately tighten nuts until toilet is rmly sealed to oor. NOTE: DO NOT over-tighten nuts as it might crack the ceramic! Adhere bolt covers to toilet. -
Page 10: Check For Leaks
13. Connect Push Button Unscrew the big white nut on the push button and insert the button into the hole on the tank. When the rods meet the push buttons, measure the height (H) with a ruler. Unscrew the rods and cut the part H on both rods. Insert the rods back and tighten the small nut. - Page 11 15. Install Toilet Seat Place seat hardware over where the Insert threaded rubber piece into threaded rubber pieces were inserted. holes on top of toilet. Place washer onto screw then thread screw through the seat hardware into the rubber piece. Before you fully screw in hardware, be sure to test position by placing the seat on top and making adjustments if needed.
- Page 12 The Swiss Madison® warranty is a comprehensive and explicit limit of liability, and all items outside of it are not addressable by or the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties and in those situations we remain fully compliant.
