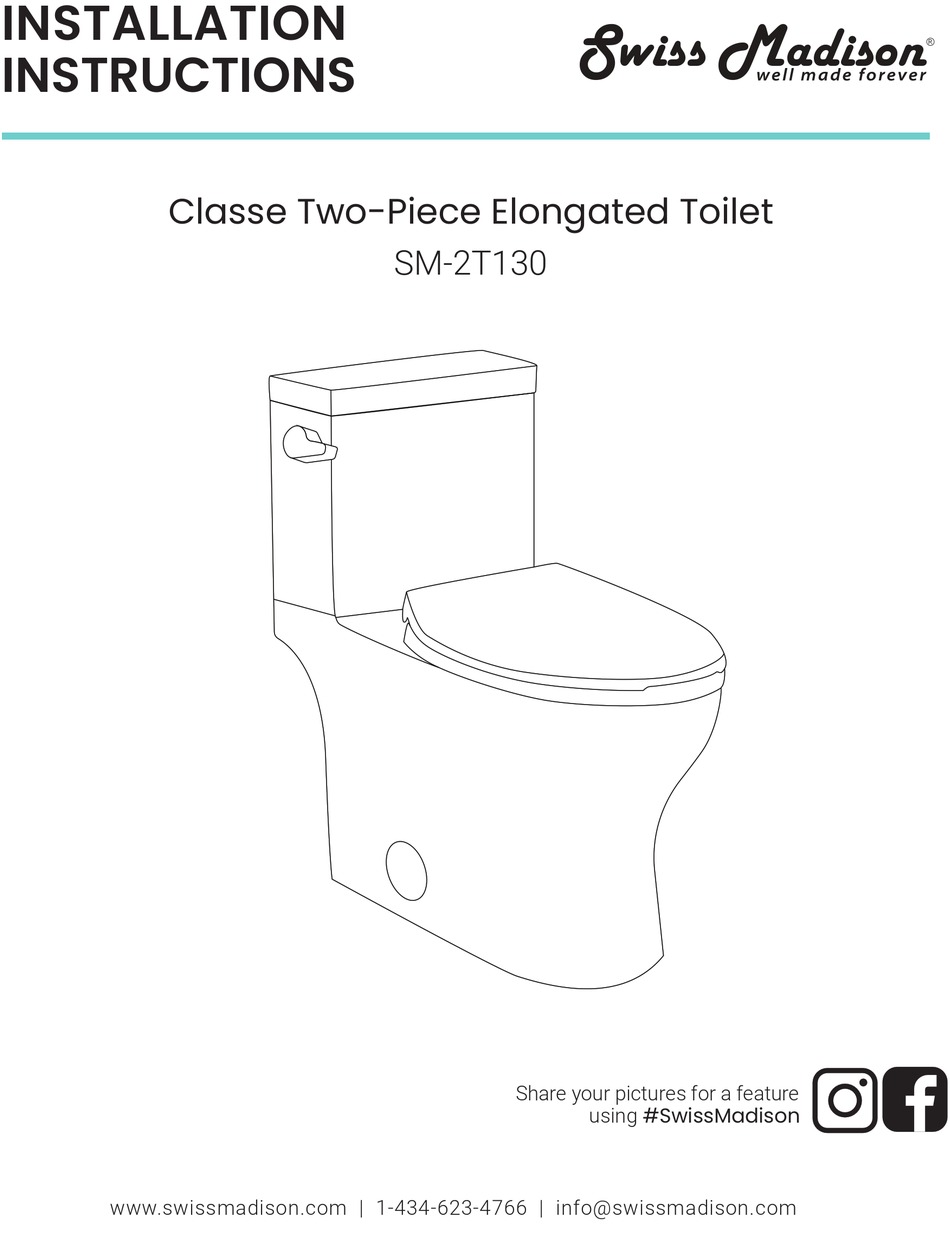

- Page 1 INSTALLATION wiss adison ® ® INSTRUCTIONS Classe Two-Piece Elongated Toilet SM-2T130 Share your pictures for a feature using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Prior To Installation
Prior to Installation: Inspect toilet to ensure no damages have occurred while in shipping. Observe all plumbing and building codes in accordance with your state and local requirements. Remove old toilet. Make sure mounting surface is CLEAN and LEVEL. All dimensions are nominal! Be sure to measure your toilet prior to installation. General Recommendation: Read installation and maintenance instructions thoroughly before installing. - Page 3 Thank you for your purchase! Thank you for purchasing a Swiss Madison Two-Piece Toilet. We appreciate your business and know you will enjoy your toilet for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
-
Page 4: Parts List
Flexible Supply Tube Hacksaw Screwdriver PARTS LIST Two-Piece Toilet Wax Ring / Gasket Bolts Side Cover Caps NOTE: Specialized tools may be necessary to install a Swiss Madison Two-Piece Toilet, plumbing not included. NOTE: All measurements are nominal. — 3 —... -
Page 5: Installation Instructions
TWO-PIECE TOILET INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Two-Piece Toilet. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional 1. - Page 6 TWO-PIECE TOILET INSTALLATION INSTRUCTIONS 3. Install Closet Bolts · Install closet bolts to flange channel, turn 90° and slide into place 6” (152 mm) apart and parallel to wall. Closet Flange Closet Bolts 4. Install Wax Seal · Invert toilet on floor (use cushion to prevent damage), and install wax ring evenly around waste flange with tapered end of ring facing toilet.
- Page 7 TWO-PIECE TOILET INSTALLATION INSTRUCTIONS 5. Connect Supply Hose 6. Attach Gasket · Thread the supply hose onto the tank. · Position the gasket on the bowl inlet. 7. Position Tank onto Bowl · Holes should line up so threaded rod can fit smoothly, connecting the cistern body to the bowl. NOTE: Drawings may not exactly define contour of china.
- Page 8 TWO-PIECE TOILET INSTALLATION INSTRUCTIONS 8. Secure Tank to Bowl · Slide the metal washer and the rubber washer onto the bolt. · Thread the bolts into the bottom of the tank tighten the bolts using a screwdriver. NOTE: Do not overtighten! Overtightening can lead to the ceramic cracking. Metal Washer Bolt...
-
Page 9: Connect Plumbing
TWO-PIECE TOILET INSTALLATION INSTRUCTIONS 10. Install Toilet · Position toilet squarely to wall and, with a rocking motion, press bowl down fully on wax ring and flange. Alternately tighten nuts until toilet is firmly sealed to the floor. NOTE: Do not overtighten! Overtightening can lead to the ceramic cracking. ·... - Page 10 TWO-PIECE TOILET INSTALLATION INSTRUCTIONS 13. Connect Push Button · Unscrew the big nut on the push button and insert the button into the hole on the tank. · When the rods meet the push buttons, measure the height (H) with a ruler. ·...
- Page 11 TWO-PIECE TOILET INSTALLATION INSTRUCTIONS Toilet Seat Installation 1. Dissassemble · Disassemble the cover cap and the hinge. Pull 2. Construct Hinges · Insert screw and nut into the hole on the hinge. · Attach blind hole screw fixing to the bottom on the screw. 3.
- Page 12 TWO-PIECE TOILET INSTALLATION INSTRUCTIONS 4. Adjust and Cover Hinges · Be sure the hinge is all the way forward for proper seat fitting. · Place the covers onto the hinges. Incorrect: Correct: 5. Adjust and Attach Seat · Align seat to the hinges then firmly tighten the hinges. ·...
- Page 13 If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
