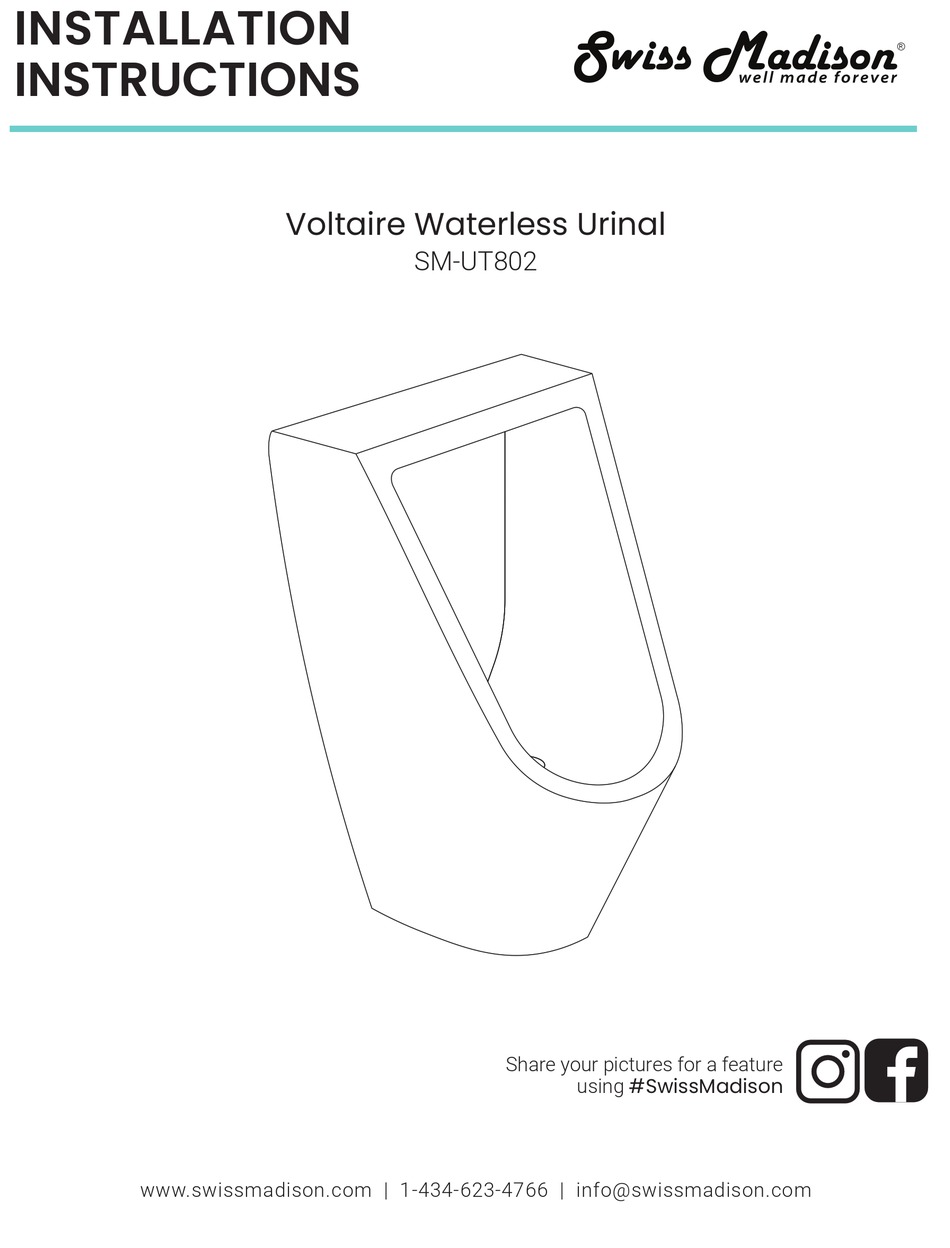

- Page 1 INSTALLATION wiss adison ® ® INSTRUCTIONS Voltaire Waterless Urinal SM-UT802 Share your pictures for a feature using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Prior To Installation
Thank you for your purchase! Thank you for purchasing a Swiss Madison Urinal. We appreciate your business and know you will enjoy your product for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com. -
Page 3: Parts List
Drill (Ø 5/16 bit) Glasses PARTS LIST · Waterless Urinal · Fixing Kit · PVC Connecting Tubes · Maintenance Key NOTE: Specialized tools may be necessary to install a Swiss Madison Urinal, plumbing not included. NOTE: All measurements are nominal. — 2 —... -
Page 4: Installation Instructions
WATERLESS URINAL INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Urinal. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional 1. - Page 5 WATERLESS URINAL INSTALLATION INSTRUCTIONS 2. Drill According to Wall Material · Drill the mark with Ø 5/16” drill bit for concrete (not included). · For installations with wood framing, sheet rock and tile, you will need to put proper backing behind wall before installation the product. NOTE: 3/4”...
- Page 6 WATERLESS URINAL INSTALLATION INSTRUCTIONS 4. Install Connecting Tubes · Insert the trap connector or adapter into the drain pipe, make sure the drain pipe is rigid and fixed to the wall. · Insert the tube into the drain, cut tube if necessary. NOTE: If the drain pipe is a different diameter it is recommended to buy a sanitary coupling or adapter as needed.
- Page 7 WATERLESS URINAL INSTALLATION INSTRUCTIONS 6. Secure Mount · Remove urinal and bracket from the wall. · Mark the missing holes in the bracket with a pencil. · Drill remaining marks with Ø 5/16” drill bit for concrete (not included). · Insert anchors into the marked holes. ·...
- Page 8 WATERLESS URINAL INSTALLATION INSTRUCTIONS 7. Secure Urinal · Mount urinal on bracket and reattach to cartridge and piping. · Verify the tilt of the pipe elbow is adequate to avoid stagnation and bad odors. cartridge NOTE: Drawings may not exactly define contour of china. —...
-
Page 9: Cleaning And Maintenance
WATERLESS URINAL CLEANING & MAINTENANCE 8. Daily Cleaning · Perform daily cleaning with cleaning product of your choice. · It is very important to pour at least one gallon of clean or recycled water everyday. NOTE: Use soft fibers to avoid scratching the ceramic. 9. -
Page 10: One-Year Limited Warranty
If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
