Ryobi RSCD750 Owner's Operating Manual

750w clean & dirty sumbersible pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

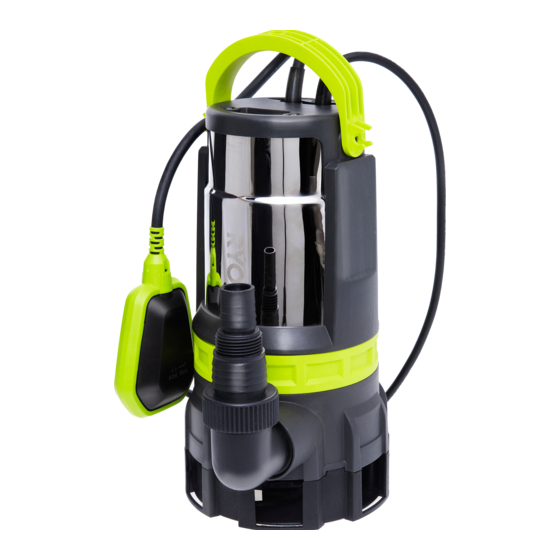

RSCD750
750W CLEAN & DIRTY
SUMBERSIBLE PUMP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSCD750 and is the answer not in the manual?

Questions and answers

Related Manuals for Ryobi RSCD750

Summary of Contents for Ryobi RSCD750

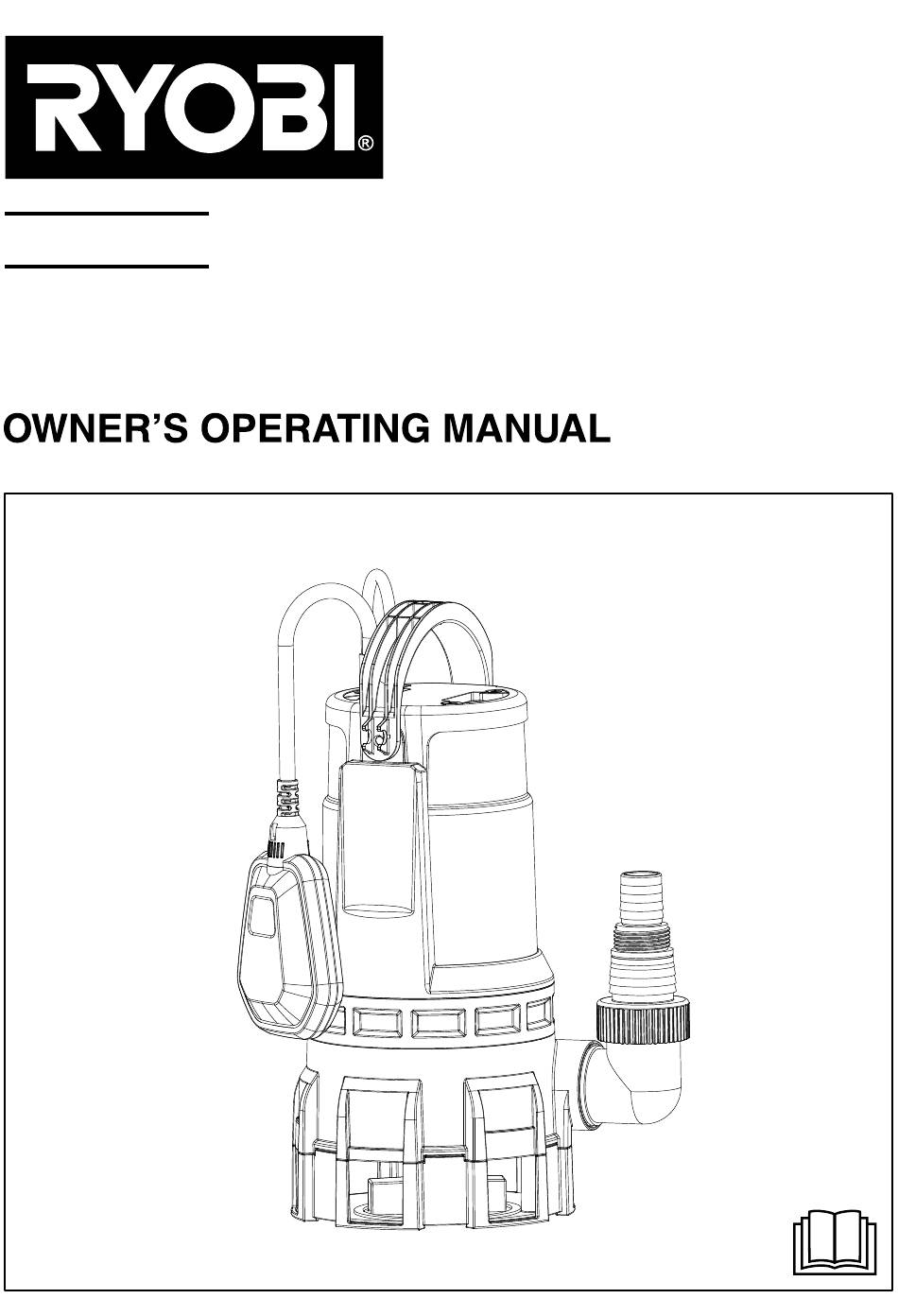

  • Page 1 RSCD750 750W CLEAN & DIRTY SUMBERSIBLE PUMP...
  • Page 2 DESCRIPTION RSSS750 Components List 1. Water outlet 2. Pump base 3. Suction port 4. Floating switch 5. Cable of floating switch 6. Cable holder 7. Carry handle 8. Power cable 9. Pressure relief valve 10. Pump housing 11. Right angle adaptor...
  • Page 3 DESCRIPTION 30° 30° Fig. 1 Fig. 2 PUSH START 100mm minimum STOP Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8...
  • Page 4 Important! It is essential that you read the instructions in this manual before assembling, operating and maintaining the product. Subject to technical modification.

  • Page 5: General Safety Warnings

    ■ W h e n s e r v i c i n g t h e p r o d u c t , u s e o n l y GENERAL SAFETY WARNINGS manufacturer’s replacement parts, accessories ■ Read all safety warnings and all instructions. and attachments.

  • Page 6: Maintenance

    INSTALLATION INTENDED USE WARNING ■ RYOBI Submersible dirty water pumps are highly efficient electrical pumps for discharging clean or During the entire process of installation, the device dirty water containing solids up to the maximum size must not be connected to the electrical mains.

  • Page 7: Electrical Connection

    HOW TO SWITCH BETWEEN CLEAN AND DIRTY make sure that the pump is not exposed to any form of weight, vibration or tension. Moreover, the WATER APPLICATION connection lines must not contain any kinks. 1. When you want to switch between CLEAN and DIRTY application, put down the pump base, and INSTALLATION OF THE PRESSURE LINE find the arrow direction.

  • Page 8: Putting Into Operation

    ■ The electrical RYOBI pumps are equipped with sales. Any repair beyond the scope specified below an integrated thermal motor protection feature.

  • Page 9: Specifications

    ■ Your pump is equipped with a purge which is used to evacuate the air. Ensure that this purge is clean. SPECIFICATIONS RSCD750 Rated Power 750W Max. Head Max. Immersion Depth Max. Water Flow 16,500L/hr Max.
  • Page 10 COMMON FAILURES AND TREATMENT Malfunction Possible cause Elimination Thermal motor protection feature has Separate the pump from the electrical triggered. (for information on operation with mains, allow the system to cool down, liquids > 50°C, see the note in Technical eliminate cause.
  • Page 12 Imported by: Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C 70 Business Parade South Highbrook Auckland 2013 New Zealand...
