6. With control knob pressed in, push
down and release ignitor button. This
will light pilot. The pilot is attached to
the rear of the burner. If needed, keep
pressing ignitor button until pilot lights.
Note: If pilot does not stay lit, refer to
Troubleshooting, pages 25 though 28.
Also contact a qualified service technician
or gas supplier for repairs. Until repairs
are made, light pilot with match. To light
pilot with match, see Manual Lighting
Procedure.
7. Keep control knob pressed in for 10 sec-
onds after lighting pilot.
Note: If pilot goes out, repeat steps 5
through 7. Wait one (1) minute before
lighting pilot again.
9. To select the desired heating level, slightly
press the control knob and turn counter-
clockwise
pressure on the knob while continuing to
turn until the knob locks at the desired
setting. Do not operate between locked
positions.
Shutting Off Heater
Turn control knob clockwise
OFF position.
1. Follow steps 1 through 5 under Lighting
Instructions, page 21.
2. With control knob pressed in, strike a
match, and hold near pilot. Pilot should
light.
22
OPERATION
. Release the downward
TO TURN OFF GAS TO APPLIANCE
to the
MANUAL LIGHTING PROCEDURE
www.usaprocom.com
Note: Please wait one minute after shut-
ting off heater to allow the control valve
to reset before starting again.
10. If the gas logs will not operate, see To Turn
Off Gas to Appliance and call our technical
service department at 1-866-573-0674.
CAUTION: Do not try to ad-
just heating levels by using the
equipment shutoff valve.
Ignitor
Thermocouple
Electrode

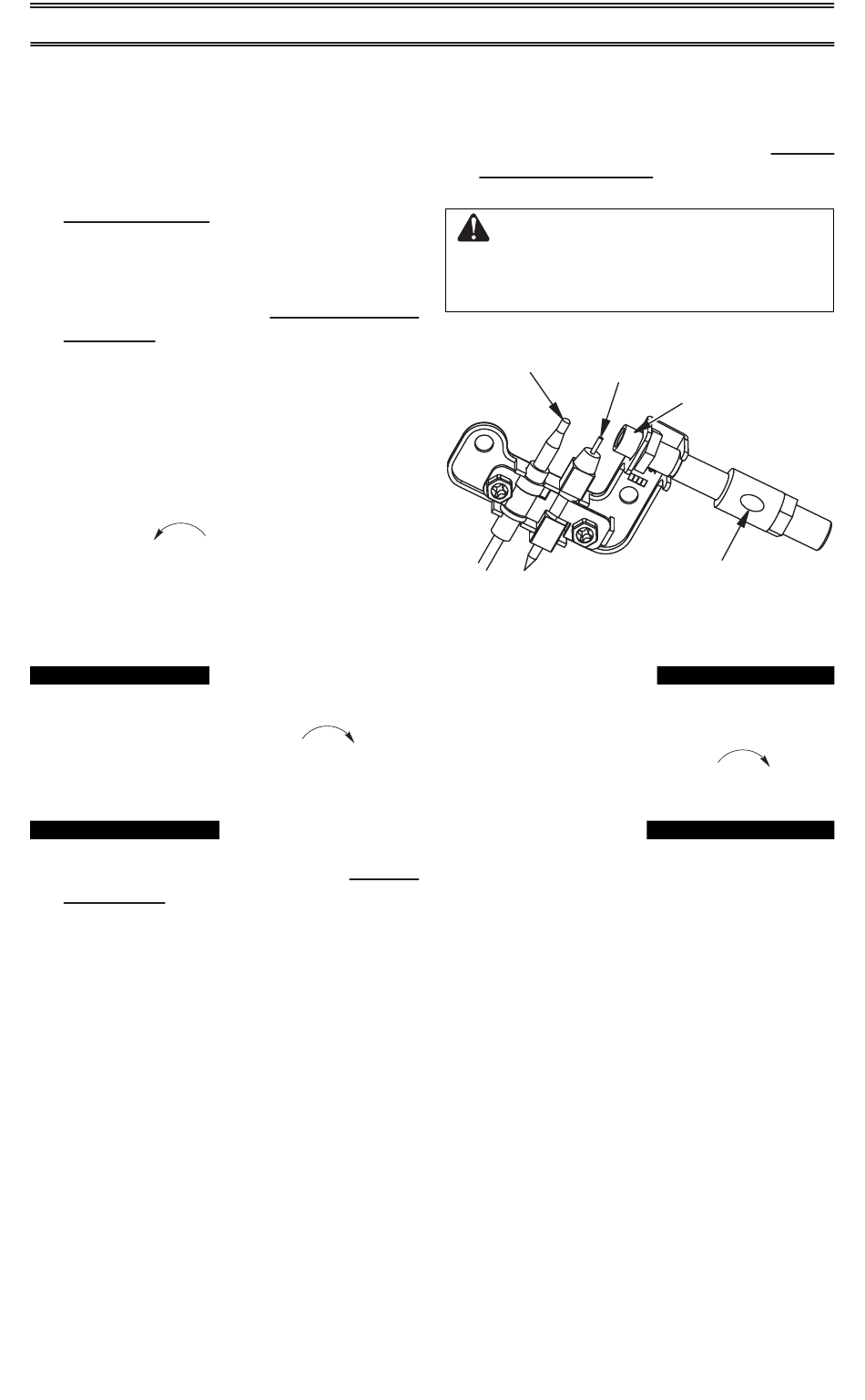

Figure 30 - Pilot Assembly HLA Models
Shutting Off Burner Only (pilot
stays lit)
Turn control knob clockwise
PILOT position.
3. Keep control knob pressed in for 30 sec-
onds after lighting pilot. After 30 seconds,
release control knob.
4. Make sure the heater screen is in place
before operating heater.
Pilot Burner
Pilot Air Inlet Hole
to the
200068-01A
