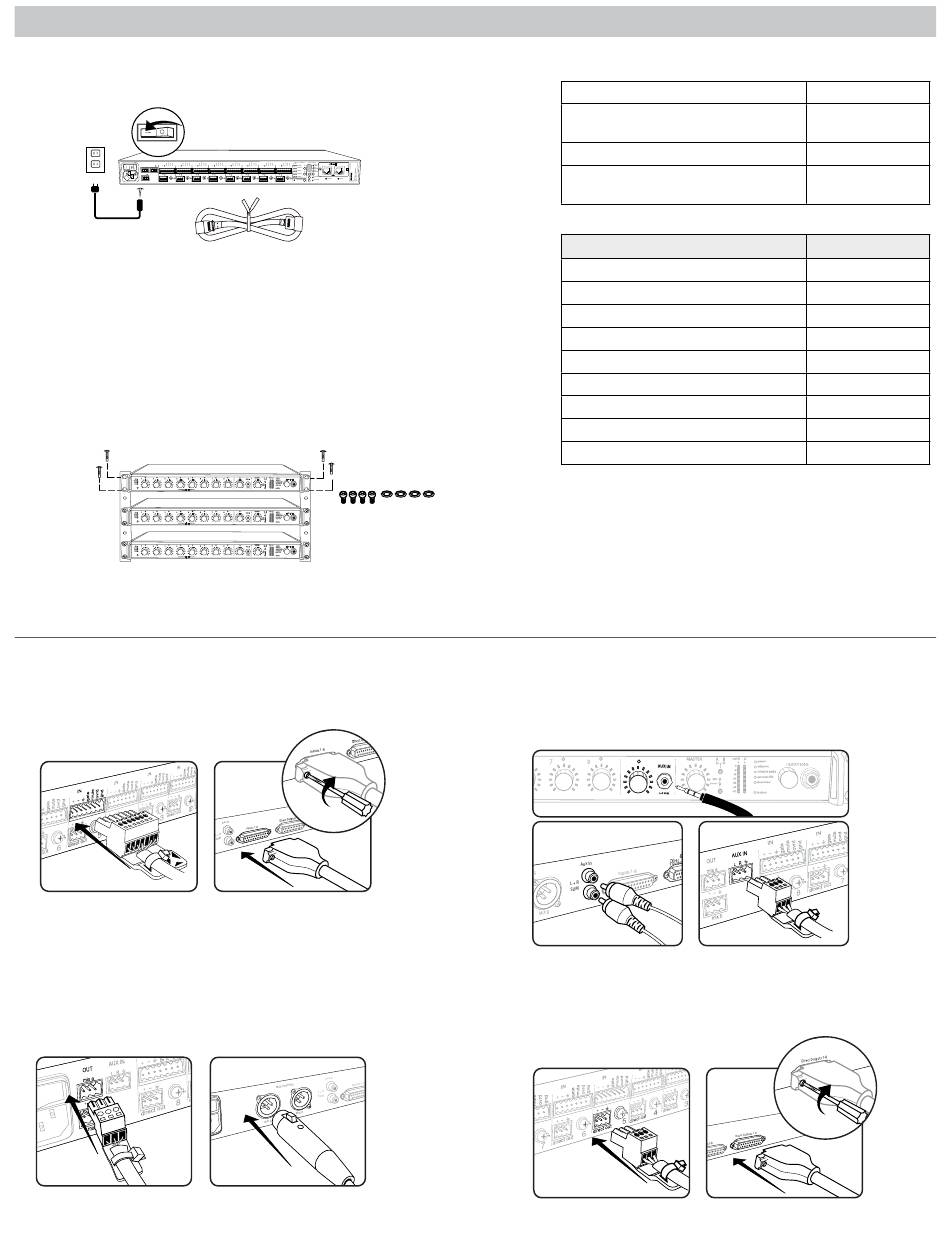

Power

Connect the unit to AC power using the supplied IEC cable. Turn on the power switch.
OUT AUX IN IN IN
+ + +
mix a L R
+ + + +
8 7
mix b direct out direct out direct out

Rackmounting

Rackmount the mixer using the screws and washers supplied in the Hardware Kit.
Follow these general best practices when rackmounting equipment:
• Ambient temperature of the rack should not exceed specified operating
temperature range of the device.
• Keep fan inlet and side air vents clear from obstructions and provide adequate
space for airflow within the rack.
• When possible, provide 1 RU of empty space between each device.
1 2 3 4 5
push to solo | hold to mute
1 2 3 4 5
push to solo | hold to mute
1 2 3 4 5
push to solo | hold to mute

Typical Audio Connections

① Channel Inputs
• Microphones
• Insert send from a mixer
• Dante network audio
③ Mix Outputs
• Amplifier
• Powered speakers
• Mixer channel inputs
8
IN IN IN IN IN IN
+ + + + +
+ + + + +
6 5 4 3 2 1
direct out direct out direct out direct out direct out
6 7 8
HEADPHONE
6 7 8
HEADPHONE
6 7 8
HEADPHONE

Installation

Furnished Accessories

Hardware Kit (SCM820, SCM820-DAN) 90A20082
Hardware Kit (SCM820-DB25,
SCM820-DAN-DB25)
Ethernet cable
Power Cable
US
Brazil
Argentina
Europe
UK
Japan
China
Korea
Australia
② Aux Inputs
Aux-level sound sources:
• MP3 player
• Computer headphone output
• CD player
6 7 8
④ Direct Outputs
• Insert returns to a mixer
• Recording device
• Mixer channel inputs
Power Cable by Region
HEADPHONE
90BA8100
95D15103
region dependent,
see table
Part Number
95B8389
95A14336
95A14335
95C8247
95A8713
95B9021
95B9073
95B9074
95A9128
