Summary of Contents for Shure SCM262
- Page 1 SCM262 Stereomixer The Shure stereo microphone mixer, SCM262, user guide. Version: 4 (2019-G)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents Interne wijzigingen SCM262Stereomixer Internal Modifications Disassembly BELANGRIJKE VEILIGHEIDSINSTRUCTIES Supplied Hardware General Description Rackmount Installation Features Stand-Alone Installation Front Panel Fixed Installation Rear Panel Productgegevens DIP Switches Voltage Gain (typical, controls full clockwise) Applications Vervangingsonderdelen General Application... -
Page 3: Scm262Stereomixer
Shure Incorporated SCM262 Stereomixer BELANGRIJKE VEILIGHEIDSINSTRUCTIES LEES deze instructies. BEWAAR deze instructies. NEEM alle waarschuwingen in acht. VOLG alle instructies op. GEBRUIK dit apparaat NIET in de buurt van water. REINIG UITSLUITEND met een droge doek. DICHT GEEN ventilatieopeningen AF. Zorg dat er voldoende afstand wordt gehouden voor adequate ventilatie. Instal... -
Page 4: General Description
General Description The Shure Model SCM262 is a stereo mixer intended for sound reinforcement applications that integrate microphones with consumer stereo products. It incorporates two activebalanced microphone inputs with three unbalanced stereo aux level in... -

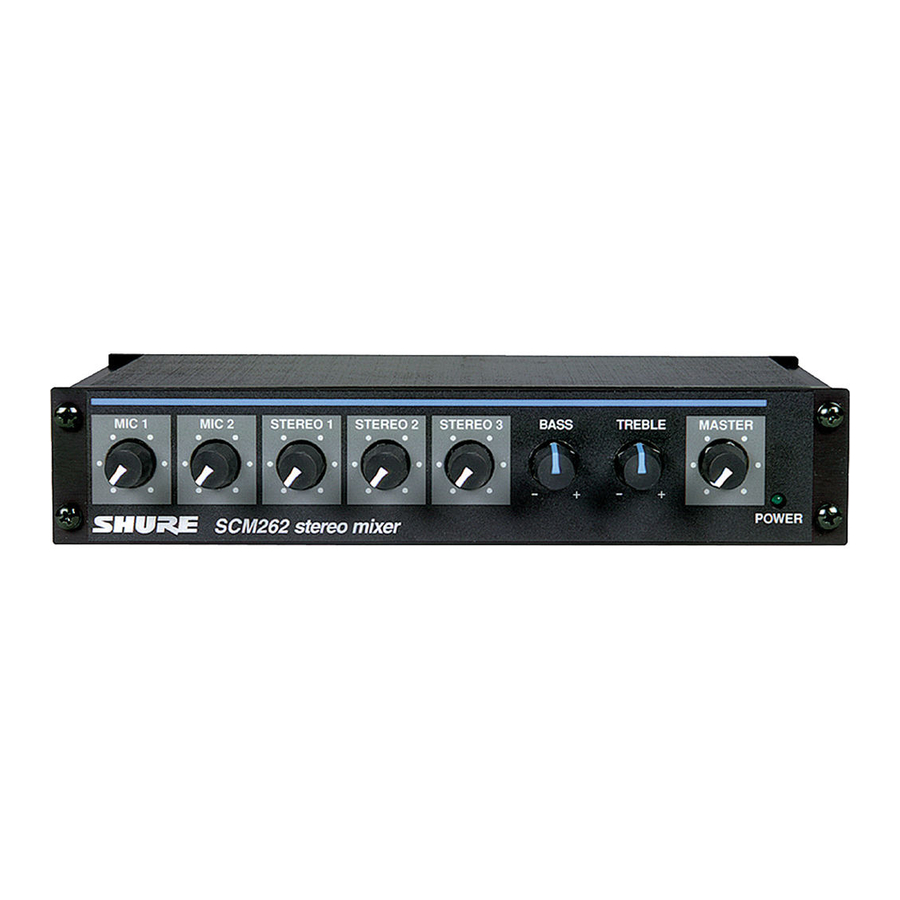

Page 5: Front Panel
Lights up to indicate when the unit is plugged in and receiving power. The SCM262 does not have a power switch. To turn the unit off, unplug the power cord or use an external power strip with a switch. However, it can remain plugged in as it uses very little power when idle. -
Page 6: Rear Panel
These phono jacks are stereo, unbalanced outputs for use with consumer stereo equipment. ④ DIP Switches. These allow you to adjust the SCM262 for specific applications. See DIP Switches. ⑤ Left/Right STEREO INPUTS, 1-3. These phono jacks are stereo inputs for connection to consumer stereo devices. - Page 7 LEFT/RIGHT OUTPUT MIC/LINE: DIP switches 1 and 2 adjust the left and right outputs for line- or mic-level operation. MIC 1/MIC 2 Ducking: When ducking is on, the SCM262 will automatically lower the gain of all STEREO inputs when someo...
-
Page 8: Applications
AC power supply. The green POWER LED will illuminate to indicate that the mixer is powered on. Note: The SCM262 has no power switch*. It is designed to be plugged into a power strip which supports the whole sound system. A typical power strip will have a power switch, so that when the power strip is powered on, the SCM262 is powered on. -
Page 9: Connections
Shure Incorporated This feature is designed especially for use with jukeboxes, but will work for any equipment connected to STEREO 3. Set DIP Switch 6 to the down position (Jukebox Mute on). If the ducking application is used in conjuction with the Jukebox Mute application, then activated microphones will mute or duck the STEREO 3 input. -
Page 10: Disassembly
Slide the back panel and pc board out from the rear of the chassis. When reassembling the SCM262, DO NOT OVERTIGHTEN the knob retainer nuts. Use a minimal amount of force to secure the nut (0.6-0.8 N-m (5-7 in-lb)). Damage to the internal components will result if too much force is used. - Page 11 Shure Incorporated Capacitor Value Corner Frequency .033 µF 803 Hz .047 µF 564 Hz .068 µF 390 Hz .1 µF 265 Hz .22 µF 120 Hz Capacitor Value Corner Frequency .33 µF 80 Hz .47 µF 56 Hz .68 µF 39 Hz 1.0 µF...
-
Page 12: Supplied Hardware
4 wood screws, 1/2 in. (1.25 cm). For fixed installations. Rackmount Installation The SCM262 can be mounted as a single unit or dual-mounted with either another SCM262 or another Shure half-rack unit such as the SCM268 or DFR11EQ. Attach the rackmount brackets using one of the following methods: Single unit (half-rack) installation: Attach the short and long rackmount brackets to the SCM262 with eight (8) of the supplied bracket screws. - Page 13 Shure Incorporated Dual-mounted installation: Connect the two units together side-by-side using two (2) straddle brackets. The brackets should straddle the recessed edges on the top and bottom of each chassis. Fasten them using eight (8) bracket screws. Be sure to use both straddle brackets-one on the top and one on the bottom.
-
Page 14: Stand-Alone Installation
Fixed Installation To permanently affix the SCM262 above or below a table, shelf, or counter top, use the following steps: Fasten the straddle brackets to the recessed edges of the chassis using four (4) bracket screws. - Page 15 Shure Incorporated 15/19...
-
Page 16: Productgegevens
Shure Incorporated Productgegevens Frequentiekarakteristiek bij 1 kHz Microfoon/lijn-schakelaar 150 Hz tot 20 kHz ±2 dB Aux-ingang 20 Hz tot 20 kHz ±2 dB Hoogdoorlaatfilter –6 dB/octaaf beneden 80 Hz 16/19... - Page 17 Shure Incorporated Totale harmonische vervorming 1 kHz, +4 dBu uit, menguitgang (MASTER) bij +0 dB <0,25% Equivalente ingangsruis 150 Ω gebalanceerde bron, A-gewogen -128 dBV Uitgangsruis Kanaalregeling volledig linksom, A-gewogen Master volledig linksom -95 dBV Master volledig rechtsom -59 dBV Common Mode Rejection >70 dB, bij 1 kHz...
-
Page 18: Voltage Gain (Typical, Controls Full Clockwise)
Output Clipping Level >600 Ω 3 Ω -22 dBV Line >5 kΩ 300 Ω +18 dBV ≥10 kΩ 1.5 kΩ +5 dBV Vervangingsonderdelen Knob, Master (blue) 95B8752 Knob, Channel Gain (white) 95A8752 Line (Power) Cords: SCM262: 100-120 Vac (US/Canada) 95B8762 18/19... -
Page 19: Optionele Accessoires
Line (Power) Cord, 230-240 Vac (UK) 95A8713 Serviceverklaring Voor meer informatie over service of onderdelen kunt u contact opnemen met de serviceafdeling van Shure op 1-800-516-2525. Buiten de Verenigde Staten kunt u contact opnemen met uw erkende Shure Service Center. Certificering Dit product voldoet aan de essentiële vereisten van alle toepasselijke Europese richtlijnen en komt in aanmerking voor CE-...
