INSTALLATION MANUAL
NELO706 SERIES SURFACE MOUNT SPEAKERS

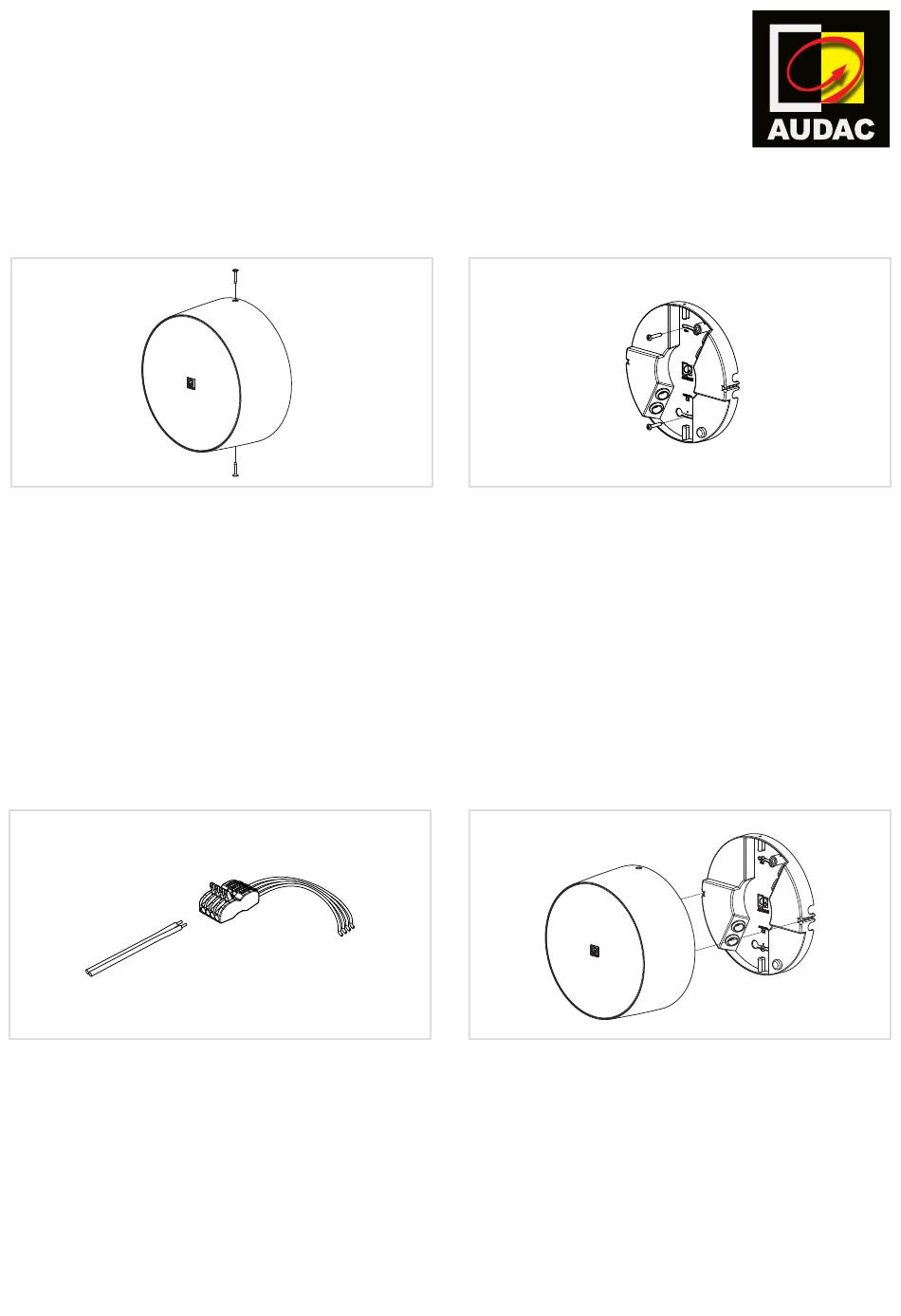

STEP 1

The NELO706 series speakers are delivered assembled.
For installation, both parts (speaker part and wall
part) needs to be taken apart. This is done through
releasing both screws (top and bottom) of the speaker,
and removing both parts from each other.

STEP 3

Connect the wires coming from the amplifier to the
SnapConnect™ on the rear speaker part.
The correct power tapping is chosen by connecting the
appropriate terminals of the connector. A description
of the power tap selection is shown on the magnet
sticker on the rear side of the loudspeaker.
NELO706:
White: 833 Ω - 70V/6W
Red: 1667 Ω - 100V/6W - 70V/3W
Blue: 3333 Ω - 100V/3W - 70V/1.5W
Black: COM

STEP 2

The wall part has to be assembled to the provided
location on the wall or ceiling. This is done through
knocking out the provided areas (teardrop holes) for
the fasteners. Choose the fasteners depending on the
mounting surface (concrete, wooden, steel, ...) The
distance between both mounting positions is 130 mm.
Also make sure the connection cables are provided
through the designated openings (grommets) for
connecting the speaker accordingly.

STEP 4

Assemble both speaker and wall part again through
joining both parts together. Make sure the speaker
part is in the right direction to make sure it can easily
slide into position. Once in position, insert both screws
again to tighten both parts together.
The speaker is now ready for use.
