AUDAC CALI Series Installation Manual

INSTALLATION MANUAL
CALI SERIES SAFE-LATCH™ CEILING SPEAKERS WITH REAR-DOME

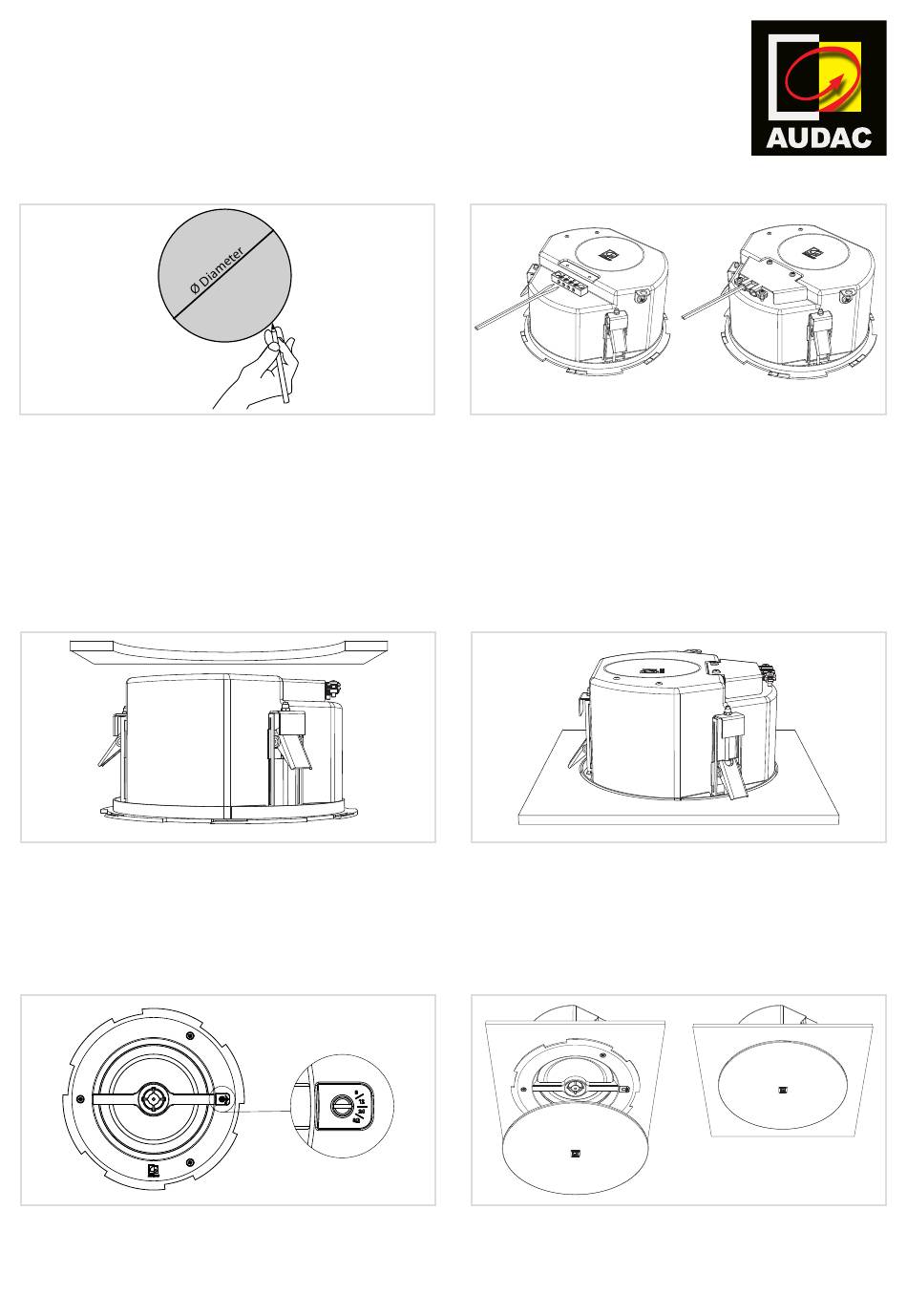

STEP 1
Cut a hole on the mounting location in the ceiling.
Make sure the diameter is matching the cut-out
measurement for the loudspeaker.
Double check if there are no cables or other
obstructions behind the mounting surface before
making the cut-out.
STEP 3
Make sure the spacing between the mouting surface
and the clamp is bigger than the thickness of your
ceiling plate. Insert the speaker until the clamps snap
in place

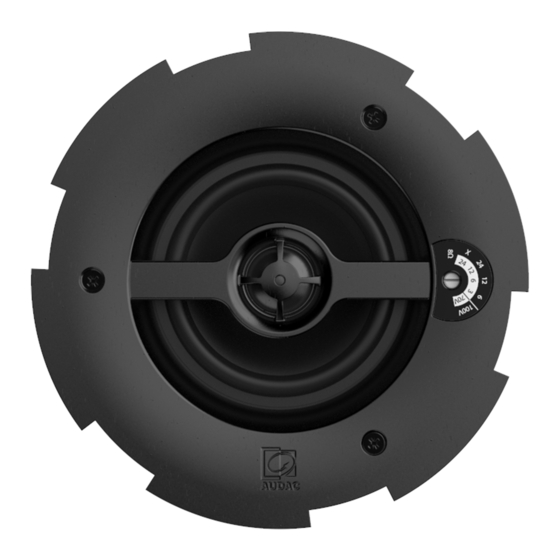

STEP 5
Using a flat head screwdriver, the power tap or low
impedance selection can be made.
STEP 2
Remove the cover and connect the cables to the
ceramic connection terminal by inserting the cable in
the corresponding hole and tightening the screw. The
remaining two terminals can be used to link through
to other speakers.
Reattach the cover plate and tighten the cable strain
relief.
STEP 4
Fix the speaker in the provided opening by tightening
the screws of the mounting clamps using a screw
driver.
An optional tile bridge must be installed when
mounting the speaker in ceiling tiles.
STEP 6
Attach the grill to the speaker by inserting the lips into
the provided openings on the speaker baffle and rotate
it over a partial turn (15°).
The speaker is now correctly installed and ready for
use.
