AUDAC CELO8 User & Installation Manual

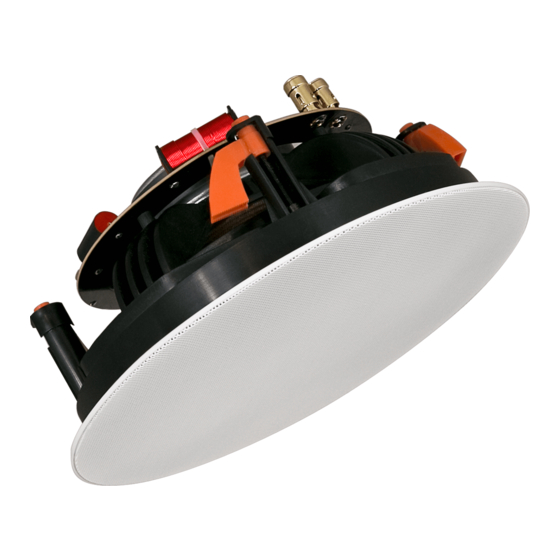

8” high-end slim ceiling speaker
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
CELO8
User & Installation
Manual
www.audac.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CELO8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AUDAC CELO8

Summary of Contents for AUDAC CELO8

  • Page 1 CELO8 User & Installation Manual www.audac.eu...
  • Page 3 Introduction 8” High-end Slim Ceiling Speaker The CELO8 is the 8” version of AUDAC’s CELO High-end Slim ceiling speaker series with an RMS power of 80 Watt and Maximum power of 160 Watt, consisting of a 8” aluminum cone woofer with 1” aluminum cone tweeter.
  • Page 4 Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY • ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY • ALWAYS HANDLE THIS UNIT WITH CARE • CLEAN ONLY WITH DRY CLOTH • HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS •...

  • Page 5: Caution - Servicing

    CAUTION • USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER • USE CABLES WITH CLEAR COLOUR CODING INDICATING THE POLARITY AND MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM. • ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE. EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES.

  • Page 6: Installation Procedure

    Installing the CELO Introduction The CELO speakers feature a quick-fixing mechanism, which allows quick and easy installation of the loudspeakers in only a few minutes. The installation of the CELO speakers requires a minimum amount of installation skills. Before the loudspeaker is installed, the location whereto it will be mounted should be carefully checked to make sure the surface can support the weight of the speaker and no lines for water, gas, electricity or other supplies are crossing this point.
  • Page 7 3) Take the loudspeaker, and remove the front grill which is held in place by neodymium magnets. The front grill can be easily removed by gently pulling it. 4) Connect the loudspeaker connection cable to the gold plated spring clamp connectors.

  • Page 8: Additional Information

    Additional Information Technical specifications RMS Power 80 Watt Max. Power 160 Watt Nominal impedance 8 Ohm Sensitivity 1W / 1m 89 dB Sound pressure Max W / 1m 108 dB Frequency response -3 dB 46 Hz - 20 kHz Cross-over frequency 3.0 kHz Cross-over network Passive Built-in...
