Kramer T10F-22M Installation Instructions

The Kramer T10F-22M Inner Frame
Congratulations on purchasing your Kramer T10F-22M Inner Frame for the TBUS-10XL Table
Connection bus.
The T10F-22M Inner Frame includes:
•
An opening for a MegaTOOLS
®
DemiTOOLS device
•
2 power socket openings
Note that you can install the optional T-2INSERT (P/N: 80-00006699) inside
a single power socket opening.

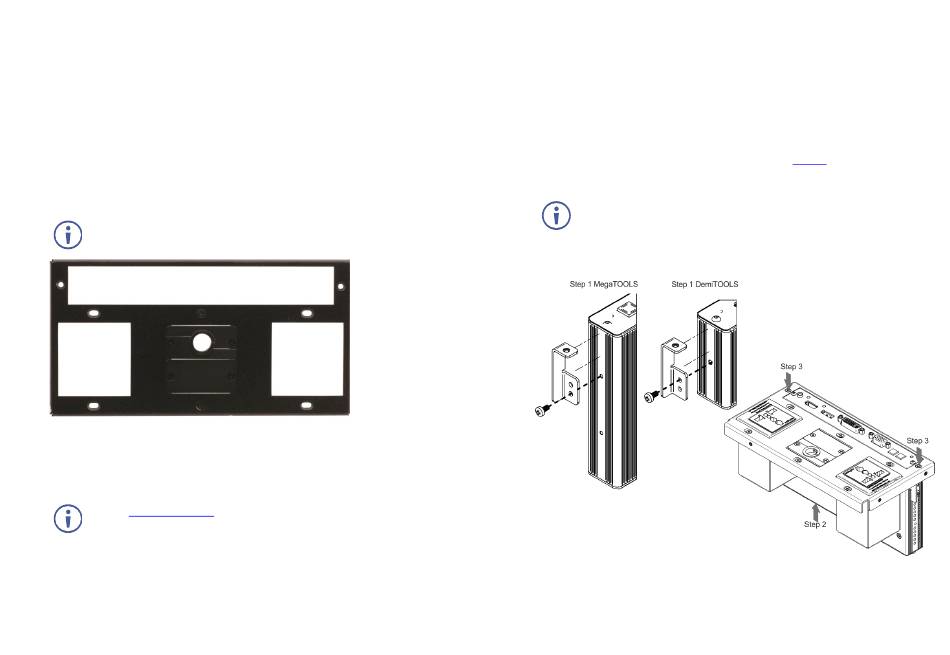

Figure 1: T10F-22M Inner Frame (P/N: 80-000028)
Installing the Wall Plate Inserts
Before installing the inner frame, you need to install wall plate inserts.
Go to www.kramerAV.com
complete list of Kramer wall plate inserts and module connectors.
You can rearrange or remove any of the blank inserts mounted on the inner frame and replace
them with Kramer wall plate inserts or connector modules for interfacing A/V type signals.
•
®
or 1 blank insert
•
1 pass-through insert
•
2 TOOL brackets
to check for up-to-date user manuals and the
To mount a Kramer insert or connector module:
1. Unscrew the two screws that fasten the blank insert to the inner frame and remove the
blank insert.
2. Place the required Kramer wall plate insert over the opening, insert the two screws to fix
the Kramer insert in place, and tighten them.
Installing MegaTOOLS or DemiTOOLS Devices
To install a MegaTOOLS or DemiTOOLS device, as shown in
1. Fasten one of the supplied TOOL brackets to each side of the device.
Make sure to insert the screw into the correct hole.
2. Insert the device, from underneath, through the MegaTOOLS/DemiTOOLS opening.
3. Fasten the screws (one on each side) through the inner frame holes and TOOL brackets.
Figure 2: Installing a MegaTOOLS or DemiTOOLS Device
Figure 2:
