Kramer T4F-23 Installation Instructions

The Kramer T4F-23 Inner Frame
Congratulations on purchasing your Kramer T4F-23 inner frame for the
TBUS-4xl Table Connection bus.
The T4F-23 inner frame includes:

2 openings for 2 power sockets

2 blank inserts

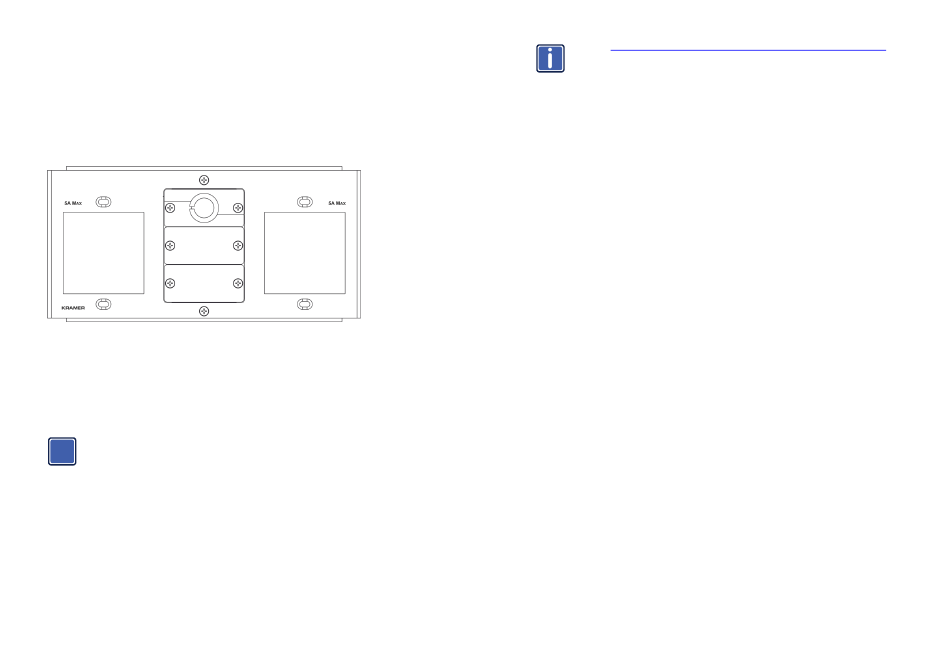

Figure 1: T4F-23 Inner Frame (P/N: 80-003699)

Power Socket and Power Cord Options

Various power sockets and power cords are available to use with the T4F-23, as described in the
"TBUS Modular Power Socket Installation and Power Cord" Installation Instructions, supplied with
the power socket.
i
Each power socket comes with detailed assembly instructions.

The T-2INSERT Kit Option (80-00006699)

You can install the T-2INSERT kit (which includes 1 pass-through insert and a blank insert)
instead of a power socket.

1 pass-through opening

Mounting the Inserts

Go to http://www.kramerelectronics.com/support/product_downloads.asp
check for up-to-date user manuals and the complete list of Kramer wall plates
and module connectors.
You can rearrange or remove any of the plates mounted on the inner frame and replace them
with Kramer passive wall plates or connector modules for interfacing A/V type signals.
To mount a Kramer insert or connector module:
1. Unscrew the two screws that fasten the blank plate to the inner frame and remove the
blank plate.
2. Place the required Kramer insert over the opening, insert the two screws to fix the Kramer
insert in place, and tighten them.

Installing the Assembled Inner Frame

To install the T4F-23 inner frame:
1. Place the assembled inner frame inside the TBUS-4xl enclosure.
2. Set the required height using your fingers to bring the inner frame to the desired position,
screw and tighten it in place using the height adjustment screws supplied with the inner
frame.

Connecting the Cables

When replacing blank inserts with connector inserts (for example, VGA, audio, HDMI and so on):
1. Insert the cables to their appropriate connectors from underneath.
2. Secure the cables to the tie holes on the TBUS-4xl.
Do not secure the cables too tightly or too loosely. Leave a small amount of slack.
After the TBUS-4xl is connected to mains power and the proper cables, it is ready for use.
