Kramer T6F-03M Installation Instructions

The Kramer T6F-03M Inner Frame
Congratulations on purchasing your Kramer T6F-03M Inner Frame for the TBUS-6XL Table
Connection bus.
The T6F-03M Inner Frame includes:
• An opening for 1 MegaTOOL
• 2 spacers for installing the MegaTOOL

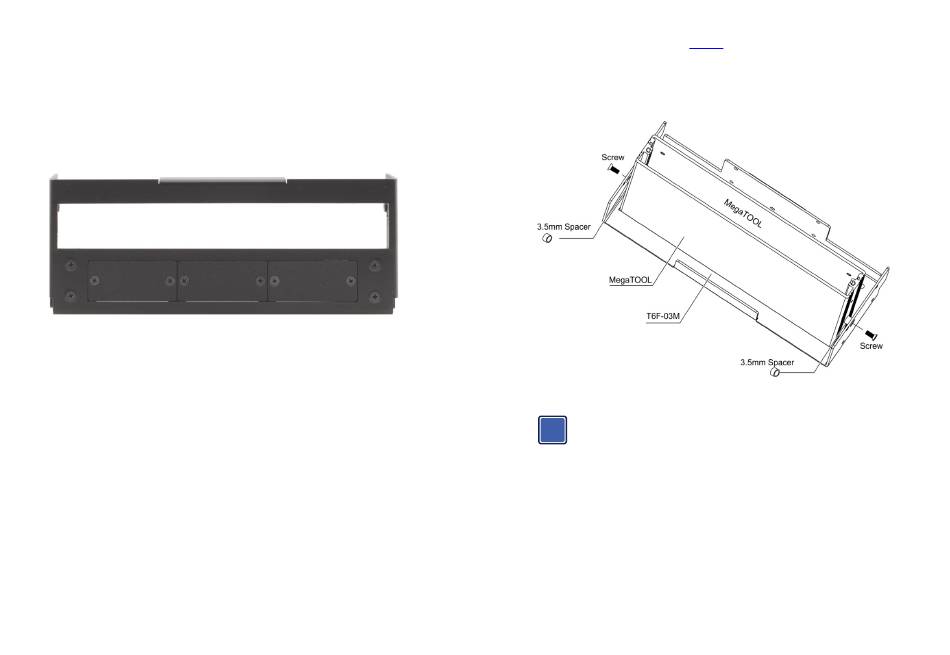

Figure 1: T6F-03M Inner Frame (P/N: 80-005499)
Installing the Wall Plate Inserts
Before installing the inner frame, you need to install wall plate inserts.
You can rearrange or remove any of the blank inserts mounted on the inner frame and replace
them with Kramer wall plate inserts or connector modules for interfacing A/V type signals.
To mount a Kramer insert or connector module:
1. Unscrew the two screws that fasten the blank insert to the inner frame and remove the
blank insert.
2. Place the required Kramer wall plate insert over the opening, insert the two screws to fix
the Kramer insert in place, and tighten them.
• 3 blank inserts
Installing a MegaTOOL
To install a MegaTOOL, as shown in
1. Insert the MegaTOOL, from underneath, through the MegaTOOL opening.
2. Position the supplied spacers at their designated locations (one on each side).
3. Fasten the screws (one on each side) through the frame holes and spacers.
Figure 2: Installing the MegaTOOL
i
Note that you can also install the MegaTOOL onto a mounted T6F-03M.
Installing the Inner Frame
To install the T6F-03M inner frame:
1. Place the assembled inner frame inside the TBUS-6XL enclosure.
2. Set the required height using your fingers to bring the inner frame to the desired position,
screw and tighten it in place using the height adjustment screws supplied with the inner
frame.
Figure 2:
