KT-107-INWL Quick Start Guide

This guide helps you install and use your KT-107-INWL for the first time.

Go to

updates.

Scan for full manual

Step 1: Check what's in the box

KT-107-INWL In-Wall Lock

Step 2: Get to know your KT-107-INWL

The KT-107-INWL In-Wall Lock secures KT-107, KT-107RB and KT-107S touch panels safely into a wall.

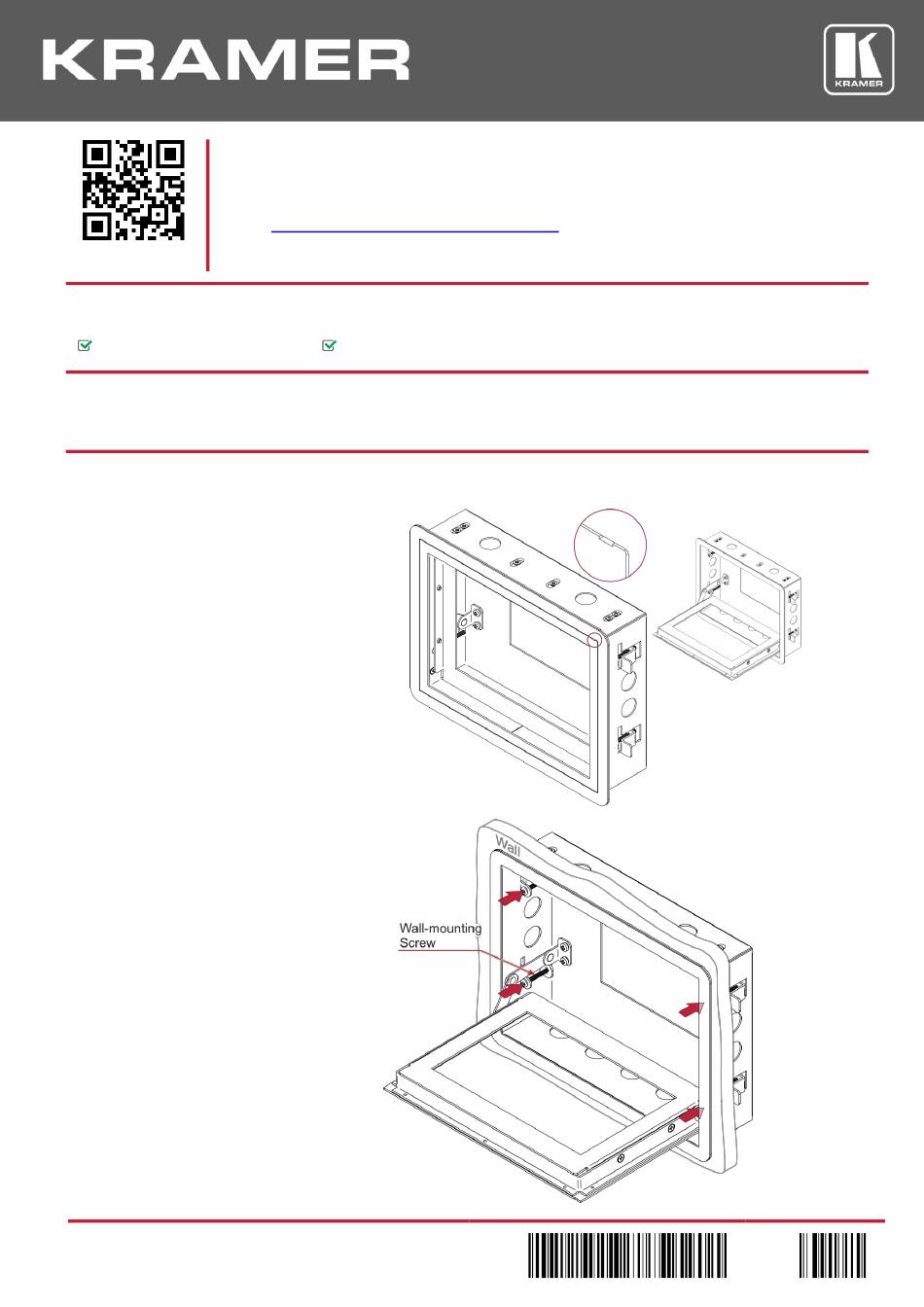

Step 3: Install the touch panel KT-107-INWL into a wall:

1. insert a screwdriver into the ledge

on the front top-right to open the

front frame of the In-Wall Lock.

2. Insert the KT-107-INWL into the

wall and fasten the mounting

screws (supplied).

KT-107-INWL Quick Start (P/N: 2900-300836QS REV 1)

www.kramerav.com/downloads/KT-107-INWL

1 Quick start guide

to download the latest manual and check for

P/N:

2 9 0 0 - 3 0 0 8 3 6 QS

Rev: 1

Need help?

Do you have a question about the KT-107-INWL and is the answer not in the manual?

Page 1 1 Quick start guide Step 2: Get to know your KT-107-INWL The KT-107-INWL In-Wall Lock secures KT-107, KT-107RB and KT-107S touch panels safely into a wall. Step 3: Install the touch panel KT-107-INWL into a wall: 1. insert a screwdriver into the ledge on the front top-right to open the front frame of the In-Wall Lock.
Page 2 Step 4: Mount the touch panel 1. Unscrew the 4 side-screws and remove the in-wall frame. 2. Insert the cables through the openings of the Touch-Panel on-wall mount (for example, a USB cable to connect to an external device). 3. On the rear side of the Touch Panel, unscrew the cover and set the cover and screw aside.
Page 3 4. Attach the panel mount plate onto the rear side of the Touch Panel using the 4 M2x4 screws (supplied with the Touch Panel) and tighten. 5. Connect the flat cable between the on-wall mount and the Touch Panel. 6. Slide the Touch Panel panel mount tabs over the grooves on the on- wall mount unit.
Page 4 7. Insert the Touch Panel, face down, into the front frame of the KT-107-INWL. 8. Place the in-wall frame over the Touch Panel rear side and fix using the 4 in-wall frame screws. 9. Close the front frame.
