Kramer T10F-33 Installation Instructions

The Kramer T10F-33 Inner Frame
Congratulations on purchasing your Kramer T10F-33 Inner Frame for the TBUS-10XL Table
Connection bus.
The T10F-33 Inner Frame includes:
•
2 power socket openings (1 dual and 1
single) – for three power socket connections
•
1 pass-through insert
i
Note that you can install the optional T-2INSERT (P/N: 80-00006699)
inside a single power socket opening.

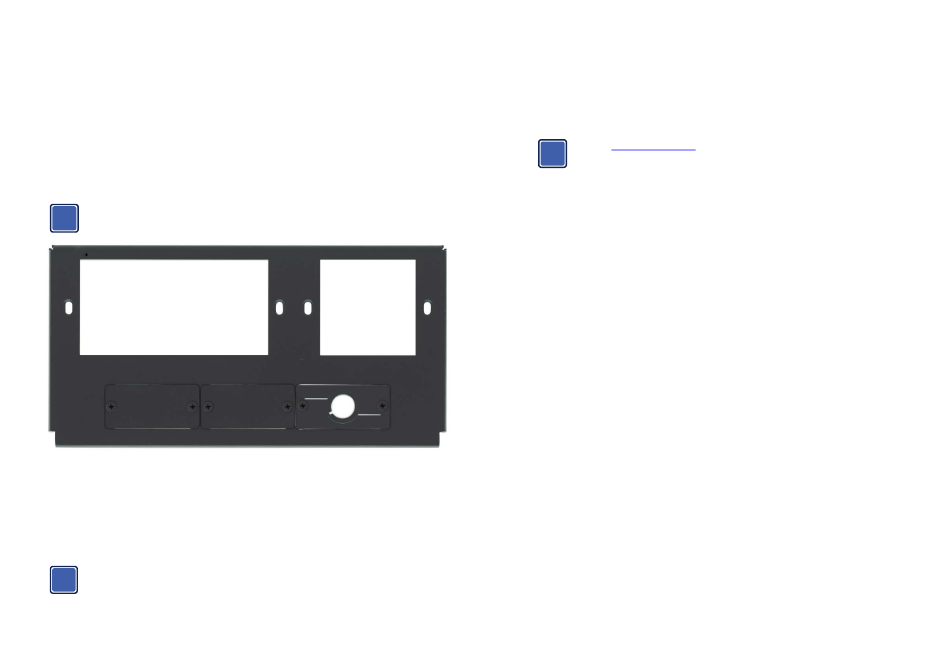

Figure 1: T10F-33 Inner Frame (P/N: 80-000040)

Power Socket and Power Cord Options

Various power sockets and power cords are available to use with the T10F-33, as described in
the "TBUS Modular Power Socket Installation and Power Cord" Installation Instructions,
supplied with the power socket.
i
Each power socket comes with detailed assembly instructions.
•
2 blank inserts

The T-2INSERT Kit Option (80-00006699)

You can install the T-2INSERT kit (which includes 1 pass-through insert and a blank insert)
instead of a power socket.

Installing the Wall Plate Inserts

Before installing the inner frame, you need to install wall plate inserts.
i
Go to www.kramerav.com
complete list of Kramer wall plate inserts and module connectors.
You can rearrange or remove any of the blank inserts mounted on the inner frame and replace
them with Kramer wall plate inserts or connector modules for interfacing A/V type signals.
To mount a Kramer insert or connector module:
1. Unscrew the two screws that fasten the blank insert to the inner frame and remove the
blank insert.
2. Place the required Kramer wall plate insert over the opening, insert the two screws to fix
the Kramer insert in place, and tighten them.

Inserting Pass-through Cables

When replacing inserts with the pass-through insert, for example, to connect a laptop, do the
following:
1. Remove the two screws attaching the split pass-through bracket.
2. Remove the split grommet.
3. Insert the cable through the rectangular opening.
4. Open the split grommet slightly and insert the required cables.
5. Place the split bracket around the grommet and position this assembly over the Inner
Frame.
6. Place the two screws appropriately and tighten the split bracket together with the
grommet and inserted cables to the inner frame.
7. Insert the self-locking ties through the tie holes to secure the cables to the inside walls
of the enclosure.
to check for up-to-date user manuals and the
