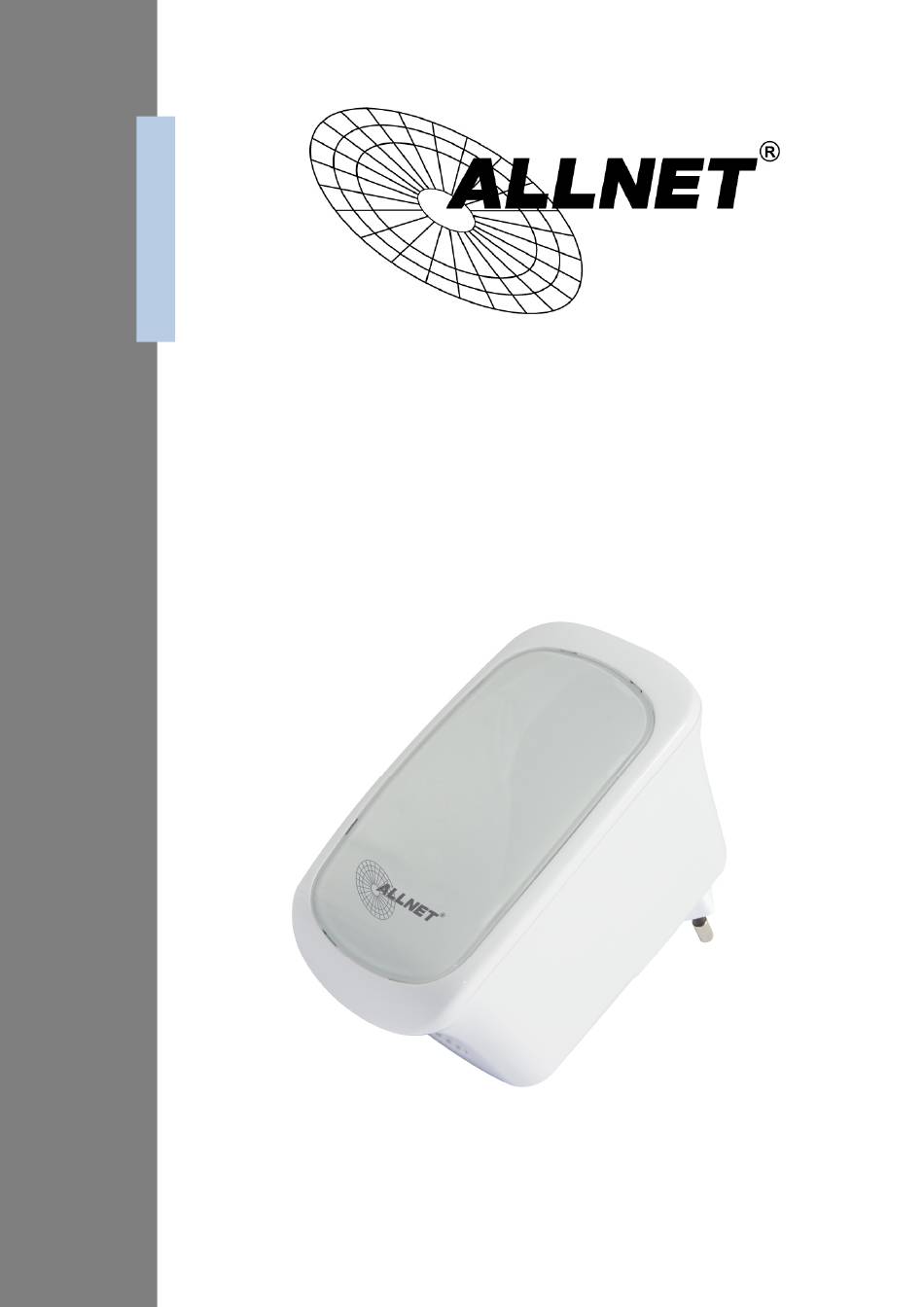

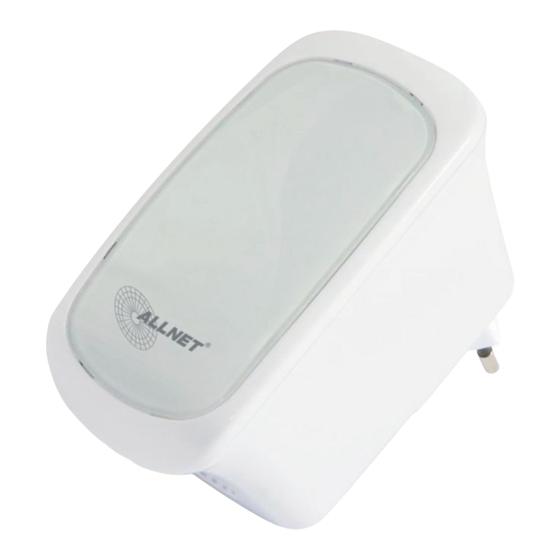

- Page 1 ALL0238RD Wireless N 300Mbit Dual-Band Access Point/Repeater User Manual...
- Page 2 © Copyright 2014 All rights reserved. No part of this document may be reproduced, republished, or retransmitted in any form or by any means whatsoever, whether electronically or mechanically, including, but not limited to, by way of photocopying, recording, information recording, or through retrieval systems without the express written permission.
-
Page 3: Table Of Contents
User Manual FactoryDefault-IP: 192.168.1.1 Username: admin Password: admin Contents About the Device ......................2 Minimum System Requirements..............3 Package Contents ..................3 Device Design ....................4 SMART LED Indicator ..................6 The Web User Interface ....................7 Web User Interface Menu ................. 10 Setup ...................... -
Page 4: About The Device
Ethernet port. Repeat and Extend the WiFi Network ALL0238RD supports robust 802.11n technology with up to 300Mbps data transfer rate. The Repeater can take an existing 802.11n wireless signal, repeat and extend it to a longer range where it is too far away for the... -
Page 5: Minimum System Requirements
Or Wireless network adapter Package Contents Package contents are listed below. For any missing items, please contact your dealer immediately. Product contents vary for different models. ALL0238RD Ethernet cable Easy Start Guide Resource CD Note: You may also download the Easy Start Guide, and the User Manual by visiting this link: www.allnet.de/downloads.html... -
Page 6: Device Design
Blinking actively transmitting / receiving data No Wireless Device is connected. A Wireless Device is 5.0GHz connected and is Blinking actively transmitting / receiving data ALL0238RD is Plugged to Power LED a working Power Outlet Page 4... - Page 7 Press this button for 2 seconds to connect theALL0238RD to any WPS capable devices (Wireless Device) WPS Button Press this button for 5 seconds to connect the ALL0238RD to any WPS capable devices (Wireless Router) Bottom Panel Reset Button Ethernet Port...
-
Page 8: Smart Led Indicator
User Manual SMART LED Indicator Your ALL0238RD is equipped with a SMART LED indicator which determines the signal strength from your wireless router as seen below: NOTE: Wireless reception and throughput may vary according to the number of Wireless Devices that are in use, and at the same time, other nearby wireless devices, structure types, building materials, and other interferences present. -
Page 9: The Web User Interface
The Web User Interface The Web User Interface of your ALL0238RD allows you to configure the various features of your ALL0238RD. This will serve as your main tool in monitoring and configuring all of your ALL0238RD’s main features. Accessing the Web User Interface... - Page 10 User Manual If you wish to connect to a wireless network immediately you may do the following steps: 1. Click the connect button that corresponds to the network you want to connect to. 2. Enter the correct Wireless Password of the preferred network then click the Apply button.
- Page 11 For 2.4GHz wireless networks For 5.0GHz wireless networks NOTE: To know if you have successfully connected to your device, you may also check the LEDs of your ALL0238RD; the SMART LED Indicator would be in STABLE GREEN light. Page 9...
-
Page 12: Web User Interface Menu
User Manual Web User Interface Menu The web user interface was made for users to easily access and control your ALL0238RD’s main features. It is mainly comprised of the following menus: • Quick Connect • Setup • Wireless • Device Admin •... - Page 13 (Wireless Password) text box then click Apply. Kindly wait for the repeater to finish initializing the connection. Your repeater would reboot upon successful connection. NOTE: To know if you have successfully connected to your device, check the LEDs of your ALL0238RD; it would be in STABLE GREEN light. Page 11...
-
Page 14: Setup
User Manual Setup The Setup page shows the current properties of the ALL0238RD. This page also allows you to change the mode of operation, the SSID, the security mode, enable or disable the broadcast of your SSID, change the passphrase of the SSID broadcasted by your ALL0238RD, and define the encryption type. -
Page 15: Wireless
User Manual Wireless The Wireless page shows the current properties of the Wireless Network broadcasted by your ALL0238RD. This menu allows you to modify basic router settings, your wireless network’s security settings, and also add and delete MAC filters. The Wireless page has the following sub menus that can be found on the second layer of icons just below the main menu icon shortcuts: •... - Page 16 Basic Wireless Settings The Basic Wireless Settings page allows you to configure the basic properties of your ALL0238RD such as enabling the wireless feature and SSID broadcast, changing the name of the Wireless SSID, defining a preferred wireless mode for your ALL0238RD, changing the Wireless channel and various HT properties •...
- Page 17 User Manual • Channel. You may opt to change your wireless channel when you are getting poor reception. You may choose the least channel used in your area for better wireless performance. • Channel Bandwidth. Here you can set your Channel Bandwidth to 20MHz and 20/40MHz.
- Page 18 User Manual Wireless Security Settings The Wireless Security Settings page allows you to change the Security Mode, enable or disable the WPS feature of your ALL0238RD, and add a WPS enabled device by entering the needed PIN. • Security Mode. Select the type of encryption you want for your wireless network.
- Page 19 MAC Filter Settings The MAC Filter page will provide additional protection to your wireless network. It allows or denies Wireless Devices from accessing the ALL0238RD with the use of the MAC address which is unique for every network device. To add a MAC Filter: 1.
- Page 20 User Manual d. Locate the Ethernet Adapter Ethernet or Ethernet Adapter Local Area Network section and find the ‘Physical Address’ (MAC Address). 3. Click the button located beside the MAC Address text box to apply changes. To remove a MAC Filter: 1.
-
Page 21: Device Admin
User Manual Device Admin The Device Admin page allows you to configure various system oriented settings such as changing the devices IP Address, backing up the current configuration settings, upgrading the device’s firmware, restoring the device from a previously saved configuration file, resetting the device to its factory default, and defining a user password for the Web UI. - Page 22 User Manual Device Information Allows you to view basic device information regarding your ALL0238RD such as the firmware version and its build date, the device’s serial number, MAC addresses of various interfaces, and view the Wireless’ status as well. • Firmware Version. Shows the current firmware version of the device •...
- Page 23 The LAN Configuration page allows you to specify a device IP address and Device subnet mask your ALL0238RD will use. Note: Change this IP address if you are using two ALL0238RD on the same network to avoid the occurrence of IP address conflict within your network.
- Page 24 User Manual • Update. Here you can load the saved configuration of your ALL0238RD. Click browse and load the saved settings then click the Apply button. • Restore. Click on the apply button to reset the unit back to its default factory settings.
- Page 25 The Firmware Upgrade page allows you to update the firmware of your device for future changes and enhancement, however, it is strongly suggested to only upgrade your device firmware if it was advised by ALLNET GmbH Computersysteme. You may download the latest firmware for your device at www.allnet.de/downloads.html...
- Page 26 To disable the password, simply remove the password and click apply to save your settings. Note: Forgotten passwords cannot be recovered. Reset the device to its factory default by pressing the reset button found beside the Ethernet port of ALL0238RD for 30 seconds. Page 24...
-
Page 27: Device Status
User Manual Device Status The device status page shows the current status of the AP, and also the wireless devices that are currently connected wirelessly to your ALL0238RD. Page 25... -
Page 28: Wps
User Manual WPS or Wifi Protected Setup makes it easier for you to connect your ALL0238RD to your wireless router and the ALL0238RD to your wireless devices with a simple push of a button. To connect the ALL0238RD to a Wireless Router via WPS: 1. -
Page 29: Setup The Device
Ethernet ports. 3. Launch a web browser and you will automatically be redirected to the Web User Interface of your ALL0238RD. If in any case it does not open, kindly type 192.168.1.1 on the address bar and hit enter. - Page 30 User Manual For 2.4GHz wireless networks For 5.0GHz wireless networks 6. Disconnect the Ethernet cable from ALL0238RD and computer then place the device at the location where it can get sufficient reception from your wireless router. Page 28...
- Page 31 User Manual Page 29...
-
Page 32: Appendix
User Manual Appendix FCC Statement This equipment has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 33: Safety Warnings
User Manual Safety Warnings For your safety, be sure to read and follow all warning notices and instructions. Do not open the device. Opening or removing the device cover can expose you to dangerous high voltage points or other risks. Only qualified service personnel can service the device. - Page 34 The safety advice in the documentation accompanying the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device. The ALLNET ALL0238RD conforms to the Council Directives of 1999/5/EC. This equipment meets the following conformance standards: This equipment is intended to be operated in all countries.
-
Page 35: Gpl Code Statement
GPL code and the LGPL code for this product and the terms of the GPL and LGPL. Written offer for GPL and LGPL source code Where such specific license terms entitle you to the source code of such software, ALLNET will provide upon written request via e-mail and/or traditional paper mail the applicable GPL and LGPL source code files via CD-ROM for a nominal cost to cover shipping and media charges as allowed under the GPL and LGPL. - Page 36 User Manual To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have.
- Page 37 User Manual no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) These requirements apply to the modified work as a whole.
- Page 38 User Manual distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it. 6.
- Page 39 User Manual LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
- Page 40 `Gnomovision' (which makes passes at compilers) written by James Hacker. signature of Ty Coon, 1 April 1989 Ty Coon, President of Vice Source: http://www.gnu.org/licenses/old- licenses/gpl-2.0 © ALLNET GmbH Computersysteme 2014 - Alle Rechte vorbehalten Page 38...
