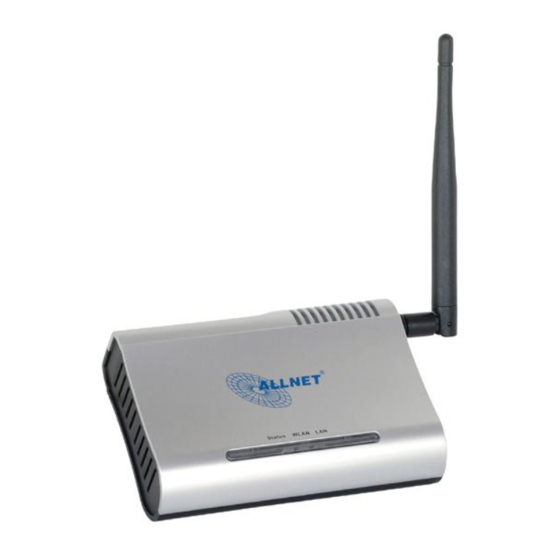

- Page 1 IEEE802.11g Wireless Access Point with Client User’s Manual...
- Page 2 FCC Certifications Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 CE Mark Warning This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class B for ITE, the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility. Company has an on-going policy of upgrading its products and it may be possible that information in this document is not up-to-date.
-
Page 4: Table Of Contents
Table of Contents Unpacking Information ··········································· Introduction ···························································· General Description ········································································ Key Features ················································································· The Front Panel·············································································· The Rear Panel··············································································· Connecting This AP to Your Network. ···················· Management ························································ Configuring the IP address of your computer ······································ Starting the WEB-Based Management Interface ··································... -
Page 5: Unpacking Information
Unpacking Information Thank you for purchasing the product. Before you start, please check all the contents of this package. The product package should include the following: 1. One Wireless AP 2. One power adapter 3. One Quick installation Guide 4. One User Manual (CD) 5. -
Page 6: Introduction
Introduction General Description Easily constructing your LAN, this wireless access point offers a wireless interface and eliminates your effort busying cabling form one computer to another. With being compliant to IEEE 802.11g specification, this wireless access point supports data rate up to 54Mbps and hence help to construct your high-speed home or office wireless network. -
Page 7: Panel
The Front Panel LED definition Status Definition Status Steady Blue System down or System restarting Blinking Blue System works normally. System down WALN Blinking Blue Wireless interface enabled Wireless interface disabled Blinking Blue Data transmitting/receiving on LAN port Steady Blue Valid connection on LAN port Invalid connection on LAN port... -
Page 8: The Rear Panel
The Rear Panel DC 12V Plug this connector with the circle end of the included power adapter. Plug the adapter to an outlet to power on the AP. AP/Client switch Push this switch to either side to function this AP in AP mode or Client mode. -
Page 9: Connecting This Ap To Your Network
Connecting This AP to Your Network. This Chapter provides a step-by-step guide to the installation and configuration of this wireless access point. Connect the power adapter with the connector end to the power connector in the rear panel of the device and the plug end to an appropriate outlet. -
Page 10: Management
Management Configuring the IP address of your computer In order to manage with this Wireless AP, you have to configure the IP addresses of your computer to be compatible with this device. Note: The default network setting of the device: IP address: 192.168.1.1 Subnet Mask:... - Page 11 3. Choose Internet Protocol (TCP/IP) and click Properties. Choose “Use the following IP address” to specify IP addresses manually. Fill in the IP addresses in each column. Please click the OK button after your configuration.
-
Page 12: Starting The Web-Based Management Interface
Starting the WEB-Based Management Interface The device uses WEB as the management interface. You can use a browser to access the management interface easily. Please follow up the steps listed below. 1. Double click the Internet WEB browser icon on your desktop screen (Netscape Communicator 4.0 and Internet Explorer 3.0 or update version) 2. - Page 13 The Graphic User Interaface After the password authorization, the Setup Wizard shows up as the home page of the Graphic User interface. You may click on each folder on left column of each page to get access to each configuration page.
-
Page 14: Status
Status The Status page shows the following information of the device. Items Information Uptime The period that you turn the device on. Firmware version The current firmware version of the device. Mode Shows if the device is operating in AP or WDS mode. Band The band that the wireless AP operating. -
Page 15: Lan Interface Setup
LAN Interface Setup This page allows users to configure the LAN network settings. Configuration IP address The IP of your AP LAN port (Default 192.168.1.1) Subnet Mask Subnet Mask of you LAN (Default 255.255.255.0) Default Gateway The default gateway of this AP. DHCP Select “Enable”... -
Page 16: System Log
System Log This System Log page shows the information of the current activities on the AP. To enable system log function: 1. Mark the “Enable Log” checkbox. 2. To see all information of the system, select the “system all” checkbox. To see wireless information only, select the “wireless”... -
Page 17: Password Setup
Password Setup This page allows users to configure the username and password for getting accessed to this WEB based user interface. To change the username/password, please fill in the username, New password and click the “Apply Changes” button after confirming the password. You may also cancel the password authentication by leaving those blanks empty then clicking the “Apply Changes”... -
Page 18: Basic Settings
Basic Settings This page provides setting up the wireless configuration and monitoring the Wireless Clients that associate with this AP. Configuration Disable Wireless To Disable interface of Wireless LAN LAN Interface Band To select a band for this device to match 802.11b, 802.11g or both. - Page 19 WDS Setting Click the “Show WDS Setting” button to configure WDS settings. The WDS settings pops up. Enable Universal Mark this checkbox to enable Universal Repeater Mode Repeater Mode which acts this device client simultaneously. Root AP SSID While you enable the Universal Repeater Mode, you have to specify an SSID for the extended interface.
- Page 20 Refresh Refresh the "Active Wireless Client Table". Close Close the "Active Wireless Client Table". WDS Settings This is the window that pops up after clicking the “Show WDS Setting” button. Wireless Distribution System allows this AP to communicate with other APs wirelessly.
-
Page 21: Advanced Settings
Advanced Settings You can set advanced wireless LAN parameters of this AP. The parameters include Authentication Type, Fragment Threshold, RTS Threshold, Beacon Interval, Data Rate, Preamble Type, Broadcast SSID, IAPP and 802.11g Protection. Configuration Open System Allow communication with no security. mode Authentication Shared Key... - Page 22 If the packet size is smaller the RTS threshold, the AP will RTS Threshold not send this packet by using the RTS/CTS mechanism. Beacon Interval The period of time how long a beacon is broadcasted. The "Data Rate" is the data packets limitation this wireless AP can transmit.
-
Page 23: Security
Security At the page, you can set up the WEP, WPA Encryption to ensure the security of your Wireless. You will have to do different configurations to each encryption modes. Click on the Encryption drop list to select an encryption mode or select “Disabled”... -
Page 24: Wpa Encryption
WPA Encryption Configuration Encryption To enable WEP, WPA, WPA2 and WPA2 Mixed encryption modes, select the option in the drop list. If you select none, any data will be transmitted without Encryption and any station can access the AP. WPA Cipher Suite Select the WPA Cipher Suite to be TKIP or AES WPA Authentication Select the WPA mode as “Enterprise... -
Page 25: Wpa2 Encryption
WPA2 Encryption Configuration Encryption To enable WEP, WPA, WPA2 and WPA2 Mixed encryption modes, select the option in the drop list. If you select none, any data will be transmitted without Encryption and any station can access the AP. WPA2 Cipher Suite Select the WPA2 Cipher Suite to be TKIP or AES WPA Authentication Select the WPA mode as “Enterprise... -
Page 26: Wpa2 Mixed Encryption
WPA2 Mixed Encryption Configuration Encryption To enable WEP, WPA, WPA2 and WPA2 Mixed encryption modes, select the option in the drop list. If you select none, any data will be transmitted without Encryption and any station can access the AP. WPA Cipher Suite Select the WPA Cipher Suite to be TKIP or AES WPA2 Cipher Suite... -
Page 27: Access Control
Access Control To restrict the Number of Access authentication of Stations, Set up the control list in this page. Configuration Click on the drop list to choose the access control Wireless Access mode. You may select “Allow listed” to allow those Control Mode allowed MAC addresses or select “Deny Listed”... -
Page 28: Statistics
Statistics On this page, you can monitor the sent & received packets counters of wireless, Ethernet LAN, and Ethernet WAN. To see the latest report, click refresh button. -
Page 29: Upgrade Firmware
Upgrade Firmware To Upgrade Firmware, STEPS Click “browse…” button to select the firmware you want to upgrade. Click Upload to start the upgrade process. Please don’t close the WEB-browser and wait for the process to be completed. -
Page 30: Save And Reload Settings
Save and Reload Settings To save setting to file, click “Save...” button. To load setting from file, 1. Click “Browse…” on the to select the file 2. Click upload to start the process and wait for it to complete To reset setting to Default, click the Reset button to start the process. Log out Click the “Apply Change”... -
Page 31: Product Specifications
Product Specifications IEEE802.3, 10BASE-T IEEE802.3u, 100BASE-TX Standard IEEE802.3x full duplex operation and flow control IEEE802.11b wireless LAN infrastructure IEEE802.11g wireless LAN infrastructure 1 * LAN port Interface Antenna: 802.11b/g wireless reverse SMA detachable RJ-45 (10BASE-T): Category 3,4,5 UTP Cable Connections RJ-45 (100BASE-TX): Category 5 UTP 802.11b: 1, 2, 5.5 and 11Mbps Network Data Rate...
