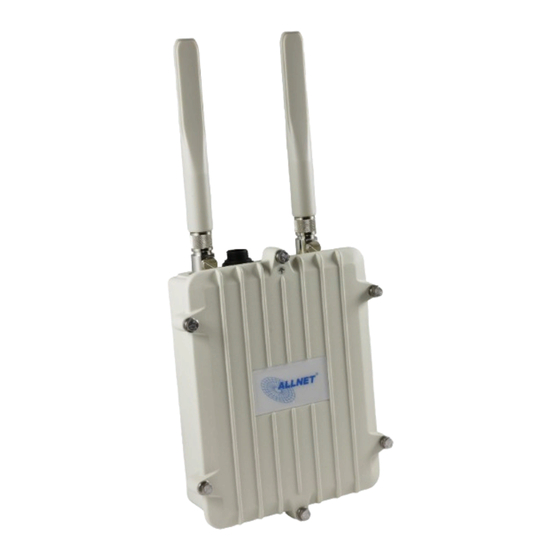

Allnet ALL0305 User Manual

Dual radio concurrent ap/cb
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Dual Radio Concurrent AP/CB
ALL0305

User Manual

Version : 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALL0305 and is the answer not in the manual?

Questions and answers

Related Manuals for Allnet ALL0305

Summary of Contents for Allnet ALL0305

  • Page 1: User Manual

    Dual Radio Concurrent AP/CB ALL0305 User Manual Version : 1.0...

  • Page 2: Table Of Contents

    ................................. 6 ACKAGE ONTENTS 1.4 S ..............................6 YSTEM EQUIREMENT 1.5 H ..............................6 ARDWARE VERVIEW 2 ALL0305 MULTI-FUNCTION INSTRUCTION GUIDE ....................... 7 2.1 A ................................. 7 CCESS OINT 2.2 C ................................7 LIENT RIDGE 2.3 C ................................7 LIENT OUTER 3 COMPUTER CONFIGURATION INSTRUCTION ........................
  • Page 3 5 LAN SETUP ..................................21 5.1 LAN S ................................21 ETTINGS 5.2 DHCP I .................................. 21 5.3 SNMP S ................................23 ETTINGS 6 INTERNET SETTINGS ................................24 6.1 DHCP (D IP) ..............................24 YNAMIC 6.2 S IP ..................................24 TATIC 6.3 PPP E (P ) ......................

  • Page 4: Product Overview

    1 Product Overview Thank you for using ALL0305. ALL0305 is a dual core wireless outdoor Access Point/Client Bridge. It is a powerful, enhanced, enterprise scale product with 3 multi-functions Access Point, Client Bridge, and Client Router in both 2.4G and 5G operation mode. ALL0305 can help with reducing costs with wired internet/intranet and even constructing wireless environment.
  • Page 5 Let users transfer data between two buildings or multiple buildings. Wireless Connectivity Support RSSI Indicator Access Point will show the signal quality for each client. Flexible Access Point locations and cost savings. ALL0305 must uses Power-over-Ethernet the adapter provided in the package. Support Multi-SSID...

  • Page 6: Feature

    Client Router Mode has the same abilities as Client Bridge Mode but it also supports WAN type of internet connection. Multiple SSIDs ALL0305 supports up to 4 SSIDs on your access point. The following options can be set to each SSID: SSID for public or private network Each SSID can be suppressed.

  • Page 7: Package Contents

     1* Mounting kit  1* QIG  1* CD (User Manual)  2*Dipole Antennas Caution: Using other Power Adapter than the one included with ALL0305 may cause damage of the device. 1.4 System Requirement The following conditions are the minimum system requirement.

  • Page 8: All0305 Multi-Function Instruction Guide

    2 ALL0305 Multi-Function Instruction Guide 2.1 Access Point In the Access Point Mode with WDS Function, ALL0305 function likes a central connection for any stations or clients that support IEEE 802.11b/g network. Stations and Client must configure the same SSID and Security Password to associate within the range. ALL0305 supports 4 different SSIDs to separate different clients at the same time.

  • Page 9: Computer Configuration Instruction

    4. Click on the OK button to close this window, and then close LAN properties window. Caution: ALL0305 has provided DHCP server in the default setting. You should automatically retrieve an IP address otherwise use an IP address which is in the same subnet as the device.

  • Page 10: Logging Method

    4 Wireless Configuration 4.1 Switching Operation Mode The ALL0305 supports 3 different operation modes: Access Point, Client Bridge, and Client Router. Each mode can be used in both 2.4G and 5G wireless network at the same time or separately. Click Operation Mode under Management Section to begin.

  • Page 11: Dual Mode

    Operation Mode (5G): Select which operation modes you would like to use in 5G network. Operation Mode (2.4G): Select which operation modes you would like to use in 2.4G network. Apply / Cancel: Press Apply to save the changes or Cancel to return previous settings. Caution: Client Bridge Mode and Client Router Mode can not be used at the same time.

  • Page 12: Wireless Settings

    4.2.1 Access Point Mode (Dual Mode) Radio Select the radio button to enable or disable wireless function. Enable SSID# ALL0305 can support up to 4 different SSID with different VLAN tag. ESSID Specify the broadcast SSID and VLAN ID for each ESSID. 5G Wireless Settings Band Standard IEEE 802.11a band.

  • Page 13: Access Point Mode (5G)

    4.2.2 Access Point Mode (5G) Radio Select the radio button to enable or disable wireless function. Enable SSID# ALL0305 can support up to 4 different SSID with different VLAN tag. ESSID Specify the broadcast SSID and VLAN ID for each ESSID. 5G Wireless Settings Band Standard IEEE 802.11a band.

  • Page 14: Client Bridge Mode/Client Router Mode (Dual Mode)

    Press Apply to apply the changes or Cancel to return previous settings. Caution: ALL0305 can not operate Client Bridge in 5G and 2.4G at the same time. Note: For more details of Site Survey, please refer to the Site Survey section.

  • Page 15: Client Bridge Mode/Client Router Mode (5G)

    4.2.5 Client Bridge Mode/Client Router Mode (5G) ESSID Specify the SSID is given by Access Point if known. Otherwise, you may use Site Survey to scan nearby Access Point. Preferred BSSID Specify the MAC address from the Access Point that you would like to associate with. 5G Wireless Setting Standard IEEE 802.11a wireless band.

  • Page 16: Ap Scan List (5G / 2.4G)

    We are strongly recommended that uses WPA2-PSK AES as your security settings. 4.5.1 WEP (Access Point) ESSID Selection ALL0305 supports up to 4 different SSIDs. Each SSID can be set to different authentication type. Hidden SSID Select Enable or Disable broadcast SSID.

  • Page 17: Wep (Client Bridge / Client Router)

    Apply Press Apply to save the changes. 4.5.3 WPA pre-shared Key (Access Point) ESSID Selection ALL0305 supports up to 4 different SSIDs. Each SSID can be set to different authentication type. Hidden SSID Select Enable or Disable broadcast SSID. Select Enable or Disable WMM function. WMM is based on the four Access Categories: voice, video, best effort and background.

  • Page 18: Wpa Pre-Shared Key (Client Bridge / Client Router)

    Radius authentication type is only available in Access Point Mode. Use this feature if you have Radius Server. It also supports WPA(TKIP), WPA2(AES) and WPA2 Mixed encryption types. ESSID Selection ALL0305 supports up to 4 different SSIDs. Each SSID can be set to different authentication type. Hidden SSID Select Enable or Disable broadcast SSID.

  • Page 19: Wireless Advanced Settings

    4.6 Wireless Advanced Settings If you do not have experience with Wireless Advanced Settings, we suggest remain all settings to default. Any modifies may cause insufficient wireless connection quality. 4.6.1 Advanced Settings (Access Point) Fragment Threshold Specify package size during transmission. If large amount of client are accessing to the network, specify small number of the fragment length in order to avoid collision.

  • Page 20: Advanced Settings (Client Bridge / Client Router)

    sometimes cause unable to connect to the network. On the other hand, the lower transmit power will cause client unable to connect to the device. Distance Specify distance rage between AP and Clients. Longer distance may lose high connection speed. Layer 2 Isolation Select the Radio button to enable or disable Layer 2 Isolation.

  • Page 21: Wireless Access Control List

    Wireless Access Control List is used to Allow or Deny wireless clients by their MAC addresses, accessing the Network. You can manually add a MAC address to restrict the permission to access ALL0305. Enable Wireless Access Place a Check to enable Wireless Access Control.

  • Page 22: Lan Setup

    5 LAN Setup This section will guide you to the Local Area Network (LAN) settings 5.1 LAN Settings Caution: Changing LAN IP Address will change LAN Interface IP address. Webpage will automatically redirect to the new IP address after Apply. LAN IP IP Address Specify LAN port IP address.

  • Page 23: Mac Address

    Enable Static DHCP IP Place a Check to enable Static DHCP IP. IP Address Specify the IP Address for the MAC address you about to add. MAC Address Specify the MAC Address. Press Add to add the MAC address. Reset Press Reset to cancel the condition of description and MAC Address.

  • Page 24: Snmp Settings

    5.3 SNMP Settings SNMP Enable Select the Radio button to enable SNMP feature. SNMP Disable Select the Radio button to disable SNMP feature. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings.

  • Page 25: Internet Settings

    6 Internet Settings 6.1 DHCP (Dynamic IP) Select Dynamic IP as your WAN connection type to obtain your IP address automatically. You will need to enter Hostname Hostname Specify the Hostname is given by your Internet Service Provider. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings.

  • Page 26: Pppoe (Point-To-Point Protocol Over Ethernet)

    6.3 PPPoE (Point-to-Point Protocol over Ethernet) Select PPPoE as your WAN connection type if your ISP provides Username and Password. PPPoE is a DSL service and please remove your PPPoE software from your computer, the software is not worked in EOA3630. Login Specify the Username that is given by your ISP.

  • Page 27: Pptp (Point-To-Point Tunneling Protocol)

    6.4 PPTP (Point-to-Point Tunneling Protocol) Select PPTP as your WAN connection type if your ISP provides information about IP Address, Subnet Mask, Default Gateway (Optional), DNS (Optional), Server IP, Login Username, and Login Password. There are two types of PPTP connection: Dynamic IP Address and Static IP Address. Dynamic IP Address WAN Interface Type Select Dynamic IP Address as your WAN Interface.
  • Page 28 Login Specify the Username that is given by your ISP. Password Specify the Password that is given by your ISP. Service IP Address Specify the Service IP Address that is given by your ISP. Connection ID Specify the Connection ID that is given by your ISP. Specify the Maximum Transmit Unit size.

  • Page 29: Information Status

    7 Information Status Status section is used to check the status of device information such as System up time, Firmware version, Wireless Client List, and Internet Status. 7.1 Status Click on the Status link under the Management section. This page display information of the device such as Current Time, Hardware Version, Kernel Version, and Application version are displayed in the ‘System’...

  • Page 30: Wireless Client List

    Click on the Client List link under the 5G/2.4G Wireless section. This page displays the list of Clients that are associated to the ALL0305. The MAC addresses, signal strength, and Idle Time for each client is displayed. Click on the Refresh button to refresh the client list 7.3 System Log...

  • Page 31: Internet Status

    7.4 Internet Status Click on the Status link under the Internet section. This page displays the current connection type status of the network, including network type, SSID, BSSID, connection status, wireless mode, current channel, security, data rate, noise level and signal strength. Note: If your internet connection type is PPPoE or PPTP with Manual Connection, you can connect to internet at this page.

  • Page 32: Management Settings

    8 Management Settings Management section is on the navigation drop-down menu. This section can help you to manage your device and adjust system settings such as Password, Time Zone, Diagnosis, Remote Control, Upgrade Firmware, Save/Load Settings. Each option is described below. 8.1 Password Settings Click on the Password link under the Management section.

  • Page 33: Diagnosis

    NTP Time Server Specify the NTP Server’s Domain name or IP Address. Daylight Saving Place a Check to enable Daylight Saving feature. Configure the starting date and ending date. Apply / Cancel Press Apply to save the changes or Cancel to return previous settings. 8.3 Diagnosis Click on the Diagnostics link under the Management menu.

  • Page 34: Remote Control

    Make sure that downloaded the appropriate firmware from your vendor. Caution: Upgrade process may take few minutes, please do not power off the device and it may cause the device crashed or unusable. ALL0305 will restart automatically once the upgrade is completed. 8.6 Save/Reload Settings Click on the Save/Reload Setting link under the Management menu.
  • Page 35 Default Settings Backup Settings Click on Save to save current configured settings. Restore Settings ALL0305 can restore a previous setting that has been saved. Click on Browse to select the file and Upload. Restart Press Restart to reboot the device.

  • Page 36: Network Configuration Example

    9 Network Configuration Example This chapter describes the role of the ALL0305 with three different modes. The Access Point mode’s default configuration is a central unit of the wireless network or as a root device of the wired environment. Repeater mode and Mesh network mode need future configuration.

  • Page 37: Client Router Mode

    9.2 Client Router Mode Please refer to last section for the configuration of Access Point. Step1 Login to the web-based configuration interface with default IP 192.168.1.1 Step2 Change operation mode to Client Router. Step3 Select 5G or 2.4G as your wireless mode. Step4 Use site survey to scan nearby Access Point and select the certain AP you would like to connect with or enter SSID manually.

  • Page 38: Appendix A - Fcc Interference Statement

    Appendix A – FCC Interference Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 39 The safety advice in the documentation accompanying the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device. The ALL0305 Dual-Radio Wireless System conforms to the European Directives 1999/519/EC. This equipment meets the following conformance standards: EN 300 328 V1.7.1 (2006-10)
