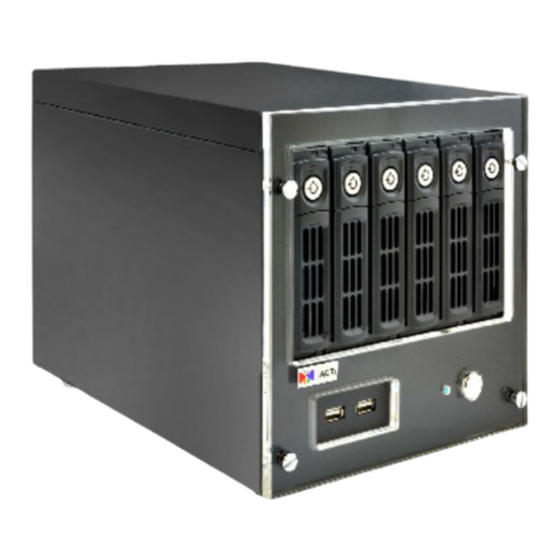

- Page 1 Quick Installation Guide INR-340 64-Channel 6-Bay RAID Tower Standalone NVR...
-
Page 2: Before You Start
BEFORE YOU START Thank you for purchasing ACTi Standalone Network Video Recorder. This guide contains all the information you need to quickly set up ACTi INR server system via local interface. For detailed instructions on installation, operation and how to log in to INR as a web client, please refer to the product manuals provided on ACTi corporate website. -
Page 3: Hardware Installation
HARDWARE INSTALLATION UNPACK This package contains: This package contains: • INR x 1 • INR x 1 • Power Cord x 1 • HDD Tray Keys Pack x 1 • HDD Tray Keys Pack x 1 • Universal Converter x 1 • Disk Screws Pack x 1 • Disk Screws Pack x 1 • Warranty Card x 1... -
Page 4: Hard Disk Installation
HARD DISK INSTALLATION TURN OFF THIS UNIT before you move the trays. Repeat the following steps to install the disks into Storage Disk bays. REMOVE THE TRAY MOUNT THE DISK Step 1 Step 2 Step 3 Slide the lock tab up, the Pull the hinge tab to 90 Mount the disk by lock- hinge tab will pop out by... - Page 5 START-UP 1. On the unit’s front panel, press down Power Button to turn on the unit. 2. As this unit starts up, you will enter Windows logon screen. Input the password “123456“ to log in as administrator. CREATE HARDWARE RAID As this unit supports hardware RAID configuration, you can make disk arrays using the bundled software utility. 1. On Windows Desktop, double-click on the shortcut to initialize the RAID management utility.
-
Page 6: Software Configuration
SOFTWARE CONFIGURATION CREATE DISK VOLUMES Use Windows Disk Management to create disk volumes so that INR can access the available storage space. 1. In Windows Search Box, search and enter “computer management”. 2. Select “Disk Management”, right-click on a disk title and select “Initialize Disk”, choose “GPT”... - Page 7 To make a Striped volume, a Mirrored volume or a RAID-5 volume, it is recommended to select disks of the same model and capacity. Note For detailed instructions on choosing the RAID types and troubleshooting hard disk issues, please refer to System Administrator’s manual provided on ACTi Download Center at http://www.acti.com/downloadcenter Standalone NVR Quick Installation Guide...
-
Page 8: Create Users
LOG IN On Windows Destop, double-click on to enter NVR interface. Input the default account and password to log in. Account: admin Password: 123456 “123456” is the default password of NVR system administrator’s user account. For security reasons, please remember to change it. CREATE USERS On NVR screen, click Setup button to enter Setup page and then Users tab. 1. -
Page 9: Select Storage Drives
Search Cameras Add Camera Manually Use “Search Cameras” to auto-search If you are adding a camera located the network for ACTi cameras, or in another network, use “Add “Search ONVIF Cameras” for Camera Manually”. Fill in Media ONVIF-compliant cameras of any Type, Protocol, IP Address, HTTP brand. -
Page 10: Configure Camera Settings
3. Drag on the time table to define the time session. 4. Click “Apply“. Note If you have any question during system installation, please feel free to contact our engineers via ACTi Customer Help Desk platform at http://www.acti.com/CHD Standalone NVR Quick Installation Guide... -
Page 11: Customize Views
CUSTOMIZE VIEWS 1. Go to Live View page. On top of the screen, click on view tool bar to create a new layout, then click to enter edit mode. 2. Select a layout style. 3. To add a camera view, pull a camera from Camera List to a channel. To add a map view, select a channel and click , upload the map, drag the lower right corner... - Page 12 Due to continuous product improvements, some contents may have changed from the time this documentation was printed. You can download the latest user documentation, which shall prevail over the printed version http://www.acti.com/downloadcenter provided in the package, from www.acti.com...
