Summary of Contents for Teltonika FMU125
- Page 1 Internet store of PHONES SKYPE 0 (800) 800 130 autogoods km-130 (050) 462 0 130 (063) 462 0 130 (067) 462 0 130 CAR RECEIVERS — Receivers • Media receivers and stations • Native receivers • CD/DVD changers • FM-modulators/USB adapters • Flash memory • Facia plates and adapters • Antennas • Accessories | CAR AUDIO —...
- Page 2 FMB125 Quick Manual Dual-SIM tracker with v1.6 RSR232, RS485 interfaces Autogoods “130”...
-
Page 3: Table Of Contents
Table of Contents Certification and Approvals ............16 Warranty ..................17 Table of Contents ................2 Warranty Disclaimer................ 17 Know your device ................3 Pinout ....................4 Wiring scheme ................... 5 Set up your device ................. 6 How to insert SIM card and connect the battery ......6 PC Connection (Windows) .............. -
Page 4: Know Your Device

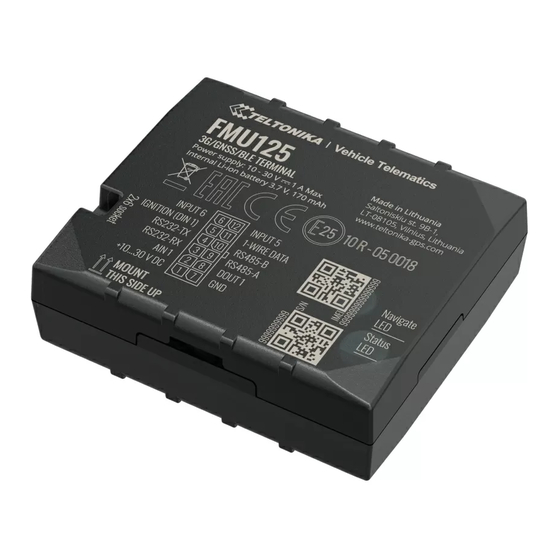

Know your device Figure 1 FMB125 device view FMB125 | Wiki Autogoods “130”... -
Page 5: Pinout
Pinout Table 1 FMB125 2x6 socket pinout PIN NUMBER PIN NAME DESCRIPTION VCC (10-30) V DC (+) Power supply (+10-30 V DC). Analog input, channel 1. Input range: AIN 1 0-30 V DC. RS232 – RX Input for data receive through RS232 Output for data transmit through RS232 –... -
Page 6: Wiring Scheme
Wiring scheme Figure 3 FMB125 Wiring scheme Automotive relay FMB125 | Wiki Autogoods “130”... -
Page 7: Set Up Your Device
2. Insert SIM card as shown with PIN request disabled or read Wiki how to enter it later in Teltonika Configurator. Make sure that SIM card cut-off corner is pointing outward from slot. SIM slot 1 is closer to PCB, SIM slot 2 is the top one. -
Page 8: Pc Connection (Windows)
Main ▬ You will need to install USB drivers, see “How to install configuration can be performed via Teltonika Configurator USB drivers (Windows)” software. Get the latest Configurator version from here. - Page 9 Various Status window tabs display information about GNSS, GSM, I/O, Maintenance and etc. FMB125 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button.
-
Page 10: Quick Sms Configuration
After successful SMS configuration, FMB125 device will 2006 – Data sending protocol • synchronize time and update records to configured server. (0 – TCP, 1 – UDP) Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters. FMB125 | Wiki Autogoods “130”... -
Page 11: Mounting Recommendations
Mounting recommendations ▬ 3 A, 125 V external fuse shall be used. • Connecting ignition wire • Connecting wires ▬ Be sure to check if it is a real ignition wire i. e. power does ▬ Wires should be connected while the module is not plugged not disappear after starting the engine. -
Page 12: Led Indications
Table 3 Navigation LED indications BEHAVIOUR MEANING MODULE Permanently switched on GNSS signal is not received Name Teltonika TM2500 Technology GSM/GPRS/GNSS/BLUETOOTH Blinking every second Normal mode, GNSS is working GNSS is turned off because: GNSS Device is not working or Device is in... - Page 13 POWER GSM antenna Internal High Gain 2.0 Micro-USB Input voltage range 10-30 V DC with overvoltage protection LED indication 2 status LED lights Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh) Dual SIM Internal fuse 3 A, 125 V Memory 128MB internal flash memory At 12V <...
- Page 14 Trip Sleep, Online Deep Sleep, Deep Sleep, Sleep modes Ultra Deep Sleep FOTA Web, FOTA, Teltonika Configurator Configuration and firmware update (USB, Bluetooth), FMBT mobile application (Configuration) Configuration, Events, DOUT control, Debug GPRS commands Configuration, DOUT control, Debug Time Synchronization...
-
Page 15: Electrical Characteristics
Electrical characteristics Table 6 Electrical characteristics VALUE ANALOG INPUT CHARACTERISTIC DESCRIPTION MIN. TYP. MAX. UNIT Input voltage (Recommended Operating Conditions), Range 1 SUPPLY VOLTAGE Input resistance, Range 1 38.45 kΩ Supply Voltage (Recommended Operating Measurement error on 12V, Range 1 Conditions) Additional error on 12 V, Range 1 DIGITAL OUTPUT (OPEN DRAIN GRADE) -
Page 16: Safety Information
Safety information All wireless data transferring devices produce interference that may affect other devices which are placed nearby. This message contains information on how to operate FMB125 safely. By The device must be connected only by qualified following these requirements and recommendations, you will avoid personnel. -
Page 17: Certification And Approvals
This sign on the package means that all used electronic and electric equipment should not be mixed with general household waste. Hereby, Teltonika declare under our sole responsibility that the above described product is in conformity with the relevant Community harmonization: European Directive 2014/53/EU (RED). -
Page 18: Warranty
• Repaired • Replaced with a new product • Replaced with an equivalent repaired product fulfilling the same functionality • TELTONIKA can also repair products that are out of warranty at an agreed cost. FMB125 | Wiki Autogoods “130”...
