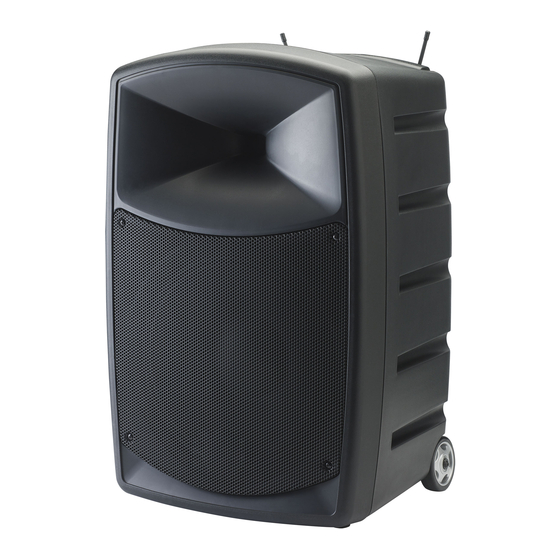

audiophony CR25A-COMBO F5 User Manual

Bluetooth sound system with usb/sd player & 2 handheld mic
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
F5
F8
USER GUIDE
H10789 / H11025 - Version 2 / 03-2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR25A-COMBO F5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for audiophony CR25A-COMBO F5

Summary of Contents for audiophony CR25A-COMBO F5

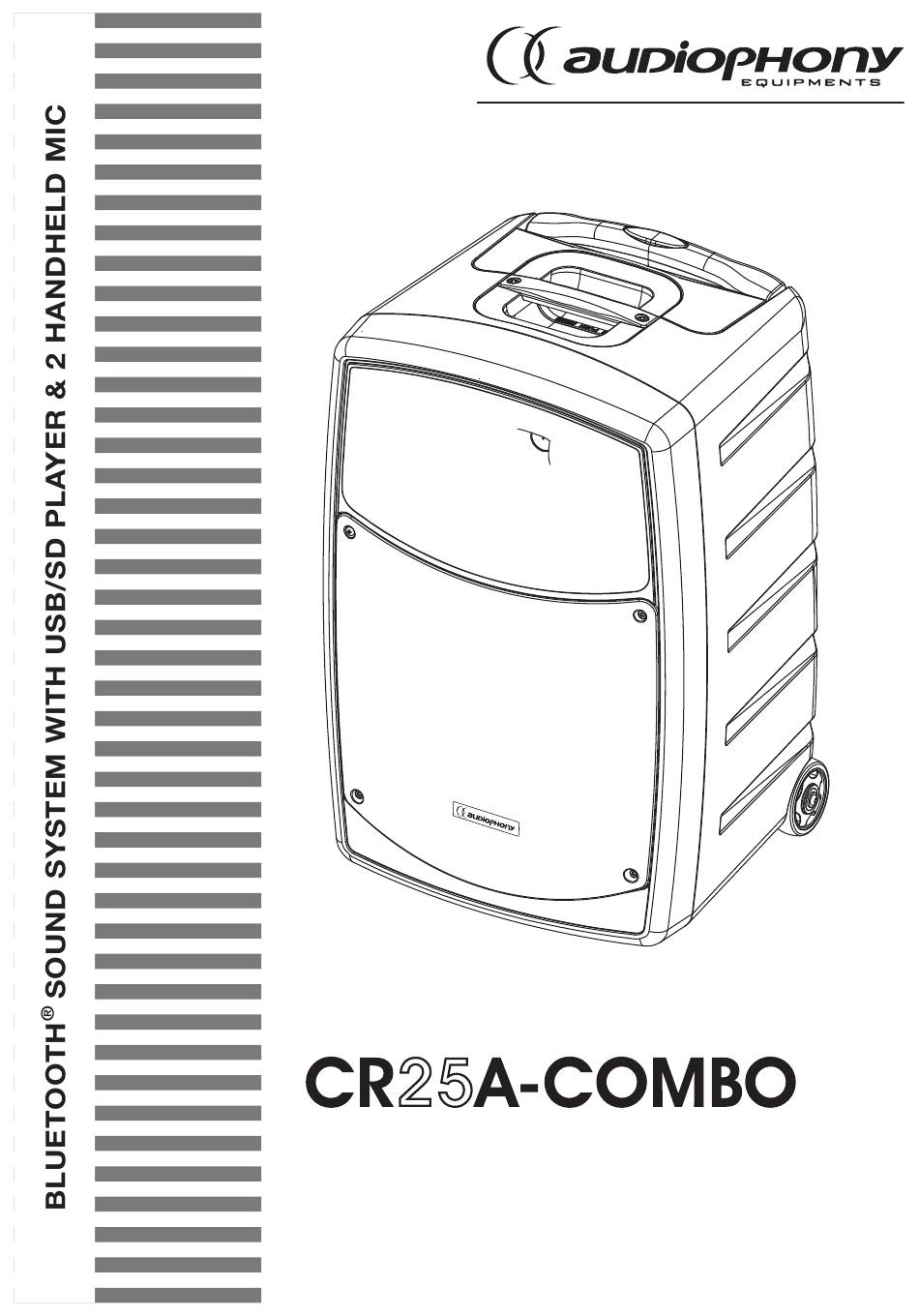

  • Page 1 USER GUIDE H10789 / H11025 - Version 2 / 03-2020...

  • Page 2: Safety Information

    English ® 250W B USB/SD CR25A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations.
  • Page 3 English ® 250W B USB/SD CR25A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation.
  • Page 4 English ® 250W B USB/SD CR25A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 2 - Introduction Thank you for purchasing the CR25A-COMBO. • All-in-one solution • High performance and sound quality • Media player and 2 UHF microphones The CR25A-COMBO is a powerful all-in-one sound system producing a high-quality sound output, adapted to any mobile installation.
  • Page 5 English ® 250W B USB/SD CR25A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 3 - The modules Back A - UHF receiving module B - USB/SD/Bluetooth module ® C - Mixing zone Master zone Power supply socket F - Battery compartment 1 - Integral transport handle 2 - Storage compartment for accessories...

  • Page 6: Description Of The Modules

    English ® 250W B USB/SD CR25A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 4 -Description of the modules 4 - 1 : UHF receiving module A1 - Volume control fader for the HF module. From OFF to full power (clockwise).
  • Page 7 English ® 250W B USB/SD CR25A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 4 - 3 : Remote control The infrared remote control of your reader allows you to remotely control CHANNEL PLAY/PAUSE some fonctions for your SD/USB or Bluetooth sources.
  • Page 8 English ® 250W B USB/SD CR25A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 4 - 5 : Master D1 - MASTER volume control fader. From minimum to maximum (clockwise). This fader affects the main volume output. D2 - POWER/LIMIT indicator. Indicates if the sound system is ON and the limiter activated.
  • Page 9 English ® 250W B USB/SD CR25A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC Note about batteries : Please only use 18V / 7Ah NP batteries with the following dimensions: (width x depth x height): 150x97x95 mm. Use a product with the same characteristics if you have to change the batteries. New batteries should be charged before being used.
  • Page 10 English ® 250W B USB/SD CR25A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 4 - 7 : Handheld microphone GAIN BATT 1 - Grille: Protects the capsule. 2 - Gain control: Allows you to configure the microphone sensitivity. The factory settings are optimal, but you can increase/decrease the sensitivity by turning it to the left (decreases) or right (increases).
  • Page 11 English ® 250W B USB/SD CR25A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 4 - 8 : Optional headband transmitter system: 1 - Jack 3.5 input to connect the microphone 2 - Input level selector. MIC is the standard configuration for the headband microphone.

  • Page 12: Power Management

    English ® 250W B USB/SD CR25A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 7 - Power management 7 - 1 : Safety precautions concerning the batteries 1 - This unit is equipped with two 18V / 7 Ah batteries for an average autonomy of 5 hours. 2 - The complete charging process approximately lasts 8 hours.
  • Page 13 English ® 250W B USB/SD CR25A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 9 - New UHF frequency plan The authorised frequency bands can thus be used "freely" by PMSE equipment, i.e. without the need for prior individual authorisation, but subject to compliance with the technical parameters laid down.

  • Page 14: Technical Specifications

    English ® 250W B USB/SD CR25A-COMBO - LUETOOH SOUND SYSTEM WITH PLAYER AND UHF HANDHELD MIC 9 - Technical specifications 2 channels XLR/TRS combo Line/Mic input 1 Stereo RCA channel Inputs 1 1/8" AUX channel 1 Bluetooth connexion 2 UHF microphones Outputs 1 TRS mix output Loudspeaker...
  • Page 15 That is why technical specifications and the products physical configuration might differ from the illustrations. Make sure you get the latest news and updates about the AUDIOPHONY ®...
