Page 1: Installation Instructions

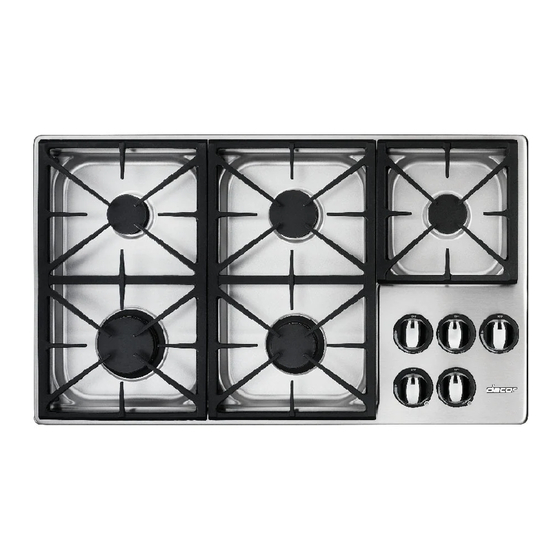

Installation Instructions Preference Renaissance Cooktop ® Models: RGC304, RGC365 Part No. 103778 Rev. F... -
Page 2: Table Of Contents
Phone: (877) 337-3226 (U.S.A. and Canada) Monday — Friday 6:00 . to 4:00 All specifications are subject to change without notice. Dacor assumes no liability for changes to specifications. Table of Contents Installation Instructions ... 7 Verify Package Contents ... 7 Installing the Cooktop ... -
Page 3: Important Safety Instructions
Use common sense and caution when installing, maintaining or oper- ating this or any other appliance. • Always contact the Dacor Customer Service Team about problems and conditions that you don’t under- stand. See Customer Service Information. Safety Symbols and Labels... -
Page 4: General Safety Precautions
• Do not use this appliance in combination with a sur- face (countertop) ventilation system. Dacor strongly recommends the installation of a range hood in con- junction with this appliance. •... -
Page 5: Installation Specifications
Installation Specifications Observe all governing codes and ordinances during planning and installation. Contact your local building department for further information. Product Dimensions All tolerances ±1/16” (±1.6 mm) unless otherwise noted. (762 mm) 19 1/2" * 21" (495 mm) (533 mm) (914 mm) 19 1/2"... -
Page 6: Electrical Requirements
Installation Specifications Electrical Requirements WARNING To prevent an electric shock hazard, the power supply must meet the specifications stated below. It is the own- er’s responsibility to make sure that the electrical service meets electrical requirements and that the electrical outlet has been properly installed by a licensed electrician. -
Page 7: Cabinet And Countertop Layout
• This appliance is to be used in conjunction with a suit- able vent hood or approved Dacor raised vent system. All tolerances +1/16” (+1.6 mm), -0 unless otherwise noted. Combustible overhead cabinets 13"... -
Page 8: Cutout Dimensions
Installation Specifications Cutout Dimensions All tolerances +1/16” -0 (+1.6 mm, 0) unless otherwise noted. Vertical combustible surface Countertop Cutout Dimensions Installation Type RGC304 with no raised vent RGC304 with ERV30 or PRV30 RGC304 with RV30 RGC365 with no raised vent RGC365 with ERV36 or PRV36 RGC365 with RV36 3/8”... -
Page 9: Installation Instructions
Installation Instructions Verify Package Contents • Hold down brackets (2) • Grates (2 for RGC304, 3 for RGC365) • Burner sets (4 for RGC304, 5 for RGC365) • Gas pressure regulator • Igniter cleaning brush • Stainless steel cleaner (stainless steel models only) Installing the Cooktop WARNING •... -
Page 10: Installing The Burner Components
Installation Instructions Installing the Burner Components WARNING • Never attempt to operate the cooktop with any of the burner parts removed. • Do not attempt to adjust the burner air mixture set- tings. All adjustments are preset at the factory. Grate Cap cover Burner head... -
Page 11: Verifying Proper Operation
If you need service, be sure to have the model and serial numbers available when you call. See inside cover for location. Dacor is not responsible for the cost of correcting problems caused by a faulty installation. Burner normally... -
Page 12: Installation Checklist
Proper installation is the responsibility of the homeowner. The importance of proper installation of your Dacor cooktop cannot be overemphasized. □ Is the electrical outlet for the cooktop grounded and located according to these instructions and in accor- dance with all applicable electrical codes? See page 4. -
Page 13: Wiring Diagrams
Wiring Diagrams... -
Page 14: Wiring Diagram
120V, 60Hz. POWER SUPPLY VERIFY PROPER OPERATION AFTER SERVICING NO SWITCH NO SWITCH NO SWITCH NO SWITCH NC SWITCH (OPEN POSITION) NEON SIMMER INDICATOR LIGHT NO SWITCH NC SWITCH (OPEN POSITION) NEON SIMMER INDICATOR LIGHT Wiring Diagrams CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. - Page 16 Dacor ● Phone: (800) 793-0093 ● FAX: (626) 403-3130 ● www.Dacor.com...
