Dacor RGC Series Planning Manual

Document # PGCI-008

Cutout Dimensions

IMPORTANT: Be careful to use the correct cutout diagram (on page 2/2) to determine the countertop dimensions. Carefully double check
all dimensions against the table below and the correct diagram before cutting the countertop.
Installation Type
RGC/SGM304 with
ERV30 or PRV30
RGC/SGM365 with
ERV36 or PRV36
RGC/SGM466 with
PRV46
* Total cutout depth, accommodates both the cooktop and raised vent
** IMPORTANT: Notch depth is included in total cutout depth (D). DO NOT add notch depth to total cutout depth (D).
• Observe all governing codes and ordinances during
planning and installation. Contact your local building
department for further information.
• All appliances must be installed in accordance with the
accompanying installation instructions.
All specifications subject to change without notice.
Install all appliances according to accompanying installation instructions.
CombINATIoN INsTALLATIoNs
rGC/sGm series Drop-In Gas Cooktop
with Erv/Prv series raised vent
Cutout
C (minimum)
Diagram
Figure 1 3/8"
(Square) (10 mm)
Figure 1 3/8"
(Square) (10 mm)
Figure 2 3/8"
(Notched) (10 mm)
WARNING
All tolerances +1/16" -0 (+1.6 mm, 0) unless otherwise noted
Countertop Dimensions
D E
22 1/2" * 27 3/4"
(572 mm) (686 mm)
22 1/2" * 33 5/8"
(572 mm) (854 mm)
22 1/2" * 44 3/4"
(572 mm) (1137 mm)
Stiffener

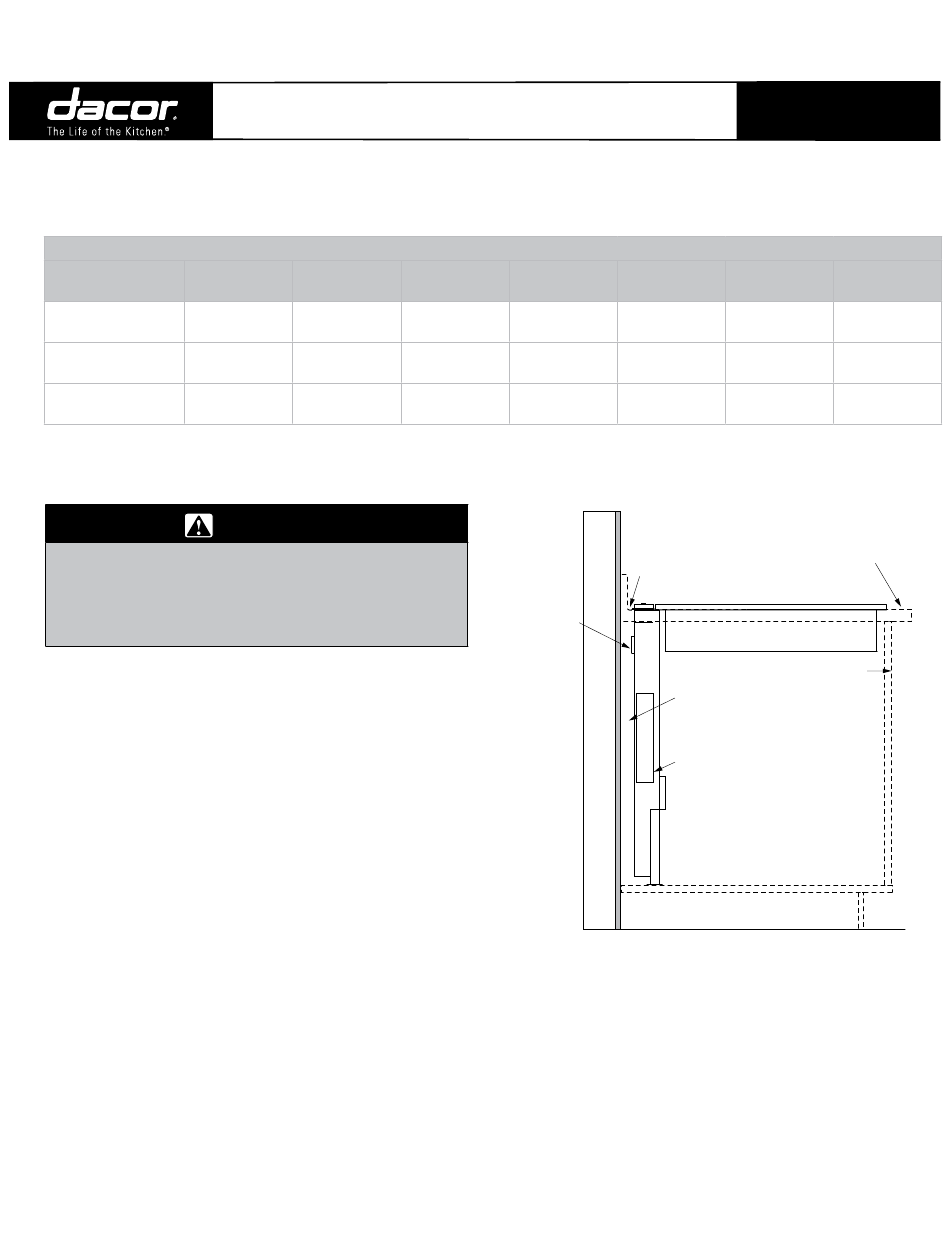

Side View - RGC/SGM Series Cooktop with
www.Dacor.com
Revised 05/07/09 Page 1/2
PLANNING
GUIDE
F G
NA NA
NA NA
43 1/2" 5/8"
(1105 mm) (16 mm)
3/8" Min. (10 mm)
flat countertop overhang
required behind cutout
SGM Series Cooktop
RGC or SGM series cooktop
Cabinet face
3/8" Min. (10 mm) space
behind raised vent
chassis to clear stiffener
ERV or PRV series raised
vent: Check raised vent
dimensions/specifications
to determine proper fit
Floor
ERV/PRV Series Raised Vent
Phone: (800) 793-0093
H
NA
NA
2 5/8" **
(67 mm)
Countertop
