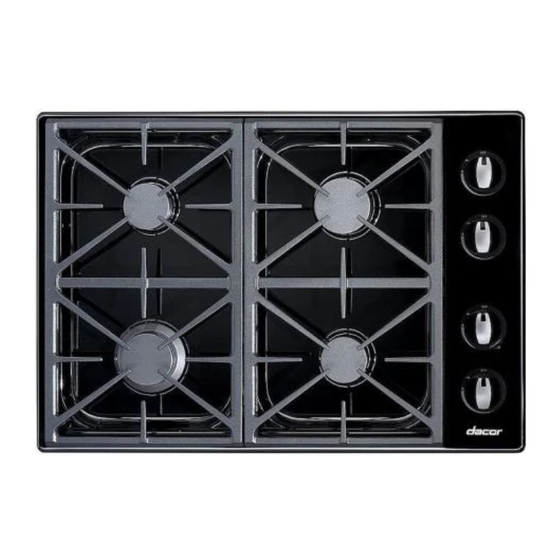

Preference renaissance cooktop
Hide thumbs
Also See for Preference RGC304:
- Use and care manual (17 pages) ,
- Installation instructions manual (16 pages) ,
- Planning manual (4 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Use and Care Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dacor Preference RGC304
Summary of Contents for Dacor Preference RGC304
- Page 1 Installation Instructions Preference Renaissance Cooktop ® Models: RGC304, RGC365 Part No. 103778 Rev. C...
-
Page 2: Table Of Contents
Label requirements. • It is attached to the chassis on the bottom of the unit. All specifications are subject to change without notice. Dacor assumes no liability for changes to specifications. © 2008 Dacor, all rights reserved. -
Page 3: Important Safety Instructions
From a neighbor’s phone, immediately call the gas ating this or any other appliance. supplier. Follow the gas supplier’s instructions. • Always contact the Dacor Customer Service Team • If you cannot contact the gas supplier, call the fire about problems and conditions that you don’t under- department. -
Page 4: General Safety Precautions
Do not use this appliance in combination with a sur- the cooktop. Do not allow clothing to come into con- face (countertop) ventilation system. Dacor strongly tact with the cooktop and surrounding areas during recommends the installation of a range hood in con- and immediately after use. -
Page 5: Electrical Requirements
Be certain to locate the electrical outlet so that the power cord may be easily disconnected if the unit needs service. • Do not plug the cooktop into a ground fault interrupter (GFI) electrical outlet. Front of unit RGC304 RGC304LP RGC365 RGC365LP Total Connected 0.25 Amps 0.25 Amps Load (0.03 kW) -
Page 6: Installation Specifications
Special cabinet and countertop dimensions may be required. Model B: Minimum • Follow the countertop manufacturer’s instructions RGC304 29” (737 mm) regarding the minimum corner radius, use of heat reflective tape, reinforcement of corners, etc. RGC365 35 ¼” (895 mm) •... -
Page 7: Product And Cutout Dimensions
(79 mm) the cooktop 27 1/2" (both sides) (699 mm) 19 7/8" (505 mm) 25" (635 mm) Product and Cutout Dimensions: Min. Model RGC304 2" (51 mm) Min. 4" (102 mm) 21" Chassis height (533 mm) 36" (914 mm) 1/4" (6 mm) Min. -
Page 8: Installation Instructions
See page 3. • Grates • Do not install or use the cooktop without the included • Burner sets (4 for model RGC304, 5 for model gas regulator installed. RGC365) • Ensure that the arrow on the regulator points in the •... -
Page 9: Installing The Burner Components
Installation Instructions Installing the Burner Components Remove the burner heads, burner rings, burner caps and grates from their shipping packages. Install the burners as shown. When installing the burn- WARNING er components, twist each piece back and forth until it drops completely into place. -
Page 10: Verifying Proper Operation
If the burner continues to spark after ignition without stopping, have a licensed electrician check the electrical outlet for proper grounding or reversed polarity. • Repeat the above burner ignition test. If the appliance still does not work, do not attempt to repair the appliance yourself. Contact the Dacor Customer Service Team at (800) 793-0093. -
Page 11: Installation Checklist
Proper installation is the responsibility of the homeowner. The importance of proper installation of your Dacor cooktop cannot be overemphasized. □ Is the electrical outlet for the cooktop grounded and... -
Page 12: Notes
Notes... - Page 13 Notes...
- Page 14 Notes...
- Page 16 Dacor ● 1440 Bridge Gate Drive, Diamond Bar, CA 91765 ● Tel: (800) 793-0093 ● FAX: (626) 403-3130 ● www.Dacor.com...
