Dacor Preference RGC304 Planning Manual

Revised
05/21/08
Vertical
combustible
surface
Rear
wall
3 1/8"
(79 mm)
19 7/8" (505 mm)
25" (635 mm)
Min.
1.
Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
2. This appliance must be installed in accordance with the
accompanying installation instructions.
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
RGC304, RGC365
30", 36" Wide, Preference™
Renaissance Gas Cooktops
30"
(762 mm)
2"
(51 mm) Min.
WARNING
Rear
wall
3 1/8"
(79 mm)
25" (635 mm)
Min.
4" (102 mm)
21"
Chassis height
(533 mm)
1/4" (6 mm) Min.
to combustibles
below chassis
7 1/2" (191 mm) Min.
to combustible
side wall above
the cooktop
27 1/2"
(both sides)
(699 mm)

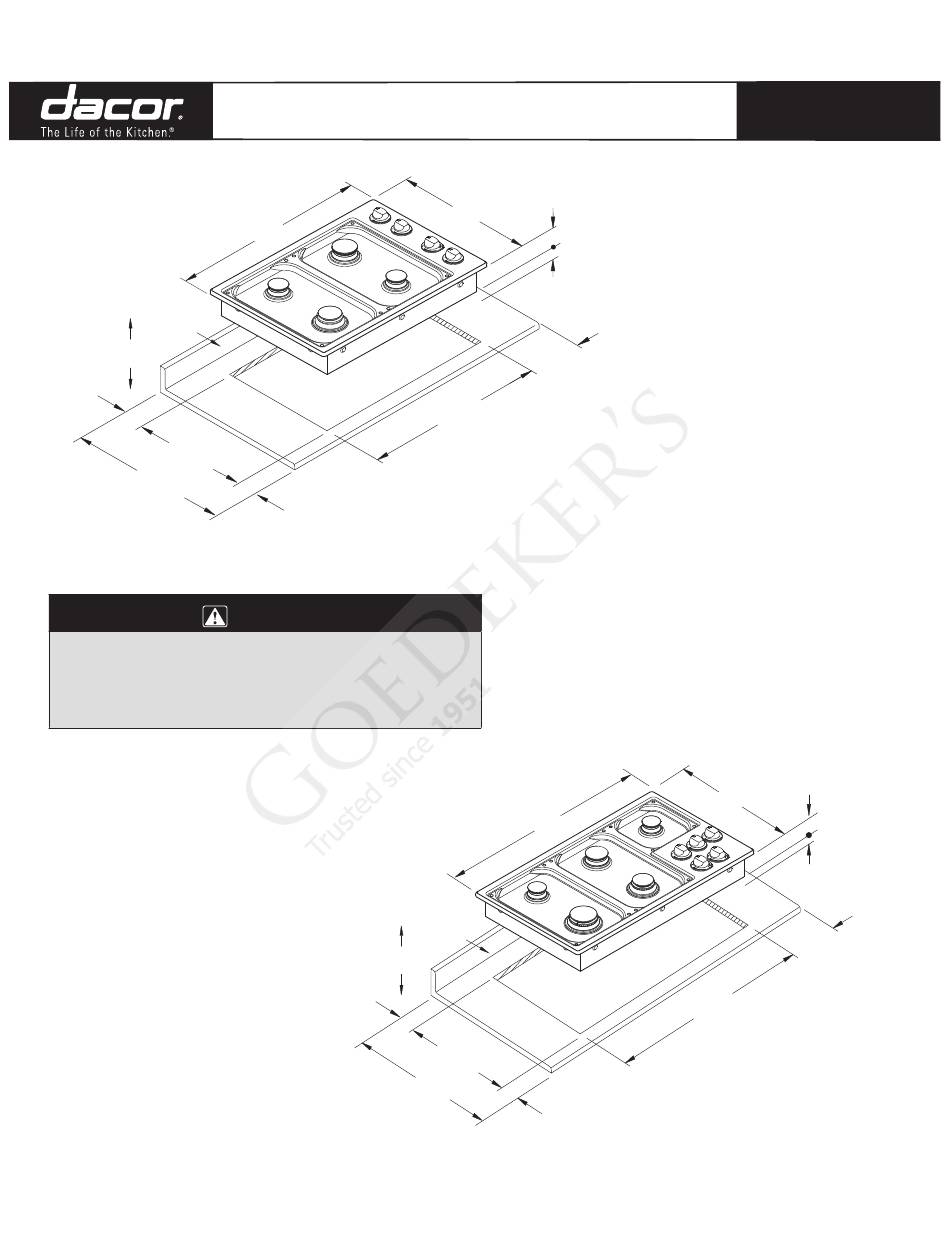

PRoDUCt AND CUtoUt DImENsIoNs:
moDEL RGC304
36"
(914 mm)
Vertical
combustible
Axis2 Axis2
surface
19 7/8"
(505 mm)
2"
(51 mm) Min.
Specifications are subject to change without notice.
See installation instructions for additional details.
PLANNING
GUIDE
1/2
All tolerances +1/16" -0 (+1.6 mm, 0) unless
otherwise noted.
4" (102 mm)
21"
Chassis height
(533 mm)
1/4" (6 mm) Min.
to combustibles
below chassis
7 1/2" (191 mm) Min.
to combustible
side wall above
the cooktop
(both sides)
33 3/4"
(857 mm)
PRoDUCt AND CUtoUt DImENsIoNs:
moDEL RGC365
4.11
