CONNOISSEUR SERIES
A10-801 • A10-803 • A10-801-CSA • A10-803-CSA
For questions regarding performance, assembly,
operation, parts, or returns, contact the experts
at MAGMA by calling (562) 627-0500
For questions regarding performance,
assembly, operation, parts, or returns,
contact the experts at MAGMA directly
7:00 a.m. - 4:00 p.m. Pacific Time Monday thru
1 - 800 - 86 - MAGMA
Friday or e-mail us at mail@MagmaProducts.com
IMPORTANT, read these instructions carefully before use. Familiarize yourself with the appliance
before connecting it to its gas container. Keep these instructions for future reference.
OWNER'S MANUAL
by calling TOLL FREE
7:00 a.m. - 5:00 p.m.
Pacific Time Monday thru Friday
or e-mail us at
magmamail@aol.com
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A10-803-CSA and is the answer not in the manual?

Questions and answers

Related Manuals for Magma A10-803-CSA

Summary of Contents for Magma A10-803-CSA

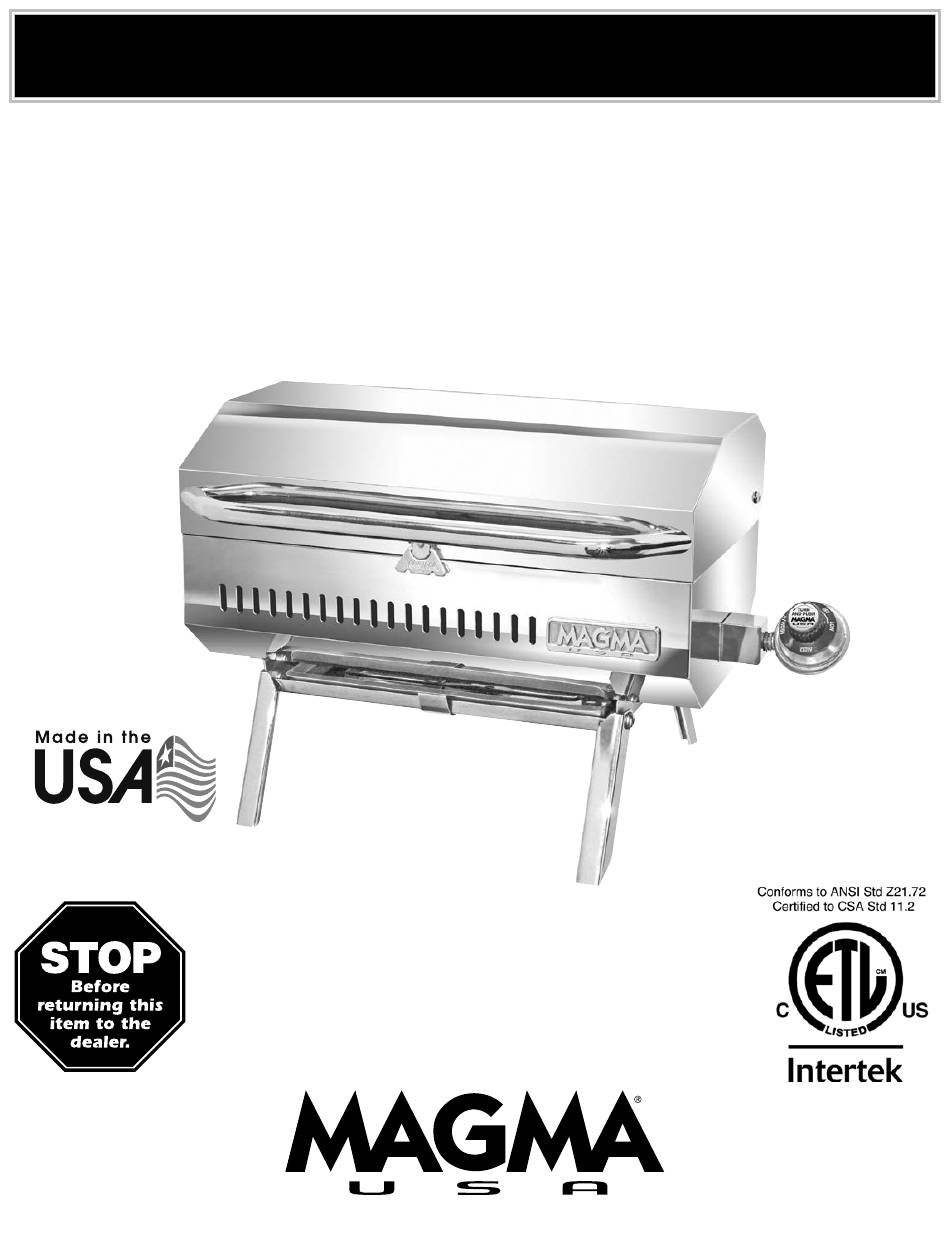

  • Page 1 OWNER’S MANUAL CONNOISSEUR SERIES ™ A10-801 • A10-803 • A10-801-CSA • A10-803-CSA For questions regarding performance, assembly, operation, parts, or returns, contact the experts at MAGMA by calling (562) 627-0500 For questions regarding performance, assembly, operation, parts, or returns, contact the experts at MAGMA directly 7:00 a.m.

  • Page 2: Important Safety Warnings

    • USE PROPANE GAS ONLY. FUEL STORAGE SHOULD BE IN COMPLIANCE WITH THE AMERICAN BOAT AND YACHT COUNCIL (ABYC) STANDARDS A-1 (9), MARINE LIQUIFIED PETROLEUM GAS (LPG) SYSTEMS. • FOR NATURAL GAS APPLICATION CONTACT MAGMA. • ALWAYS LIGHT GRILL WITH LID OPEN.
  • Page 3 MOUNT HARDWARE See Magma website for replacement part numbers Fasteners are supplied for both Single Mount & and valve applications. Dual Mount grill mounting options. See Magma MagmaProducts.com Catalog or Website for best mount selection. Single mount through-bolt applications Handle 4 Carriage bolts, washers &...
  • Page 4 MOUNT HARDWARE See Magma website for replacement part numbers Fasteners are supplied for Single Mount and valve applications. grill mounting options. See Magma Catalog MagmaProducts.com or Website for best mount selection. Handle Lid Lock Single mount through-bolt applications 4 Carriage bolts &...

  • Page 5: Operating Procedures

    OPERATE ONLY ON “LOW” WHEN LID IS CLOSED. ALWAYS OPERATE WITH GREASE TRAY IN PLACE. WARNING: Do not overheat grill. Magma Grills do not require pre-heating. Stainless Steel loses anti-corrosive characteristics when subjected to extreme heat. Most grilling is done on low temperature with the lid closed. If medium or high heat is required, grill with lid open.

  • Page 6: Disassembly And Reassembly

    DISASSEMBLY & RE-ASSEMBLY A - Lift radiant plate up & out of left slot. B - Remove by sliding it out of right slot. C - Remove burner retainer pin (see C) & remove burner. Inspect burner, remove any obstructions. CAUTION: WHEN REPLACING BURNER, CUT SLOTS IN BURNER MUST FACE DOWN.

  • Page 7: Maintenance

    Control Valve - All valves are set and tested at our factory. Do not attempt to adjust or disassemble the valve in any way. Call Magma if you suspect it is not adjusted properly. Clean valve with a cloth and remove any debris obstructing the orifice.

  • Page 8: Troubleshooting Guide

    • Magma on-board CNG (natural gas) valves allow Magma grills to be installed to an existing on-board, pre-regulated low pressure CNG (natural gas) system. • Use only Magma Type 4 Low Pressure CNG (natural gas) control valves. Visit our website at MagmaProducts.com to view valve application guide. See your local dealer for proper hose and fittings.

  • Page 9: Limited Warranty

    Discoloration or Corrosion caused by exposure to excessive heat or failure to properly clean and care for the stainless steel surfaces. If the product fails to operate due to a defect in materials or workmanship during the warranty period, the defective part will be repaired or replaced at Magma's option. If you wish to obtain performance under this limited warranty, you should contact Magma's Customer Service Department via telephone at (562) 627-0500, or via e-mail at mail@MagmaProducts.com, or via U.S.
