IMPORTANT, read these instructions carefully before use. Familiarize yourself with the appliance
before connecting it to its gas container. Keep these instructions for future reference.
OWNER'S MANUAL

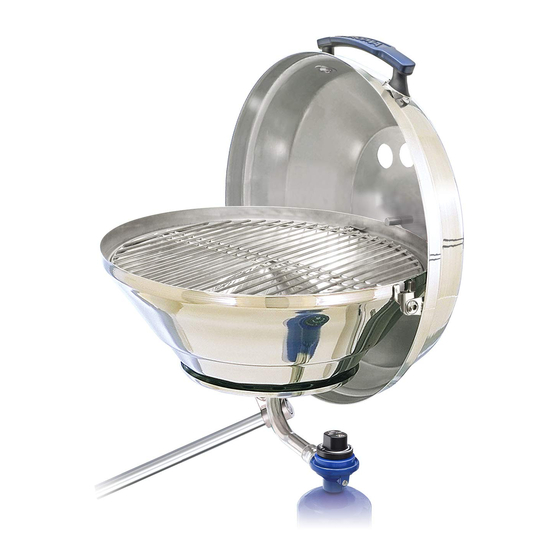

Stainless Steel Gas Grill
For questions regarding performance, assembly,
operation, parts, or returns, contact the experts
at MAGMA by calling (562) 627-0500 7:00
a.m. - 5:00 p.m. Pacific Time Monday thru Friday
or e-mail us at mail@MagmaProducts.com
U.S. PATENTS
4,788,962
5,330,154
5,413,090
D 292,163
Other Patents and Design
Patents Pending
Advertisement
Table of Contents
Related Manuals for Magma A10-205
Summary of Contents for Magma A10-205
- Page 1 Patents Pending For questions regarding performance, assembly, operation, parts, or returns, contact the experts at MAGMA by calling (562) 627-0500 7:00 a.m. - 5:00 p.m. Pacific Time Monday thru Friday or e-mail us at mail@MagmaProducts.com IMPORTANT, read these instructions carefully before use. Familiarize yourself with the appliance...
-
Page 2: Important Safety Warnings
Bowl Reg la or Type 1 or r ll L d & Bowl ® Each Magma Gas Grill is individually fire tested before it leaves the factory. For this reason, the burner on your grill may be slightly discolored. - Page 3 Flat Surface 1 Select and install appropriate Magma mount in your desired location. Prior to installing the grill, check that mount does not easily move with a reasonable force applied. 2 Next, decide if gas control valve will be easier to access from the center right side or center left side of grill.
- Page 4 Grease Tray Pins Grease Threaded Tray 5 With grill body tightly attached to L-Bracket, unthread burner 3 full revolutions only. CAUTION: DO NOT UNTHREAD MORE THEN 3 REVOLUTIONS, AS GRILL MAY FALL OVERBOARD. (5a & 5b) and rotate so lid (5a).
- Page 5 The valve was designed to be loose fitting in order to allow safe, easy installation and removal of the propane canister and so it easily swings without resistance to fit all applications. OFF/ Lock USING GRILL WITH ON-BOARD LPG (PROPANE) SYSTEMS Magma Type 3 Low Pressure LPG (Propane) Valves. Valve Application Guide www.
-
Page 6: Operating Procedures
OPERATING PROCEDURES WARNING: Do not overheat grill. Magma grills do not require pre-heating. Stainless Steel loses anti-corrosive characteristics when subjected to extreme heat. Most grilling is done on low temperature with the lid closed. -
Page 7: Maintenance
All valves are set and tested at our factory. Do not attempt to adjust or disassemble the valve. Call Magma if you suspect it is not adjusted properly. Clean valve with a cloth and remove any debris obstructing the orifice. -
Page 8: Replacement Parts
REPLACEMENT PARTS Cooking Grill Radiant Plate Burner Flame Deflector Complete Handle Assembly & Fasteners Lid w/hinge & fasteners (no handle) Bowl Grease Tray “L” Bracket & Clamp Assembly TurboVenturi Tube Please see www.MagmaProducts.com for correct part numbers for the Replacement Parts above Control Valve Regulator--Type 1... -
Page 9: Troubleshooting Guide
TROUBLE SHOOTING GUIDE Problem Possible Cause Possible Solution Burner will not No gas flow Check fuel level, replace canister or refill light cylinder Obstructed gas flow Clean burner, turbo venturi tube, and valve orifice. Remove debris/spider webs Flare-up Excessive cooking temperature Operate only on low when lid is closed Reduce flame level Leave lid open... -
Page 10: Limited Warranty
Discoloration or Corrosion caused by exposure to excessive heat or failure to properly clean and care for the stainless steel surfaces. If the product fails to operate due to a defect in materials or workmanship during the warranty period, the defective part will be repaired or replaced at Magma's option. If you wish to obtain performance under this limited warranty, you should contact Magma's Customer Service Department via telephone at (562) 627-0500, or via e-mail at mail@MagmaProd- ucts.com, or via U.S.
