Operating Instructions
COOKER AND OVEN
Contents
Operating Instructions,1
Description of the appliance-Overall view,2
Description of the appliance-Control Panel,3
Cooking modes,9
UA
-
-
,14
i
,22
,1
,2
,3
,18
,21
,22
Advertisement
Related Manuals for Indesit I5GG10F
Summary of Contents for Indesit I5GG10F
-
Page 1: Table Of Contents

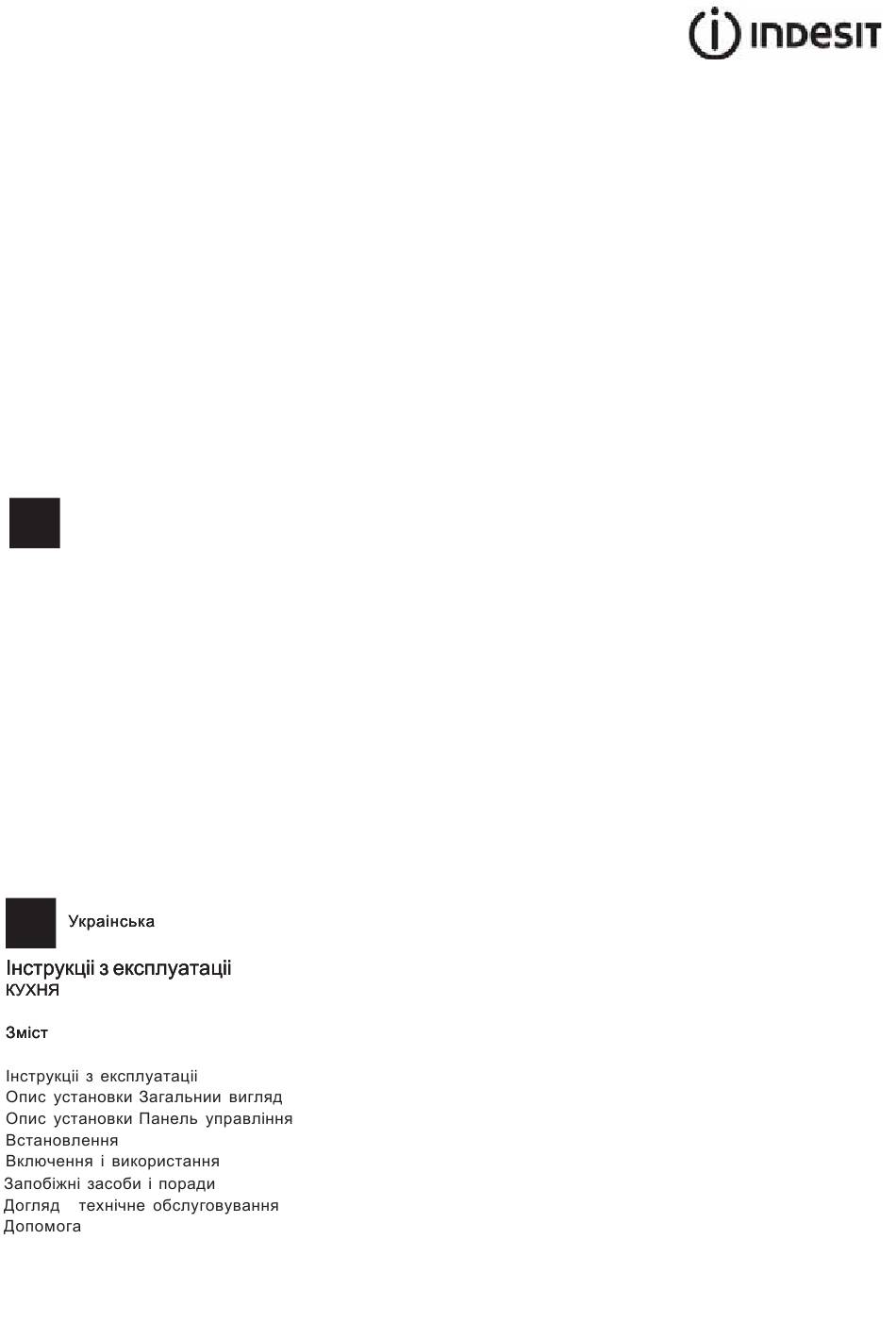

I5GG10F /UA I5GG0G /UA I5GG10G /UA I5GG0G.2 /UA I5GG1G.1 /UA I5GG1G.2 /UA English English English Operating Instructions COOKER AND OVEN Contents Operating Instructions,1 Description of the appliance-Overall view,2 Description of the appliance-Control Panel,3 Installation,4 Start-up and use,8 Cooking modes,9 Precautions and tips,11... - Page 2 Description of the appliance Overall view 1. Hob burner 2. Hob Grid 3.Containment surface for spills 4.Control panel 5..Sliding grill rack 6.DRIPPING pan 7.Adjustable foot 8.GUIDE RAILS for the sliding racks 9.position 5 10.position 4 11.position 3 12.position 2 13.position 1 14.Glass Cover (Only on certain models) 3.
- Page 3 Description of the appliance Control panel 1.GAS BURNER IGNITION button (Only on certain models) 2.TIMER knob (Only on certain models) 3.OVEN AND GRILL CONTROL knob 4.OVEN LIGHT / ROTISSERIE button (Only on certain models) 5.Hob BURNER control knob 2.Ñ...
-
Page 4: Installation,4
Installation ! Before operating your new appliance please read Disposing of combustion fumes this instruction booklet carefully. It contains important information concerning the safe installation The disposal of combustion fumes should be and operation of the appliance. guaranteed using a hood connected to a safe and ! Please keep these operating instructions for future efficient natural suction chimney, or using an electric reference. - Page 5 ! Once the appliance has been installed, the power • Do not position supply cable and the electrical socket must be blinds behind the HOOD easily accessible. cooker or less than 200 mm away from its Min. ! The cable must not be bent or compressed. sides.
- Page 6 3. While the burner is alight, quickly change the position of the knob from minimum to maximum and vice versa several times, checking that the flame is not extinguished. ! The hob burners do not require primary air adjustment. ! If one or more of these conditions is not fulfilled or Adapting the oven if the cooker must be installed according to the conditions listed for class 2 - subclass 1 appliances...
- Page 7 1/100 1/100 Nominal Reduced (mm) (mm) (mm) (mm) Fast 3.00 (Large)(R) Semi Fast 1.90 (Medium)(S) Auxiliary I5GG10F /UA 1.00 (Small)(A) I5GG0G /UA Oven 2.80 I5GG10G /UA Grill 2.30 I5GG0G.2 /UA I5GG1G.1 /UA Nominal (mbar) 28-30 Supply Minimum (mbar) I5GG1G.2 /UA...
-
Page 8: Start-Up And Use,8
Start-up and use Using the hob Practical advice on using the burners Lighting the burners For the burners to work in the most efficient way possible and to save on the amount of gas For each BURNER knob there is a complete ring consumed, it is recommended that only pans that showing the strength of the flame for the relevant have a lid and a flat base are used. - Page 9 ! If the flame is accidentally extinguished, switch off 3. Acitvate the function by pressing the TURNSPIT the burner and wait for at least 1 minute before button. attempting to relight the oven. Oven light Adjusting the temperature The light may be switched on at any moment by To set the desired cooking temperature, turn the pressing the OVEN LIGHT button.
- Page 10 Oven cooking advice table Cooking position of Temperature Cooking time Food to be cooked Pre-heating time (min) (Kg) shelves from bottom (°C) (min.) Pasta Lasagne 200-210 75-85 Cannelloni 50-60 Pasta bakes au gratin 50-60 Meat Veal 200-210 95-100 Chicken 210-220 90-100 Duck 100-110...
-
Page 11: Precautions And Tips,11
Precautions and tips ! This appliance has been designed and manufactured in • If the appliance breaks down, under no circumstances should you attempt to repair the appliance yourself. compliance with international safety standards. Repairs carried out by inexperienced persons may cause The following warnings are provided for safety reasons and injury or further malfunctioning of the appliance. -
Page 12: Care And Maintenance,12
Care and maintenance Switching the appliance off The cover If the cooker is fitted with a Disconnect your appliance from the electricity supply glass cover, this cover before carrying out any work on it. should be cleaned using lukewarm water. Do not use Cleaning the appliance abrasive products. - Page 13 WARNING! When reassembling the inner door Removing and fitting the oven door: glass insert the glass panel correctly so that the 1.Open the door text written on the panel is not reversed and 2.Make the hinge clamps of the oven door rotate can be easily legible.
- Page 14 . .). 50°C. 100%, – ’ , B) – (90°C). • • • , esso...
- Page 15 • HOOD Min. • ; 13 ’ NFC 15-100 ( • 50 C; • 50°C • • • • • 1500 • • Точка ГАРЯЧА ПОВЕРХНЯ кріплення • Точка Відсічний кріплення Відсічний кран кран Блок гнучки Блок гнучки труб труб...
- Page 16 ’ ’ ’ . ’ .
- Page 17 1275/2008 (Stand-by/ Off mode) “ ”. (p.c.s.*) 1/100 1/100 1/100 1/100 3.00 ) (R) 1.90 ) (S) I5GG10F /UA 1.00 ) (A) I5GG0G /UA 2.80 2.30 1 67 I5GG10G /UA 28-30 I5GG0G.2 /UA I5GG1G.1 /UA 15°C 1013 P.C.S. = 49,47 I5GG1G.2 /UA...
- Page 18 ø i 24 – 26 16 – 20 10 – 14 ’ ’ , “ ”. * (C), ’ ’ , ’ ’ . ’ , ’ , *(X) ’ , •. ’ ,...
- Page 19 (140 C) (250 C). ’ ,...
- Page 20 (°C) 200-210 75-85 50-60 50-60 ’ 200-210 95-100 210-220 90-100 100-110 70-80 70-80 100-105 180-200 45-50 180-200 45-55 180-200 45-50 210-220 20-25 25-35 40-45 50-55 40-45 15-20 20-30 15-20 70-80 70-80 ’ 40-45 25-30...
- Page 21 • ’ • • • • • • • • • 2002/96/CE (RAEE), • ’ • • • • • • . .) • • • • • • •...
- Page 22 ’ • • • ’ • • 230 , 25 , E 14. ’ • ’ ’ • • • (S/N) •...
- Page 23 Знімання та встановлення дверцят духовки Поставте скло назад. Відкрийте дверцята ПОПЕРЕДЖЕННЯ! Духовкою не можна користуватися, коли скло дверцят зняте! Поверніть затискачі на петлях дверцят повністю назад (див. фото) ПОПЕРЕДЖЕННЯ! При встановленні внутрішнього скла у дверцята слідкуйте за тим, щоб попереджувальний надпис...
