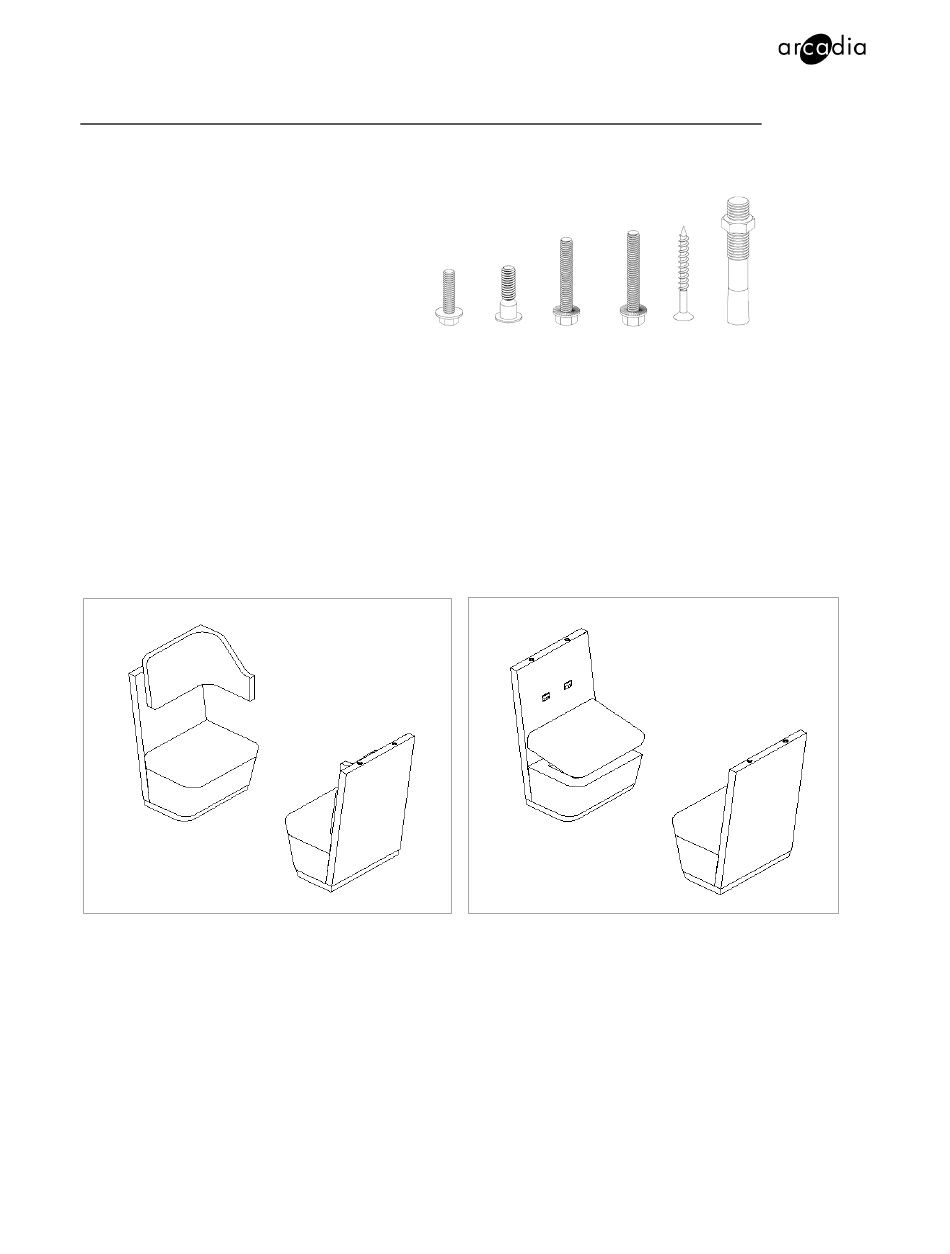

CO-OP ASSEMBLY INSTRUCTIONS – MODEL 6513-65TS
Hardware Included:
[A] ¼-20 x 1" hex bolt (7)
[B]
¼-20 x .75" decorative screw (4)
[C] 5/16-18 x 1.5" hex bolt (1)
[D] 5/16-18 x 2" hex bolt (4)
[E]
2" wood screws (6)
[F]
3/8 x 5" anchor bolts (4)
IMPORTANT – HARDWARE IS SPECIFIC FOR THE ASSEMBLY OF EACH COMPONENT. MAKE SURE THE
CORRECT ITEMS ARE USED AS DIRECTED AND IDENTIFIED BELOW.
Step 1:
Remove the back cushions on the seating units by gently applying upward force to release it from the
z-brackets that are holding it in place (Figure A).
Step 2:
With the back removed, slightly tilt the back of the seat cushion upwards, approximately 45-degrees,
and pull until it comes out (Figure B).
FIGURE A
5692 FRESCA DRIVE, LA PALMA, CA 90623 | 800.585.5957 | ARCADIACONTRACT.COM
[A]
[B]
[C]
FIGURE B
continued next page
[D]
[E]
[F]
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Arcadia 6513-65TS
Summary of Contents for Arcadia 6513-65TS
- Page 1 CO-OP ASSEMBLY INSTRUCTIONS – MODEL 6513-65TS Hardware Included: [A] ¼-20 x 1” hex bolt (7) ¼-20 x .75” decorative screw (4) [C] 5/16-18 x 1.5” hex bolt (1) [D] 5/16-18 x 2” hex bolt (4) 2” wood screws (6) 3/8 x 5” anchor bolts (4) IMPORTANT –...
- Page 2 Step 3: Once back and seat cushions are removed, face the two seating units approximately 42.75” away from each other (measurement is taken from the bottom front of both plinth bases). Align the wing brackets on the seating units with the wing brackets on the back panel. Secure the seats to the back panel by using (4) 5/16-18 x 2”...
- Page 3 Step 5: For veneer and laminate accent tiers only, secure the long accent tier to the small accent tiers by screwing in (6) 2” wood screws [E], three per side. Once that is complete, align the Velcro on the accent with the cover panel and secure in place (Figure E). Step 6: Assemble the canopy next.
- Page 4 Step 8: Securing the unit using anchor bolts or sandbags is optional. Skip to Step 9 if neither is being utilized. Make sure the accent tiers are perpendicular to the floor before starting. First, drill the floor using the predrilled holes as guides. Affix (4) 3/8 x 5” anchor bolts [F], two per seating unit (Figure H). If using sandbags, simply place them inside the seating units, two bags per side.
- Page 5 (7) ¼-20 x 1” hex bolts [A] (Figure H). FIGURE K [C] 5/16 x 1.5”, 1 FIGURE L [A] ¼-20 x 1” hex bolts, 7 If you require additional assistance, please contact Arcadia Client Services at 800.585.5957. 5692 FRESCA DRIVE, LA PALMA, CA 90623 | 800.585.5957 | ARCADIACONTRACT.COM...
