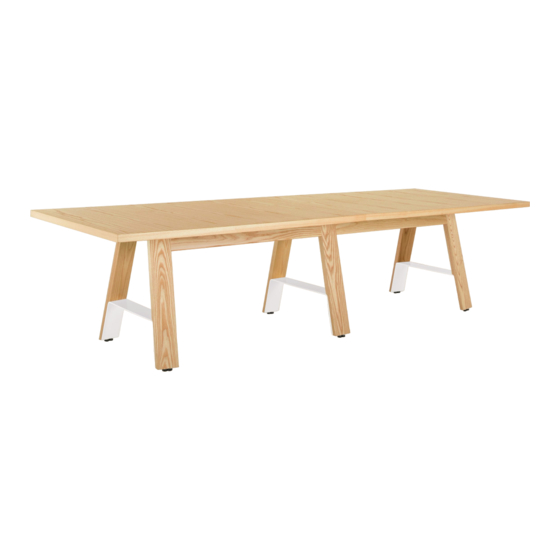

DELEN 2-PIECE TABLE ASSEMBLY INSTRUCTIONS
Step 1: Lay the tops facing down and align the brackets along the middle of the tops (Figure A).
Step 2: Use the bracket hardware to lock the two tops together (Figure B).
Step 3: Remove the top plates off the bases by removing all the screws (Figure C).
FIGURE A
FIGURE B
FIGURE C
5692 FRESCA DRIVE, LA PALMA, CA 90623 | 800.585.5957 | ARCADIACONTRACT.COM
continued next page
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Arcadia DELEN
Summary of Contents for Arcadia DELEN
- Page 1 DELEN 2-PIECE TABLE ASSEMBLY INSTRUCTIONS Step 1: Lay the tops facing down and align the brackets along the middle of the tops (Figure A). Step 2: Use the bracket hardware to lock the two tops together (Figure B). Step 3: Remove the top plates off the bases by removing all the screws (Figure C).
- Page 2 Step 6: Affix (4) 8 x .75” pan head wood screws to secure the apron L-brackets to the table top (Figure F). FIGURE D flat head FIGURE E pan head FIGURE F pan head If you require additional assistance, please contact Arcadia Client Services at 800.585.5957. 5692 FRESCA DRIVE, LA PALMA, CA 90623 | 800.585.5957 | ARCADIACONTRACT.COM...
