Arcadia 6510 Assembly Instructions

CO-OP ASSEMBLY INSTRUCTIONS – MODEL 6510

Hardware Included:

[A] 5/16-18 x 2" hex bolt (4)
[B] 3/5 x 5" anchor bolt (4)
IMPORTANT – HARDWARE IS SPECIFIC FOR THE ASSEMBLY OF EACH COMPONENT. MAKE SURE THE
CORRECT ITEMS ARE USED AS DIRECTED AND IDENTIFIED BELOW.

Step 1:

Remove the back cushions on the seating units by gently applying upward force to release it from the
z-brackets that are holding it in place (Figure A).

Step 2:

With the back removed, slightly tilt the back of the seat cushion upwards, approximately 45-degrees,
and pull until it comes out (Figure B).

Step 3:

Face the two seating units approximately 42.75" away from each other (measurement is taken from
bottom front of both plinth bases). Align the wing brackets on the seating units with the wing brackets
on the back panel. Secure the seats to the back panel by using (4) 5/16-18 x 2" hex bolts [A], two
per seat from the inside of the seat. Bolts go into the pre-inserted t-nuts in the back panel (Figure C).

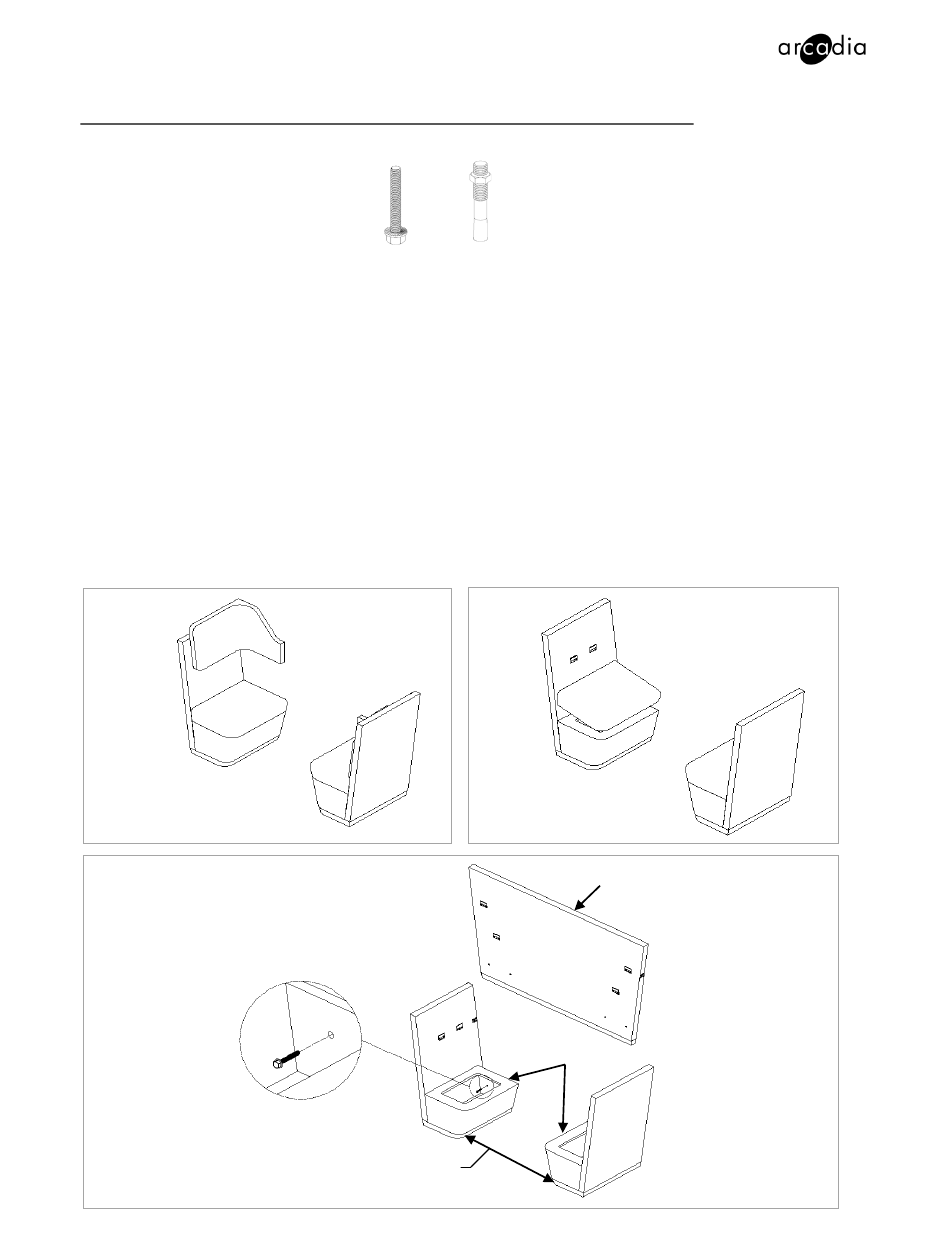

FIGURE A
FIGURE C
[A] 5/16-18 x 2" hex bolts, 4
5692 FRESCA DRIVE, LA PALMA, CA 90623 | 800.585.5957 | ARCADIACONTRACT.COM
[A] [B]
FIGURE B
dimension taken from here
back panel
seating units
