CO-OP ASSEMBLY INSTRUCTIONS – MODEL 6523 & 6523-65TL

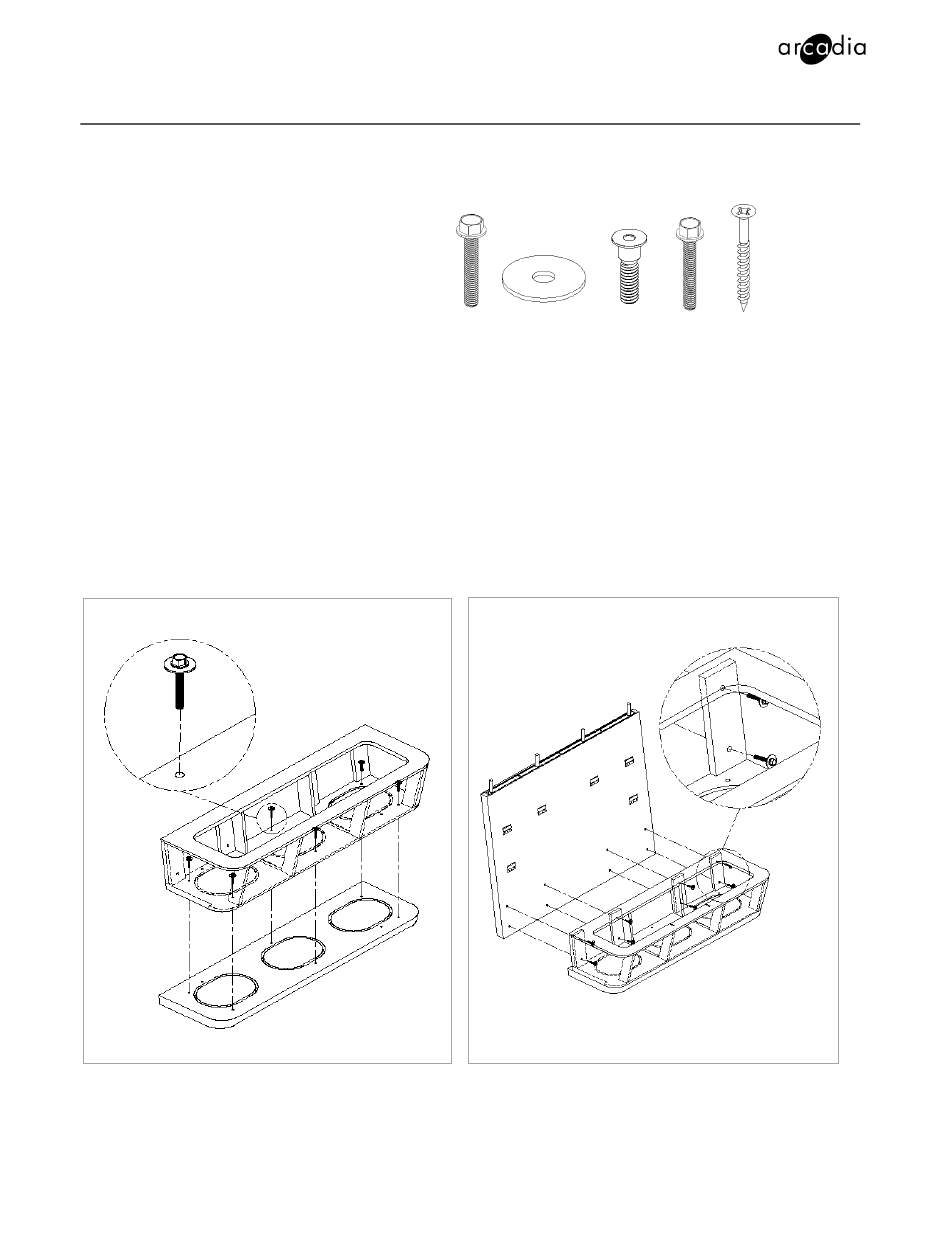

Hardware Included:
[A] 5/16-18 x 2" hex bolt (18)
[B]
Washer (18)
[C] ¼-20 x .75" decorative screw (4)
[D] ¼-20 x 2" hex bolt (4)
[E]
2" wood screws (8)
IMPORTANT – HARDWARE IS SPECIFIC FOR THE ASSEMBLY OF EACH COMPONENT. MAKE SURE THE
CORRECT ITEMS ARE USED AS DIRECTED AND IDENTIFIED BELOW.
Step 1:
Place the seating unit on top of the plinth base and properly secure using (6) 5/16-18 x 2" hex bolts
[A], though the inside of the seating unit, into pre-inserted t-nuts (Figure A).
Step 2:
Attach the back panel to the seat by placing it on top of the plinth base and properly securing with (8)
5/16-18 x 2" hex bolts [A] and washers [B], into the pre-inserted t-nuts (Figure B).
FIGURE A
5692 FRESCA DRIVE, LA PALMA, CA 90623 | 800.585.5957 | ARCADIACONTRACT.COM
[A] 5/16-18 x 2" hex bolts, 6
[E] Wood screws, 6
continued next page
[A]
[B]
[C]
FIGURE B
[A] 5/16-18 x 2" hex bolts, 8
[E] Wood screws, 8
[D]
[E]
Advertisement
Table of Contents
Related Manuals for Arcadia 6523
Summary of Contents for Arcadia 6523
- Page 1 CO-OP ASSEMBLY INSTRUCTIONS – MODEL 6523 & 6523-65TL Hardware Included: [A] 5/16-18 x 2” hex bolt (18) Washer (18) [C] ¼-20 x .75” decorative screw (4) [D] ¼-20 x 2” hex bolt (4) 2” wood screws (8) IMPORTANT – HARDWARE IS SPECIFIC FOR THE ASSEMBLY OF EACH COMPONENT. MAKE SURE THE CORRECT ITEMS ARE USED AS DIRECTED AND IDENTIFIED BELOW.
- Page 2 Step 3: Once the two seating units are built, face them approximately 41.5” away from each other (measurement is taken from bottom front of both plinths). Place the front panel in-between the two seating units and secure the bottom using (4) 5/16-18 x 2” Hex bolts [A], two per seat, from inside the seat.
- Page 3 Step 5: For veneer and laminate accent tiers only, secure the long accent tier to the small accent tiers by screwing in (6) 2” wood screws [E], three per side. Once that is complete, align the Velcro on the accent with the cover panel and secure in place (Figure E). Step 6: Assemble the canopy next.
- Page 4 Secure with (7) ¼-20 x 1” hex bolts [A] (Figure J) FIGURE I FIGURE H FIGURE J [A] ¼-20 x 1” hex bolts, 7 If you require additional assistance, please contact Arcadia Client Services at 800.585.5957. 5692 FRESCA DRIVE, LA PALMA, CA 90623 | 800.585.5957 | ARCADIACONTRACT.COM...
