CO-OP ASSEMBLY INSTRUCTIONS – MODEL 6510-65TS

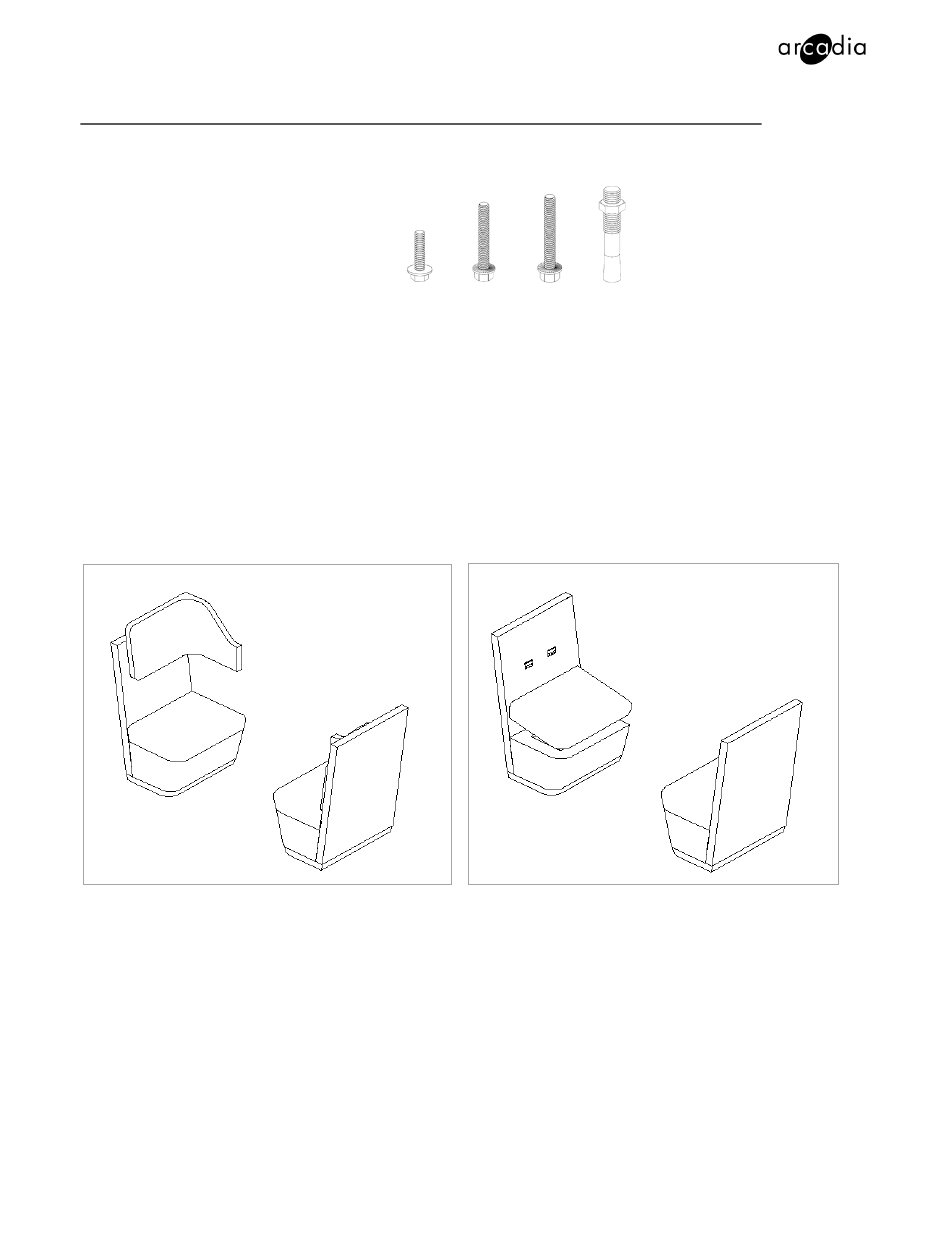

Hardware Included:

[A] ¼-20 x 1" hex bolt (7)

[B]

5/16-18 x 1.5" hex bolt (1)

[C] 5/16-18 x 2" hex bolt (4)

[D] 3/8 x 5" anchor bolts (4)

IMPORTANT – HARDWARE IS SPECIFIC FOR THE ASSEMBLY OF EACH COMPONENT. MAKE SURE THE

CORRECT ITEMS ARE USED AS DIRECTED AND IDENTIFIED BELOW.

Remove the back cushions on the seating units by gently applying upward force to release it from the

z-brackets that are holding it in place (Figure A).

With the back removed, slightly tilt the back of the seat cushion upwards, approximately 45-degrees,

and pull until it comes out (Figure B).

FIGURE A

5692 FRESCA DRIVE, LA PALMA, CA 90623 | 800.585.5957 | ARCADIACONTRACT.COM

[A]

[B]

[C]

FIGURE B

continued next page

[D]

Table of Contents

Do you have a question about the 6510-65TS and is the answer not in the manual?

Page 1 CO-OP ASSEMBLY INSTRUCTIONS – MODEL 6510-65TS Hardware Included: [A] ¼-20 x 1” hex bolt (7) 5/16-18 x 1.5” hex bolt (1) [C] 5/16-18 x 2” hex bolt (4) [D] 3/8 x 5” anchor bolts (4) IMPORTANT – HARDWARE IS SPECIFIC FOR THE ASSEMBLY OF EACH COMPONENT. MAKE SURE THE CORRECT ITEMS ARE USED AS DIRECTED AND IDENTIFIED BELOW.
Page 2 Step 3: Once back and seat cushions are removed, face the two seating units approximately 42.75” away from each other (measurement is taken from the bottom front of both plinth bases). Align the wing brackets on the seating units with the wing brackets on the back panel. Secure the seats to the back panel by using (4) 5/16-18 x 2”...
Page 3 FIGURE G [B] 5/16-18 x 1.5” hex bolt, 1 FIGURE H [A] ¼-20 x 1” hex bolt, 7 If you require additional assistance, please contact Arcadia Client Services at 800.585.5957. 5692 FRESCA DRIVE, LA PALMA, CA 90623 | 800.585.5957 | ARCADIACONTRACT.COM...
