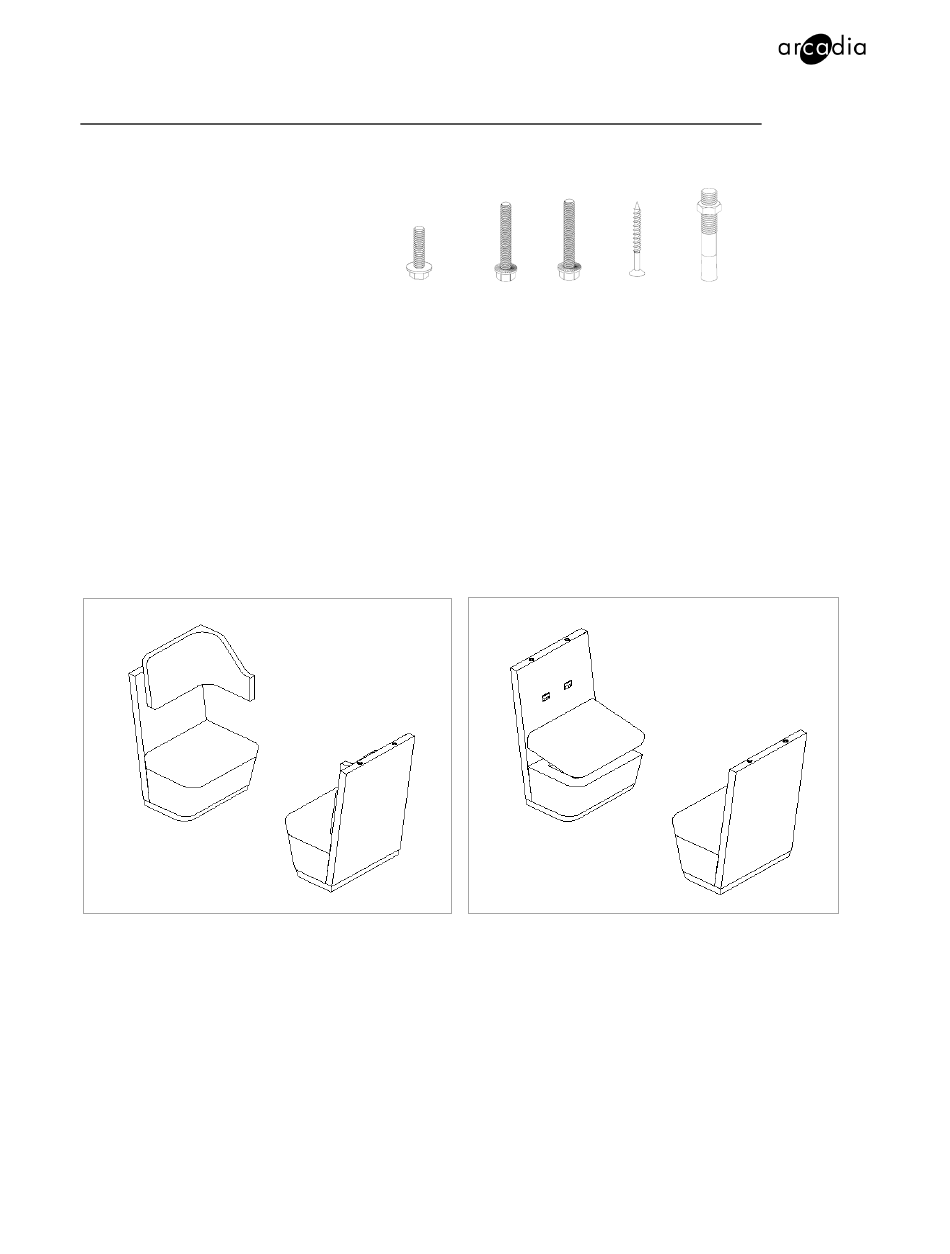

CO-OP ASSEMBLY INSTRUCTIONS – MODEL 6511-65TS
Hardware Included:
[A] ¼-20 x 1" hex bolt (7)
[B]
5/16-18 x 1.5" hex bolt (1)
[C] 5/16-18 x 2" hex bolt (4)
[D] 2" wood screws (6)
[E]
3/8 x 5" anchor bolts (4)
IMPORTANT – HARDWARE IS SPECIFIC FOR THE ASSEMBLY OF EACH COMPONENT. MAKE SURE THE
CORRECT ITEMS ARE USED AS DIRECTED AND IDENTIFIED BELOW.
Step 1:
Remove the back cushions on the seating units by gently applying upward force to release it from the
z-brackets that are holding it in place (Figure A).
Step 2:
With the back removed, slightly tilt the back of the seat cushion upwards, approximately 45-degrees,
and pull until it comes out (Figure B).
FIGURE A
5692 FRESCA DRIVE, LA PALMA, CA 90623 | 800.585.5957 | ARCADIACONTRACT.COM
[A]
[B]
[C]
FIGURE B
continued next page
[D]
[E]
Advertisement
Table of Contents
Related Manuals for Arcadia 6511-65TS
Summary of Contents for Arcadia 6511-65TS
- Page 1 CO-OP ASSEMBLY INSTRUCTIONS – MODEL 6511-65TS Hardware Included: [A] ¼-20 x 1” hex bolt (7) 5/16-18 x 1.5” hex bolt (1) [C] 5/16-18 x 2” hex bolt (4) [D] 2” wood screws (6) 3/8 x 5” anchor bolts (4) IMPORTANT – HARDWARE IS SPECIFIC FOR THE ASSEMBLY OF EACH COMPONENT. MAKE SURE THE CORRECT ITEMS ARE USED AS DIRECTED AND IDENTIFIED BELOW.
- Page 2 Step 3: Once back and seat cushions are removed, face the two seating units approximately 42.75” away from each other (measurement is taken from the bottom front of both plinth bases). Align the wing brackets on the seating units with the wing brackets on the back panel. Secure the seats to the back panel by using (4) 5/16-18 x 2”...
- Page 3 Step 5: For veneer and laminate accent tiers only, secure the long accent tier to the small accent tiers by screwing in (6) 2” wood screws [D], three per side. Once that is complete, align the Velcro on the accent with the cover panel and secure in place (Figure E). Step 6: Securing the unit using anchor bolts or sandbags is optional.
- Page 4 Step 7: To install the seats, tilt the seat slightly upward making sure the ¼-20 machine screws underneath the seat cushion slide into the notches. Push the seat cushion down until it is flat against the seating unit (Figure G). Step 8: To install the backs, align the four z-brackets on the back rest with the four z-brackets on the seating units and gently push down until the back is flat on the top of the seat (Figure H).
- Page 5 (7) ¼-20 x 1” hex bolts [A] (Figure J). FIGURE J [A] ¼-20 x 1” hex bolt, 7 If you require additional assistance, please contact Arcadia Client Services at 800.585.5957. 5692 FRESCA DRIVE, LA PALMA, CA 90623 | 800.585.5957 | ARCADIACONTRACT.COM...
