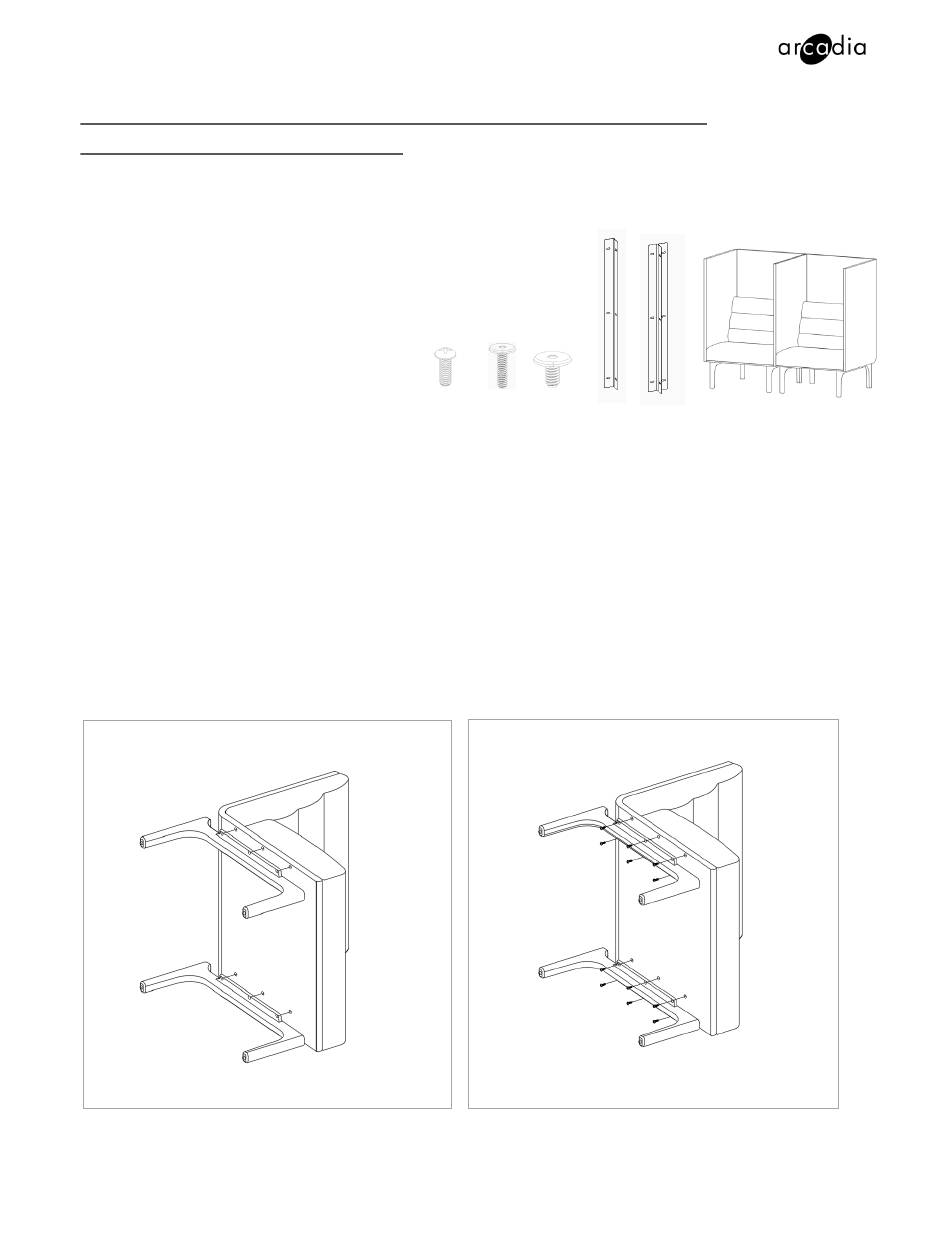

ISO CONFIGURATIONS WITH PANELS – T-BRACKET
ASSEMBLY INSTRUCTIONS
Hardware Included (quantity varies per configuration):
[A] ¼-20 x 1.25" pan head bolt (24)
[B]
¼-20 x 1.1875" flat head bolt (27)
[C] ¼-20 x .25" flat head bolt (21)
[D] Corner bracket
[E]
T-bracket
IMPORTANT – HARDWARE IS SPECIFIC FOR THE ASSEMBLY OF EACH COMPONENT. MAKE SURE THE
CORRECT ITEMS ARE USED AS DIRECTED AND IDENTIFIED BELOW.
**UNIT REQUIRES TWO PEOPLE FOR INSTALLATION**
*IF UNIT IS SHIPPED WITH LEGS PRE-INSTALLED, SKIP STEPS 1 & 2*
Step 1:
Gently place the unit on its side and locate the holes with pre-inserted t-nuts where the legs will attach
(Figure A).
Step 2:
Attach each leg by securing with (6) ¼-20 x 1.25" pan head bolts [A] into the pre-inserted t-nuts
(Figure B).
FIGURE A
Note: Upon completion of Step 2, return the unit to upright position by lifting unit. Do not tilt or lean unit to
upright position.
5692 FRESCA DRIVE, LA PALMA, CA 90623 | 800.585.5957 | ARCADIACONTRACT.COM
[A]
[B]
[C]
FIGURE B
[A] ¼-20 x 1.25" pan head bolt, qty. 12
continued on next page
[D]
[E]
Advertisement
Table of Contents
Related Manuals for Arcadia ISO
Summary of Contents for Arcadia ISO
- Page 1 ISO CONFIGURATIONS WITH PANELS – T-BRACKET ASSEMBLY INSTRUCTIONS Hardware Included (quantity varies per configuration): [A] ¼-20 x 1.25” pan head bolt (24) ¼-20 x 1.1875” flat head bolt (27) [C] ¼-20 x .25” flat head bolt (21) [D] Corner bracket T-bracket IMPORTANT –...
- Page 2 Step 3: Open the privacy panel to reveal the attachment holes. Starting with the back of the chair, align the holes with the pre-inserted t-nuts and secure with (4) ¼-20 x 1.1875” flat head bolt [B]. Follow with side panels using (5) ¼-20 x 1.1875” flat head bolt [B] per side (Figure C). Step 4: Align and secure the Corner bracket [D] to the right side (from the rear view) with an Allen wrench and (3) ¼-20 x .25”...
- Page 3 [B] ¼-20 x 1.1875” flat head bolt, qty. 11 [C] ¼-20 x .25” flat head bolt, qty. 6 FIGURE I If you require additional assistance, please contact Arcadia Client Services at 800.585.5957. 5692 FRESCA DRIVE, LA PALMA, CA 90623 | 800.585.5957 | ARCADIACONTRACT.COM...
