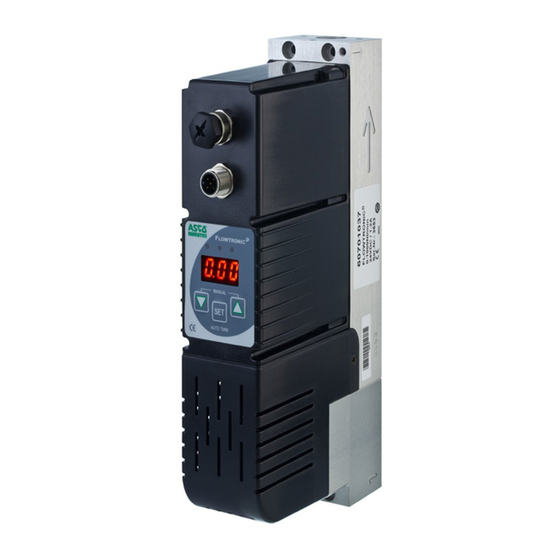

- Page 1 2-Port Flow Control Valve with Digital Electronics Series 607 LOWTRONIC Installation manual DP-IM14156-GB.R2...
-
Page 2: Table Of Contents
The information in this manual is subject to change without notice. In no event shall ASCO/JOUCOMATIC be liable for technical or editorial errors or omissions. Neither is any liability assumed for accidental or consequential damages arising out of or in connection with the supply or use of the information contained herein. -
Page 3: Description
LOWTRONIC An auto-tune function and the ASCO FlowCom PC software provide easy start-up. Diagnosis of the F LOWTRONIC made possible over the integrated LEDs and the ASCO FlowCom PC software ASCO FlowCom. The F LOWTRONIC available with or without LED display and operating buttons. -
Page 4: Manual Setpoint Adjustment
INSTALLATION MANUAL SETPOINT ADJUSTMENT (HAND) After an interruption in the power supply, press both arrow buttons located beneath the display during power up to switch to the manual mode. The operating mode is indicated by the letters “H n d” in the display. The "H n d"... -
Page 5: Electrical Connection
INSTALLATION ELECTRICAL CONNECTION 5-pin M12 female connector (view on soldered side) M12 connector Valve Control +24V supply voltage Supply voltage GND 250 Ohm at current setpoint Setpoint 0-10V (or 0-20 / 4-20mA) Setpoint GND (only for 6-wire cable) Analog output: Feedback Only at current output: 0-10V... -
Page 6: Pneumatic Connection
INSTALLATION PNEUMATIC CONNECTION The air flow is from port 1 in the direction of the arrow. Pressure supply Outlet Inch screw connections (pipe threads) must be used. Each screw connections must be lined with a fitting synthetic sealing disc. Do not use Teflon sealing tape or hemp as they may get inside the valve and damage it. The diameter of the pneumatic lines must be adjusted to the nominal diameter of the valve. -
Page 7: Technical Characteristics
1. Press and hold the AUTOTUNE button, switch the supply voltage off and on again, and release the AUTOTUNE but- ton. 2. Over the ASCO-FlowCom operating software. 3. If the appropriate option has been selected over the operating software, AUTOTUNE can be activated over the digital input (M12, Pin 5). -
Page 8: Accessories
INSTALLATION ACCESSORIES Description CODES 881 00 895 software "ASCO-FlowCom-Light" - CD-ROM LOWTRONIC software "ASCO-FlowCom-Expert" - CD-ROM 881 00 896 LOWTRONIC G 1/2" adapter 833-943470 833-943471 G 3/8" adapter 881 00 897 USB cable for connection of F to PC LOWTRONIC...
