Making British gardens great

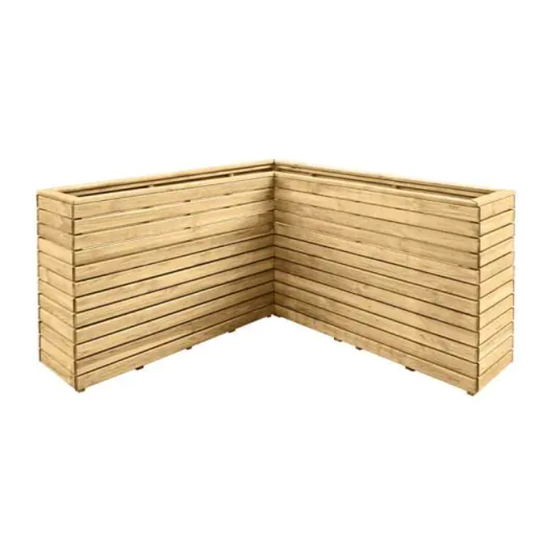

TALL CORNER LINEAR PLANTER
INSTRUCTIONS (1600x1600mm)
We recommend using the following tools (not supplied):
Pozidrive
Tape Measure
Screwdriver
PLEASE KEEP PLASTIC BAGS AND SMALL PARTS AWAY FROM CHILDREN
1
BACK PANEL (1580mm)
Position the Back Panels in your desired location. Begin
at the back corner and secure the Back Panels together
as shown above.
IMPORTANT
Assembly requires 2+
adults.
Missing something or need more information?
Call our aftersales team on
0333 321 3142
Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB
Drill & 2mm
Spirit Level
Drill Bit
BACK PANEL (1600mm)
FIXING PACK CODE: CORNLINPL160FP
2
BACK PANEL (1600mm)
Secure the first End Panel (360mm) to the Back Panel
(1600mm).
REMINDER
Always pre-drill before
screwing.
Visit our website for spare instructions and
more information
www.forestgarden.co.uk
ISSUE: 0121
FIXING PACK CONTAINS:
END PANEL (360mm)
Advertisement
Related Manuals for Forest CORNLINPL160
Summary of Contents for Forest CORNLINPL160
- Page 1 Always pre-drill before adults. screwing. Missing something or need more information? Visit our website for spare instructions and Call our aftersales team on more information 0333 321 3142 www.forestgarden.co.uk Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB...
- Page 2 FRONT PANEL (1200mm) FRONT PANEL (1248mm) SCREWS Secure the first Front Panel (1248mm) to the End Secure the first Front Panel (1248mm) to the second Panel (360mm), using 50mm screws. Front Panel (1200mm), using 70mm screws. SHORT BASE (1200mm) LONG BASE (1560mm) Insert the Short Base (1200mm) into the space Insert the Long Base (1560mm) into the space provided.
- Page 3 TOP TIP - MARK OUT WHERE EACH BATTEN IS LOCATED TO ENSURE YOU SCREW DIRECTLY INTO THEM ONCE THE BASE SITS ON TOP. SCREWS The Long Base (1560mm) will sit on top of the battens Fix the Short Base (1200mm) into place, by screwing provided.
- Page 4 (The parts do not have codes on them. They are listed below should you need to order one.) The components provided may be heavy. Please lift with caution and with a minimum of 2 people. Tall Corner Linear Planter 1600x1600mm (CORNLINPL160) Label...
