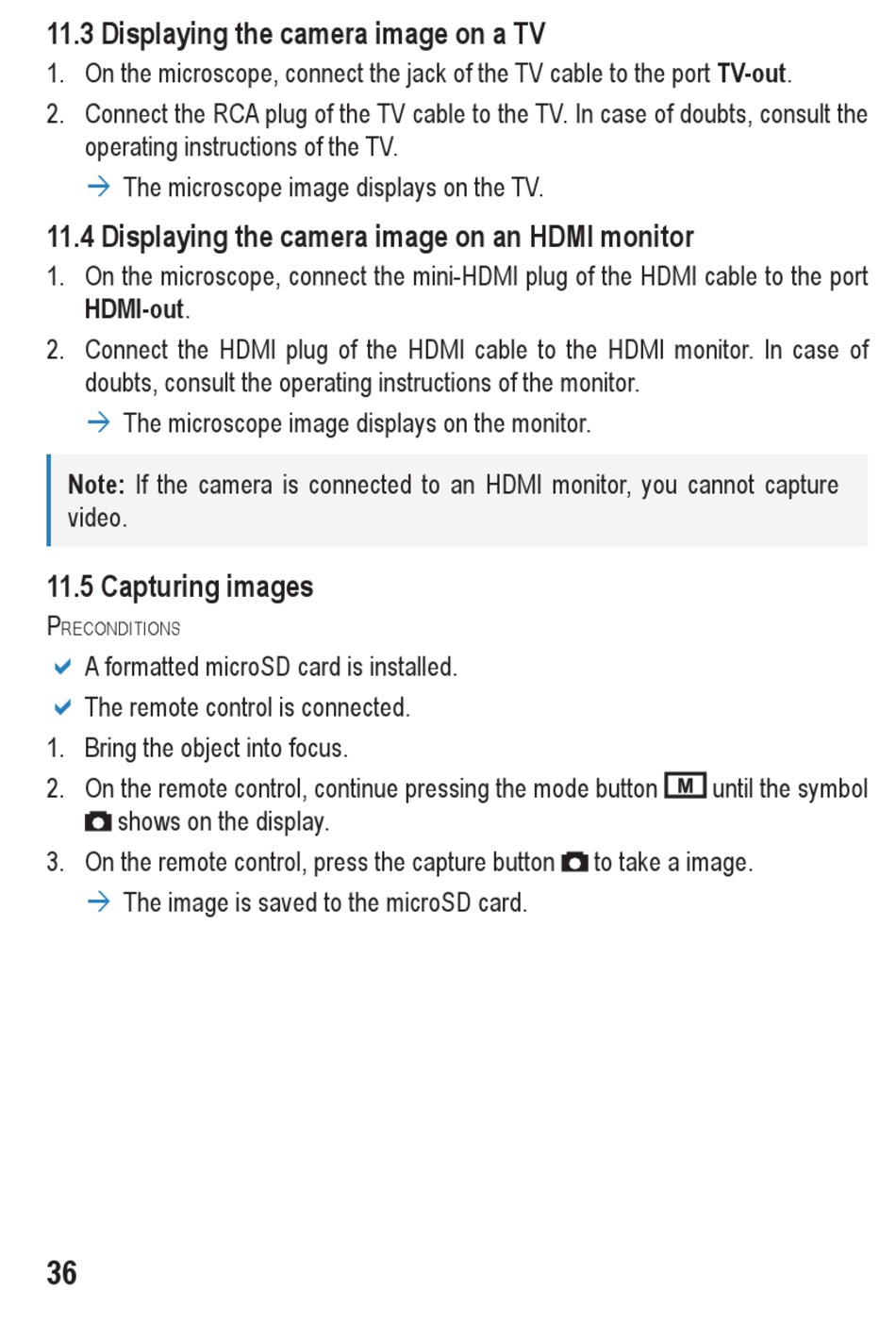

11.3 Displaying the camera image on a TV

1. On the microscope, connect the jack of the TV cable to the port TV-out.
2. Connect the RCA plug of the TV cable to the TV. In case of doubts, consult the
operating instructions of the TV.
The microscope image displays on the TV.
Æ

11.4 Displaying the camera image on an HDMI monitor

1. On the microscope, connect the mini-HDMI plug of the HDMI cable to the port
HDMI-out.
2. Connect the HDMI plug of the HDMI cable to the HDMI monitor. In case of
doubts, consult the operating instructions of the monitor.
The microscope image displays on the monitor.
Æ
Note: If the camera is connected to an HDMI monitor, you cannot capture
video.

11.5 Capturing images

P
reconditions
A formatted microSD card is installed.
D
The remote control is connected.
D
1. Bring the object into focus.
2. On the remote control, continue pressing the mode button
shows on the display.
3. On the remote control, press the capture button
The image is saved to the microSD card.
Æ
36
until the symbol
to take a image.
