11 Operation

11.1 Controlling the light

Use the light dial

11.2 Focusing the microscope

A

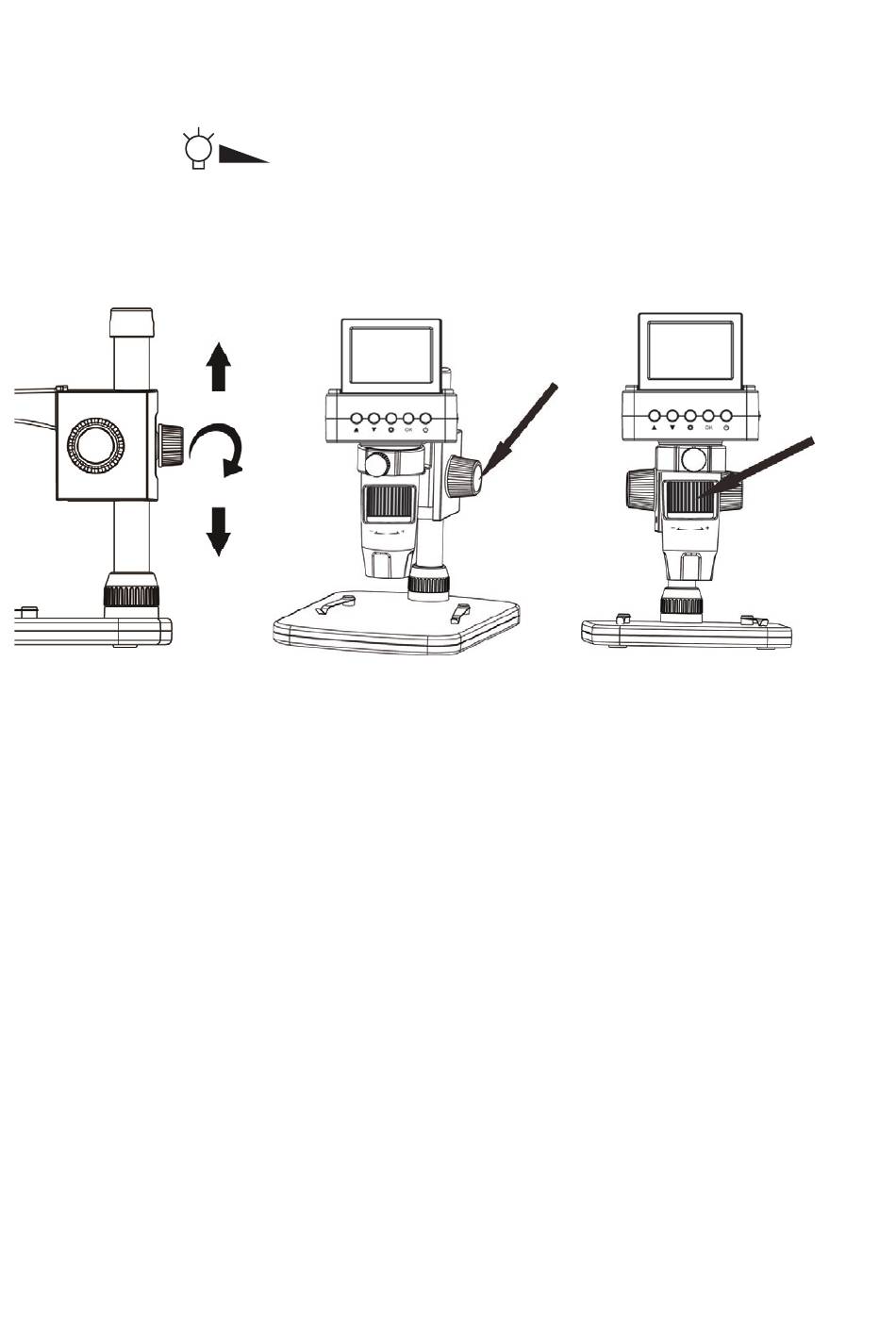

Figure 2: Focus adjustment
1. Place the object to be examined onto the base.
2. (If necessary) Secure the object with the clips on the base.
3. Use the height adjuster to coarsely adjust the distance between the microscope
and the object (see A).
4. Fine-adjust the distance with the height dial DOWN/UP. Set the friction with the dial
UNLOCK/LOCK (see B).
5. Adjust the focus dial +/- to bring the image into sharp focus (see C).
Using the digital zoom
1
On the remote control, use the zoom button +/– to digitally zoom in and out.
on the microscope to adjust the brightness.
B
C
35
