SERVICE MANUAL
For Parts or Technical Assistance
USA (800) 445-3720 Canada (800) 267-2337
International: Contact your distributor.

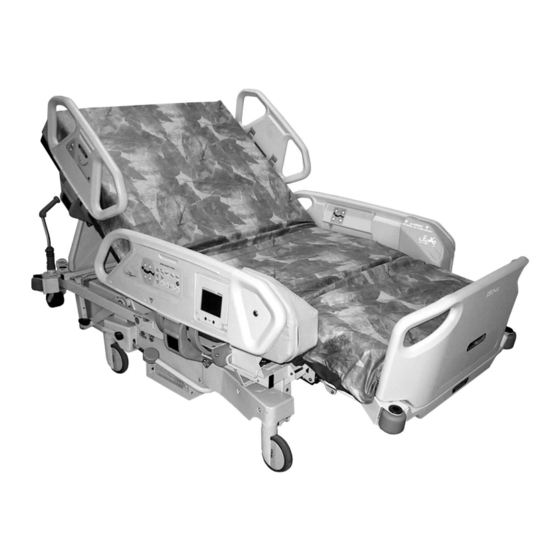

TotalCare®
Bariatric
Bed
From Hill-Rom
Product No. P1830A
man299ra
