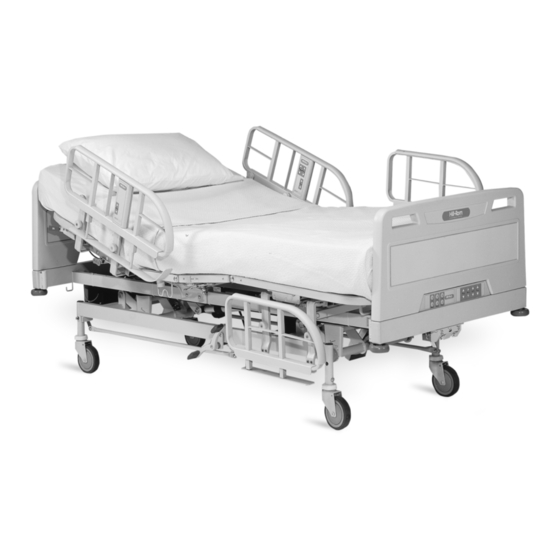

SERVICE MANUAL
For Parts or Technical Assistance
USA 1-812-934-1796 Canada (800) 267-2337
International: Contact your distributor.
Basic Care™
Bed
From Hill-Rom
Product No. P1440/P1441
man336

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Basic Care P1440 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hill-Rom Basic Care P1440

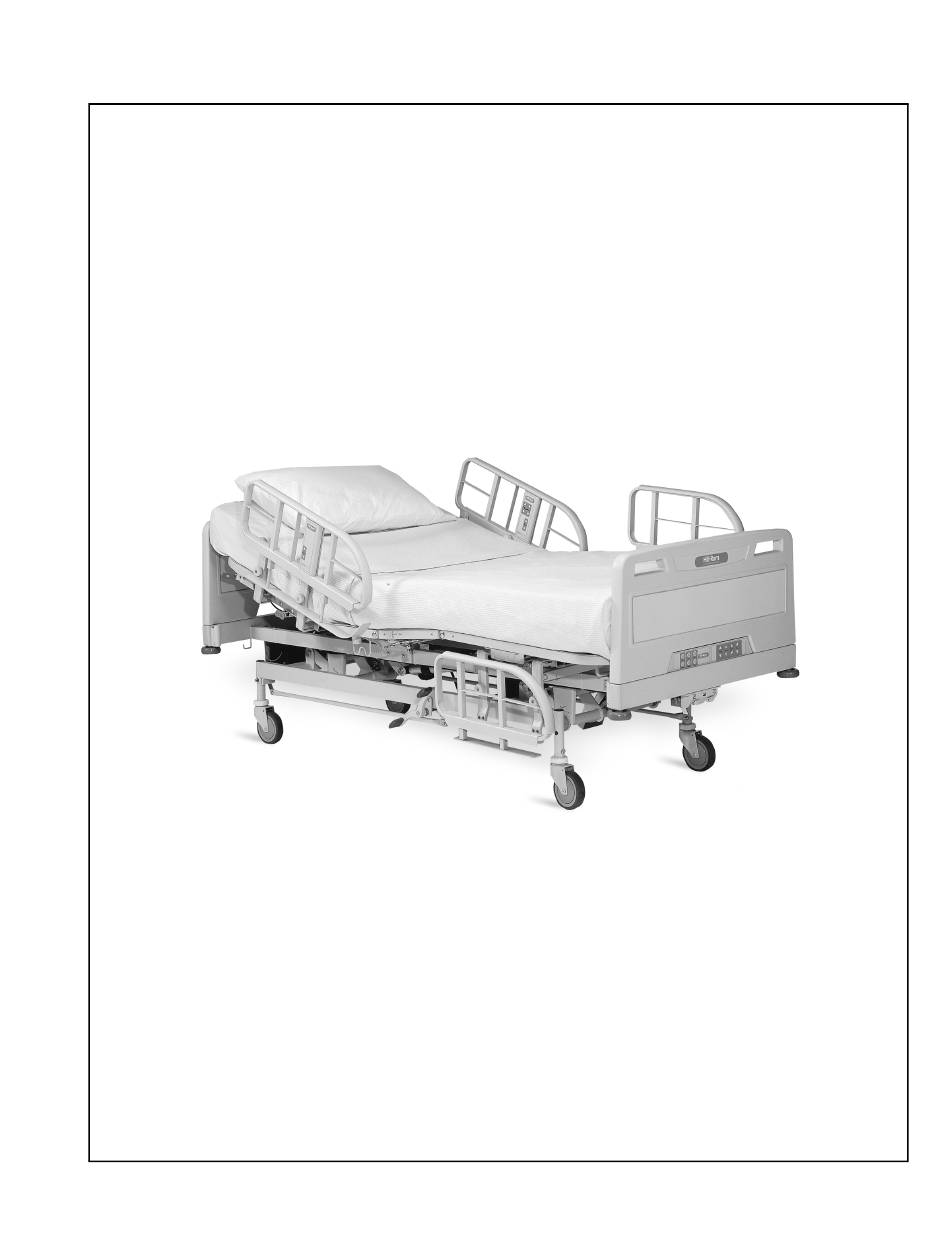

  • Page 1 SERVICE MANUAL Basic Care™ From Hill-Rom Product No. P1440/P1441 For Parts or Technical Assistance man336 USA 1-812-934-1796 Canada (800) 267-2337 International: Contact your distributor.
